F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(1111-1901)IDN ; (1111-1904)MA,SA,TH

Click highlighted areas on diagram

SWITCH

diagram 84330 84330 84790 84870A 84986 85500 85530 85533 85535E 88660C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F65#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F65#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ071

F653..STD;F653..MID..GEN;F654..(SPO,STD)..(GCC,PHL,TH);F654..(MID,STD)..(GEN,MA,MXC,PHL,SA)

 1
84986 - SWITCH, VEHICLE STABILITY CONTROL
84986-BZ040

F65#..SA

 1
84986-BZ030

F65#..GCC,SA

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F65#

 2
85530-BZ080

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ040

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535-BZ071

F65#

 1
88660C - SWITCH ASSY, COOLER CONTROL
84660-B4030

F653..LO..GEN;F65#..(MID,STD)..(GCC,GEN,MXC,SA)

 1

ILLUST NO. 1 OF 6(1508- )GCC,GEN,MA,MXC,SA,TH ; (1512- )PHL; (1807- )IDN

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 82715 83181G 83181H 83530 84210 84248 84540 89422A 89465 89465A 89467B 89615 9004119865 9004A11240 9004A11240 9004A43021 90105T0247 9155180616
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-52050

F65#

 1
83530-52050

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-BZ110

F65#..5F..(GCC,GEN,MXC,PHL,SA)

 1
84210-BZ110

F65#..5F

 1
84248 - CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS
84248-BZ041

F65#..5F

 1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ030

F65#

 1
89465 - SENSOR, OXYGEN
89465-BZ430

F65#..GEN,MA,SA

W/PART NUMBER MARK

 1
89615 - SENSOR, KNOCK CONTROL
89615-BZ040

F65#

 1
Common parts
90041-19865
9004A-11240
9004A-43021
90105-T0247
91551-80616

ILLUST NO. 2 OF 6(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

ENGINE ROOM

diagram 28850 8202 8202 8202 82616A 82641 82641C 82661 827111E360 83390 84243 84518 85928B 85930G 9004940062 9004940063 9004A11240 9004A11296 9004A11296 9004A15060 9004A15060 9004A18039 9098208298 9098209019 9098209021 9098209022 9098209023 9098209025
Part # Description Qty Price
28850 - SENSOR ASSY, BATTERY CURRENT
28850-B2041

1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
28850-B2041

1NRVE,2NRVE..F65#

 1
82616A - PULLER, FUSE, NO.2
82616-58010

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
82616-58010

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
82641 - RELAY, INTEGRATION NO.1
82641-BZ010

F65#

 1
82641C - RELAY, INTEGRATION NO.2
9004A-98006

F65#

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-BZ141

F65#

 1
82661-BZ141

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
84243 - SWITCH, ENGINE HOOD
84243-52010

F653..SA;F654..4AT..STD..TH;F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(MA,PHL,SA)

 1
84243-52010

F653..SA;F654..MA,MXC,PHL,SA,TH

 1
84518 - HOLDER, SWITCH COVER
84518-BZ020

F653..SA;F654..4AT..STD..TH;F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(MA,PHL,SA)

 1
84518-BZ020

F653..SA;F654..MA,MXC,PHL,SA,TH

 1
85930G - RELAY, ACC
9004A-98006

F65#

 1
Common parts
82711-1E360
90049-40062
90049-40063
9004A-11240
9004A-11296
9004A-15060
9004A-18039
90982-08298
90982-09019
90982-09021
90982-09022
90982-09023
90982-09025
Linked diagrams
8202

ILLUST NO. 3 OF 6(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

INSTRUMENT PANEL 1/2

diagram 8202 82223E 82600 82616 82673B 84340 84345 84520 84520 84520E 85916D 88630Y 9004120276 9004120276 9004120276 9004170330 9004170330 9098208298 9098209019 9098209020 9098209021 9098209022 9098209023 9098209024 9165340620
Part # Description Qty Price
82223E - WIRE, CLUTCH START SWITCH
82223-BZ070

F654..RHD..5F..(MID,STD)

 1
82600 - BLOCK ASSY, FUSE
82600-BZ240

F65#..SA

 1
82600-BZ720

F65#..SA

 1
82600-BZA00

F654..STD..TH;F654..(MID,SPO)..(PHL,SA,TH)

 1
82616 - PULLER, FUSE
82616-58010

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
82673B - BRACKET, JUNCTION BLOCK
82673-BZ050

F65#..RHD

 1
84340 - SWITCH ASSY, STOP LAMP
84340-BZ040

F65#

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

F65#

 1
84520E - SWITCH ASSY, CLUTCH START, NO.2
84520-97202

F653..5F..SPO;F654..RHD..5F..(MID,STD)

 1
85916D - RELAY, FOG LAMP
9004A-98006

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
88630Y - RELAY, REAR COOLER
9004A-98006

F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH

 1
Common parts
90041-20276
90041-70330
90982-08298
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09024
91653-40620
Linked diagrams
8202

ILLUST NO. 5 OF 6(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

SWITCH

diagram 8202 84330 84870A 84986 85530 85535B 89611
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F65#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ071

F653..STD;F653..MID..GEN;F654..(SPO,STD)..(GCC,PHL,TH);F654..(MID,STD)..(GEN,MA,MXC,PHL,SA)

 1
84986 - SWITCH, VEHICLE STABILITY CONTROL
84986-BZ040

F65#..SA

 1
84986-BZ030

F65#..GCC,SA

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F65#

 2
85530-BZ080

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-BZ061

F65#

 1
Linked diagrams
8202

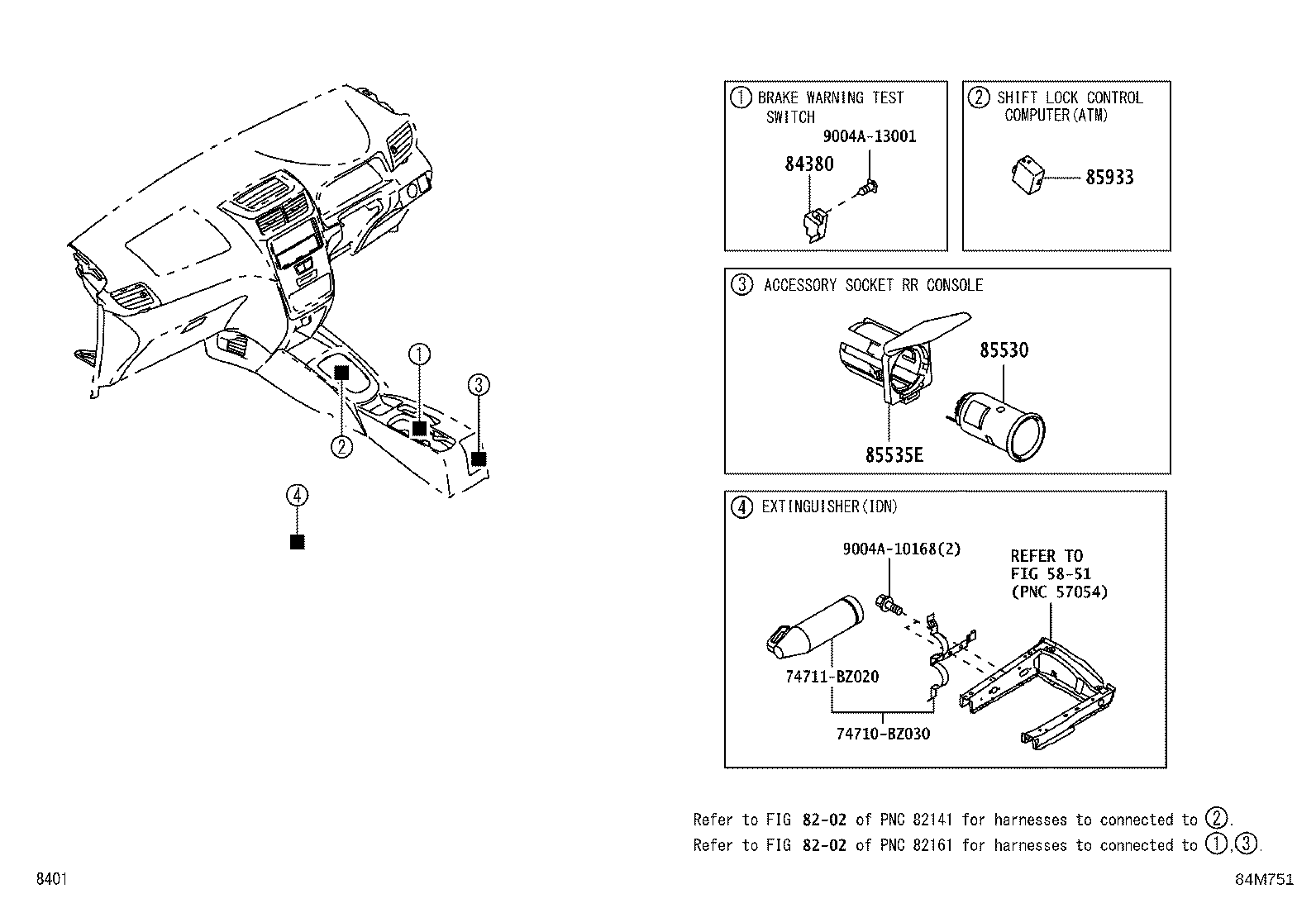

ILLUST NO. 3 OF 6(2012- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL 2/2

diagram 5851 74710BZ030 74711BZ020 8202 8202 84380 85530 85535E 85933 9004A10168 9004A13001
Part # Description Qty Price
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F65#

 2
85530-BZ080

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ040

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535-BZ071

F65#

 1
Common parts
74710-BZ030
74711-BZ020
9004A-10168
9004A-13001
Linked diagrams
5851
8202

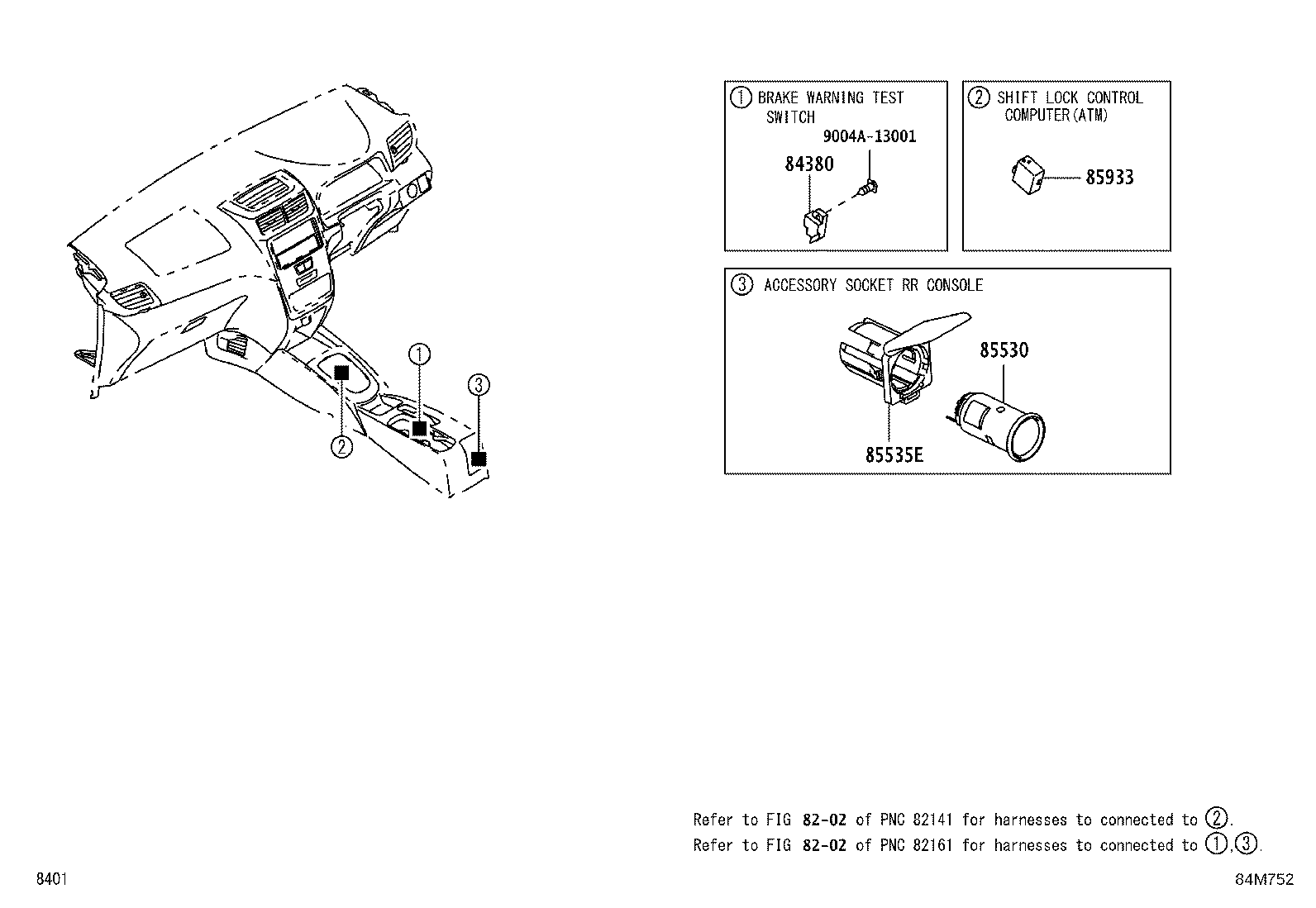

ILLUST NO. 3 OF 6(1901-2012)IDN ; (1904-2012)MA,SA,TH

Click highlighted areas on diagram

INSTRUMENT PANEL 2/2

diagram 8202 8202 84380 85530 85535E 85933 9004A13001
Part # Description Qty Price
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F65#

 2
85530-BZ080

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ040

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

TYPE B

 1
85535-BZ071

F65#

 1
Common parts
9004A-13001
Linked diagrams
8202
