F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )F654..MID,SPO..GCC,GEN,IDN,PHL,SA ; (1609- )4AT..MXC ; (1801-1904)F65

Click highlighted areas on diagram

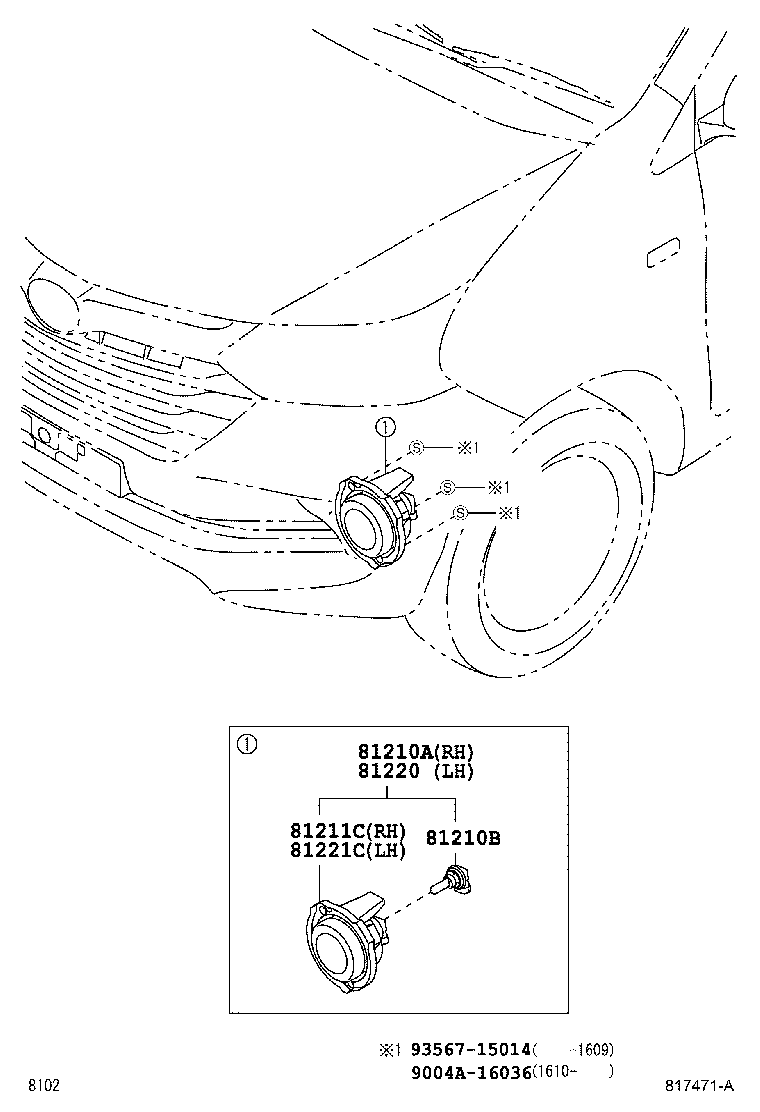

diagram 81210A 81210B 81211C 81220 81221C 9004A16036 9356715014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-BZ160

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81210-BZ160

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81210B - BULB, FOG LAMP
90049-51185

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

12V 19W H16

 2
90049-51185

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

12V 19W H16

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-BZ060

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81211-BZ060

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81220 - LAMP ASSY, FOG, LH
81220-BZ160

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81220-BZ160

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-BZ060

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
81221-BZ060

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
Common parts
9004A-16036
93567-15014
