F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508-1904)F653..MA ; (1508-1904)SPO..MA,PHL ; (1508-1904)F653..LHD..4AT ; (1508-19

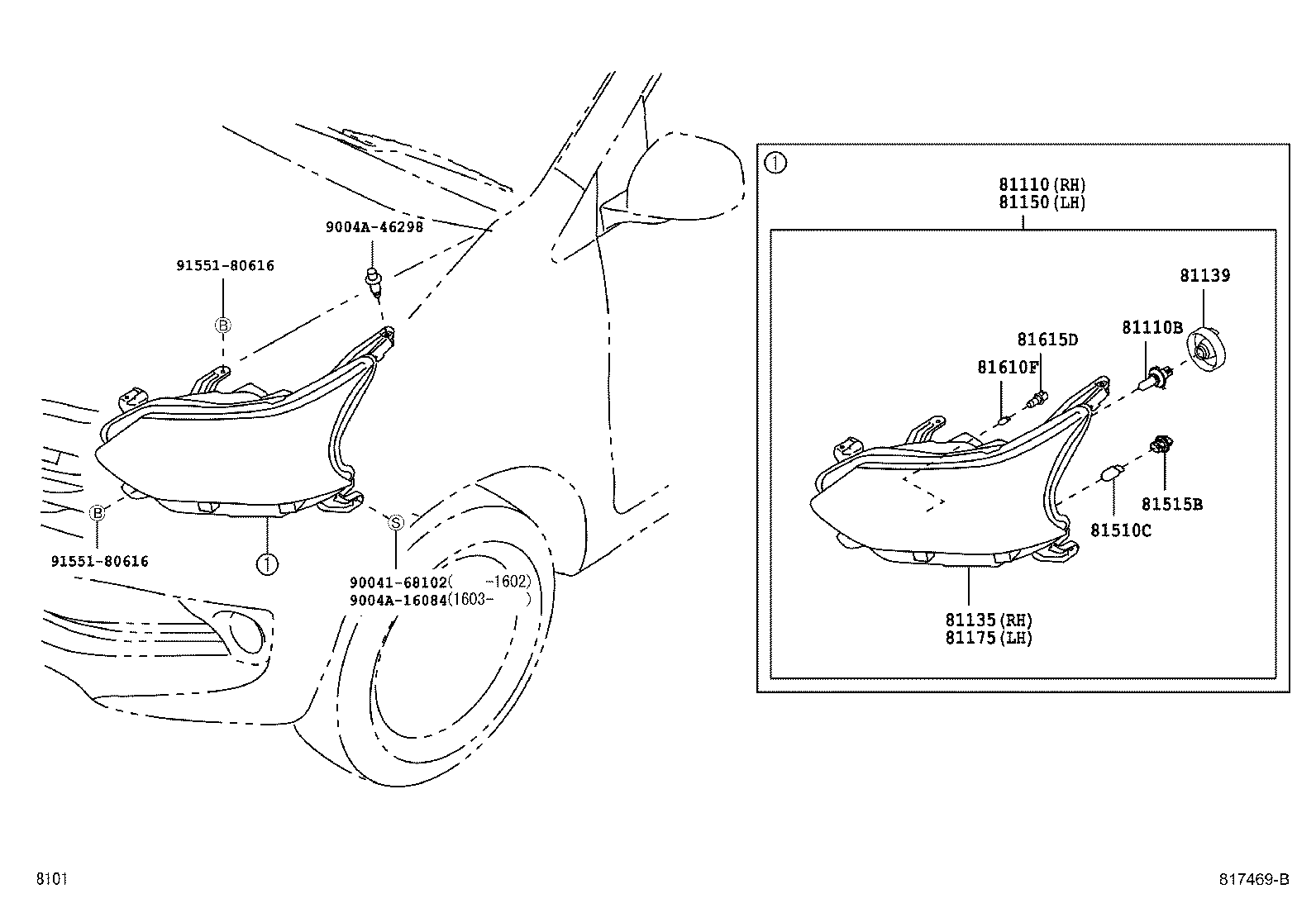

Click highlighted areas on diagram

diagram 81110 81110B 81135 81139 81150 81175 81510C 81515B 81610F 81615D 9004168102 9004A16084 9004A46298 9155180616 9155180616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81110-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81110-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81130-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81130-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81150 - HEADLAMP ASSY, LH
81150-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81150-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81150-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81170-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81170-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
9004A-81031

F65#

12V 21W AMBER

 2
9004A-81031

F65#

12V 21W AMBER

 2
9004A-81031

F65#

12V 21W AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

F65#

 2
90075-60028

F65#

 2
90075-60028

F65#

 2
81610F - BULB(FOR CLEARANCE LAMP)
9004A-81030

F65#

12V 5W T10

 2
9004A-81030

F65#

12V 5W T10

 2
9004A-81030

F65#

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
81128-B2090

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 2
81128-B2090

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 2
81128-B2090

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 2
Common parts
90041-68102
9004A-16084
9004A-46298
91551-80616

(1901- )IDN ; (1904- )MID..SA ; (1904-)STD..PHL ; (1904- )F653..MID..G

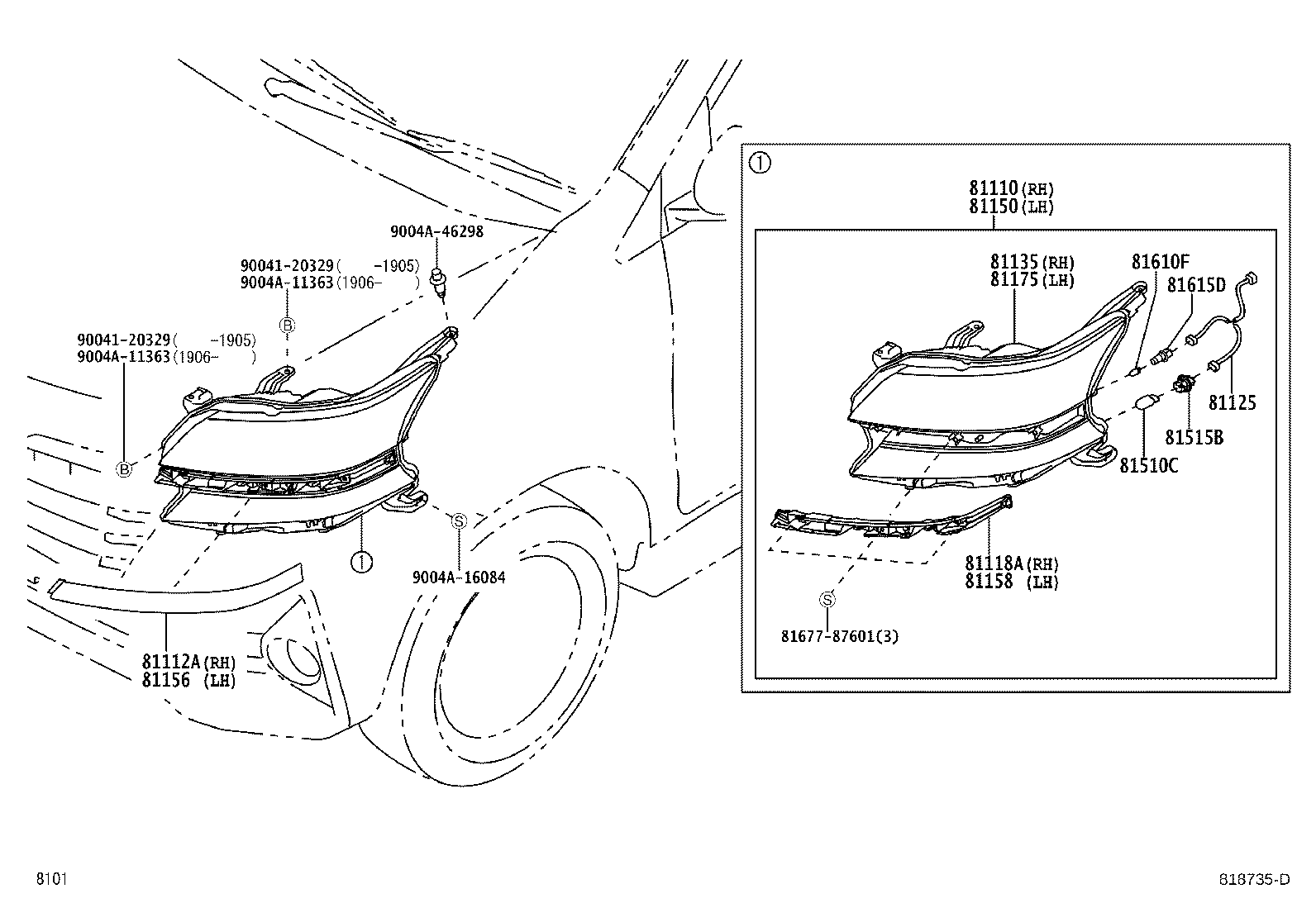

Click highlighted areas on diagram

diagram 81110 81112A 81118A 81125 81135 81150 81156 81158 81175 81510C 81515B 81610F 81615D 8167787601 9004120329 9004120329 9004A11363 9004A11363 9004A16084 9004A46298
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81112A - RIM, HEADLAMP, RH
81116-BZ020

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 1
81118A - BRACKET, HEADLAMP, RH
81118-BZ010

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 1
81125 - CORD, HEADLAMP
81125-BZ020

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81150 - HEADLAMP ASSY, LH
81150-BZ430

F654..MID..SA;F65#..IDN,MA,TH

 1
81156 - RIM, HEADLAMP, LH
81156-BZ020

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 1
81158 - BRACKET, HEADLAMP, LH
81158-BZ010

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-BZ380

F654..MID..SA;F65#..IDN,MA,TH

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
9004A-81031

F65#

12V 21W AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

F65#

 2
81610F - BULB(FOR CLEARANCE LAMP)
9004A-81030

F65#

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
81128-B2090

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 2
Common parts
81677-87601
90041-20329
9004A-11363
9004A-16084
9004A-46298
