F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MID,STD..IDN ; (1904- )LO,MID,STD,VB..GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

STD

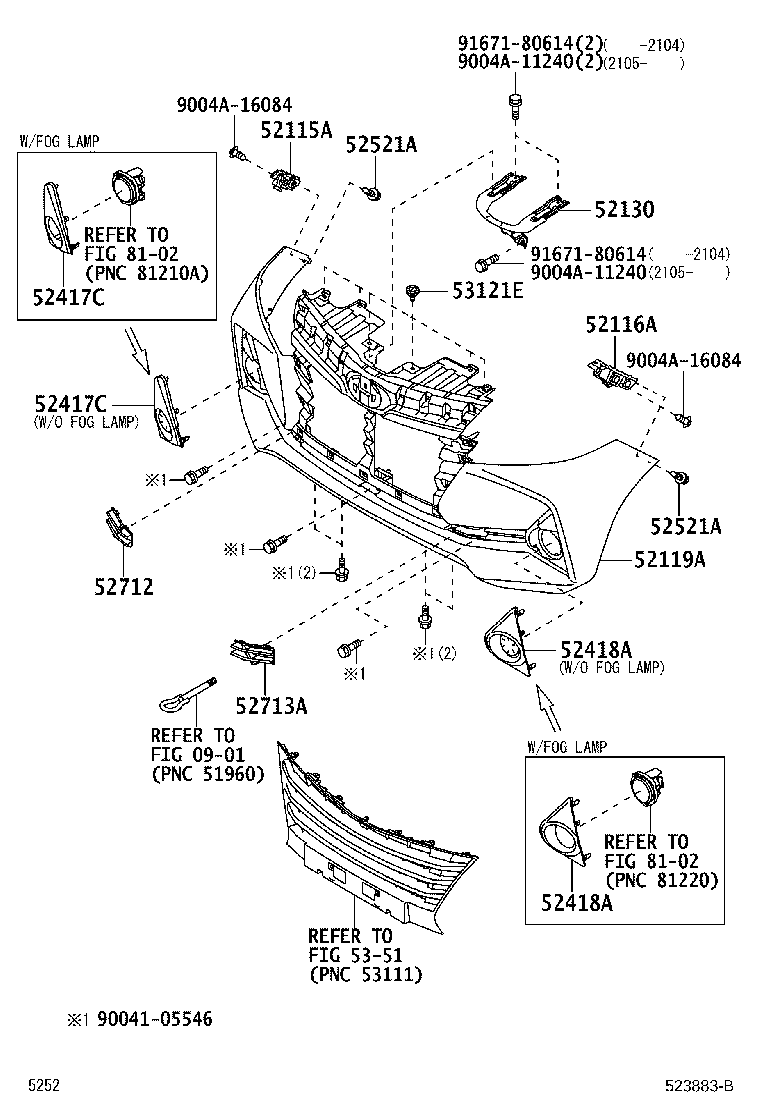

diagram 0901 52115A 52116A 52119A 52130 52417C 52417C 52418A 52418A 52521A 52521A 52712 52713A 53121E 5351 8102 8102 9004105546 9004A11240 9004A11240 9004A16084 9004A16084 9167180614 9167180614
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-BZ120

F65#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-BZ150

F65#

 1
52119A - COVER, FRONT BUMPER
52119-BZD21

F654..MID..(GCC,GEN,PHL,SA,TH)

W(FOG LAMP)

 1
52119-BZN60

F653..MID..GEN;F654..STD..(GCC,GEN,TH);F653..(MID,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH)

W(FOG LAMP)

 1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-BZ090

F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH)

 1
52417C - INSERT, FRONT BUMPER GUARD, LOWER RH
52715-BZ090

F65#..MID..(GCC,IDN,PHL,SA,TH)

W(FRONT FOG LAMP)

 1
52417C - INSERT, FRONT BUMPER GUARD, LOWER RH
52715-BZ090

F65#..MID..(GCC,IDN,PHL,SA,TH)

W(FRONT FOG LAMP)

 1
52418A - INSERT, FRONT BUMPER GUARD, LOWER LH
52716-BZ090

F65#..MID..(GCC,IDN,PHL,SA,TH)

W(FRONT FOG LAMP)

 1
52418A - INSERT, FRONT BUMPER GUARD, LOWER LH
52716-BZ090

F65#..MID..(GCC,IDN,PHL,SA,TH)

W(FRONT FOG LAMP)

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
9004A-46380

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 2
9004A-46380

F65#

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
9004A-46380

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 2
9004A-46380

F65#

 2
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-BZ340

F653..MID..GEN;F654..STD..(GCC,GEN,TH);F653..(MID,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH)

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-BZ330

F653..MID..GEN;F654..STD..(GCC,GEN,TH);F653..(MID,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH)

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
9004A-46323

F65#

 6
Common parts
90041-05546
9004A-11240
9004A-16084
91671-80614
Linked diagrams
0901
5351
8102
