F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1712)

Click highlighted areas on diagram

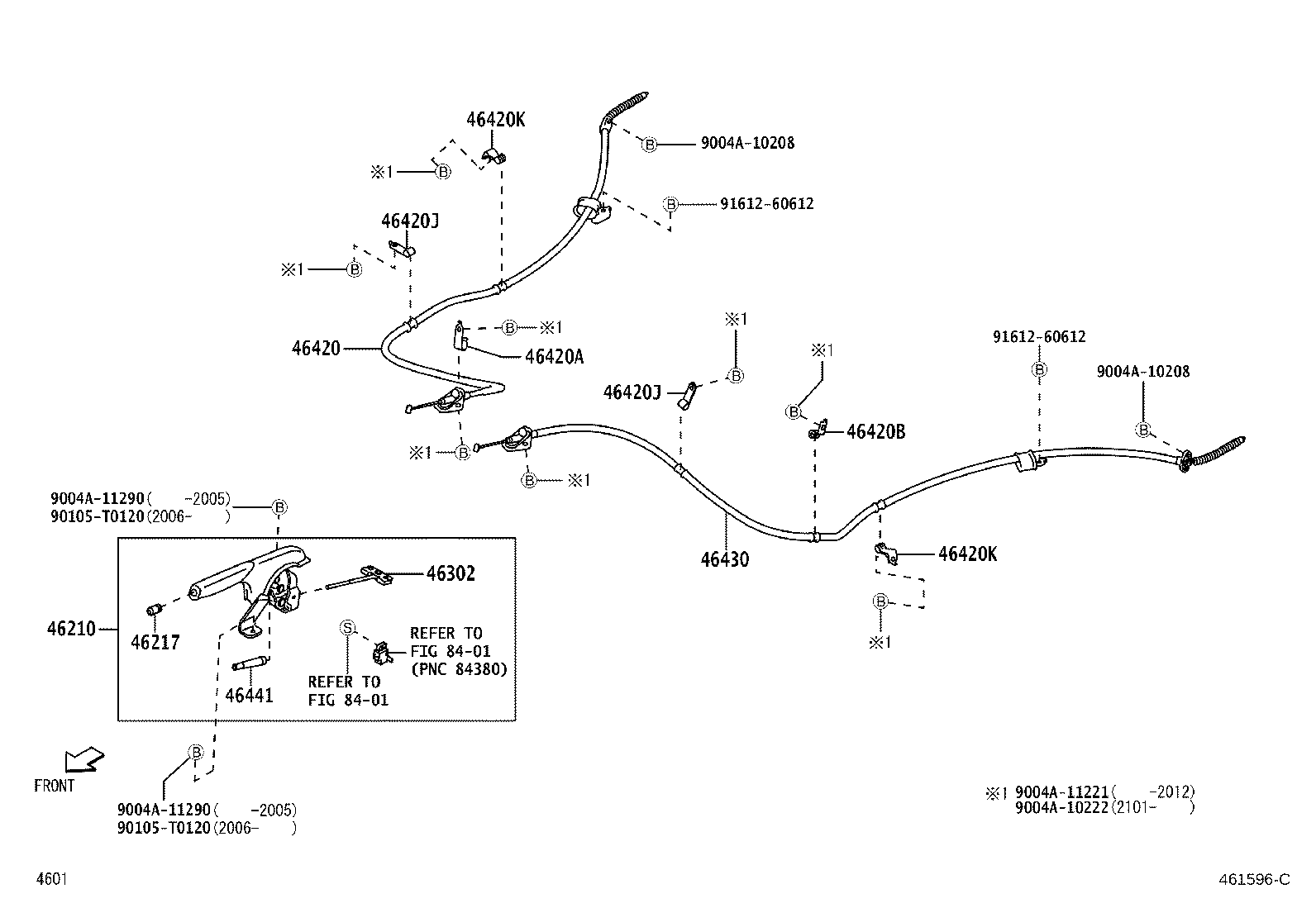

diagram 46210 46217 46302 46334A 46420 46420A 46420B 46420J 46420J 46420K 46420K 46430 46441 8401 8401 9004120086 9004120086 9004120087 9004120087 9004A10208 9004A10208 9004A11221 9004A11221 9004A11221 9004A11221 9004A11221 9004A11221 9004A11290 9004A11290 9161260612
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-BZ080C0

F653..STD..PHL;F65#..(LO,MID,SPO,STD)..(MXC,SA,TH)

BLACK,TRIM1#

 1
46210-BZ080C1

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46210-BZ080C1

F654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)

BLACK,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-BZ040C0

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46217-BZ040C1

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46217-BZ040C1

F654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)

BLACK,TRIM1#

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-87Z03

F65#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-BZ250

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
46420-BZ250

F65#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46467-BZ010

F65#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
9004A-46126

F65#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46133

F65#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46133

F65#

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
9004A-46289

F65#

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
9004A-46289

F65#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-BZ250

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
46430-BZ250

F65#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87Z04

F65#

 1
Common parts
90041-20086
90041-20087
9004A-10208
9004A-11221
9004A-11290
91612-60612
Linked diagrams
8401

(1712- )

Click highlighted areas on diagram

diagram 46210 46217 46302 46420 46420A 46420B 46420J 46420J 46420K 46420K 46430 46441 8401 8401 9004A10208 9004A10208 9004A10222 9004A11221 9004A11290 9004A11290 90105T0120 90105T0120 9161260612 9161260612
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-BZ080C0

F653..STD..PHL;F65#..(LO,MID,SPO,STD)..(MXC,SA,TH)

BLACK,TRIM1#

 1
46210-BZ080C1

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46210-BZ080C1

F654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)

BLACK,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-BZ040C0

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46217-BZ040C1

F654..STD..GEN;F654..MA,MXC,SA,TH;F653..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
46217-BZ040C1

F654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)

BLACK,TRIM1#

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-87Z03

F65#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-BZ250

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
46420-BZ250

F65#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46467-BZ010

F65#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
9004A-46126

F65#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46133

F65#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46133

F65#

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
9004A-46289

F65#

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
9004A-46289

F65#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-BZ250

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
46430-BZ250

F65#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87Z04

F65#

 1
Common parts
9004A-10208
9004A-10222
9004A-11221
9004A-11290
90105-T0120
91612-60612
Linked diagrams
8401
