F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1901)

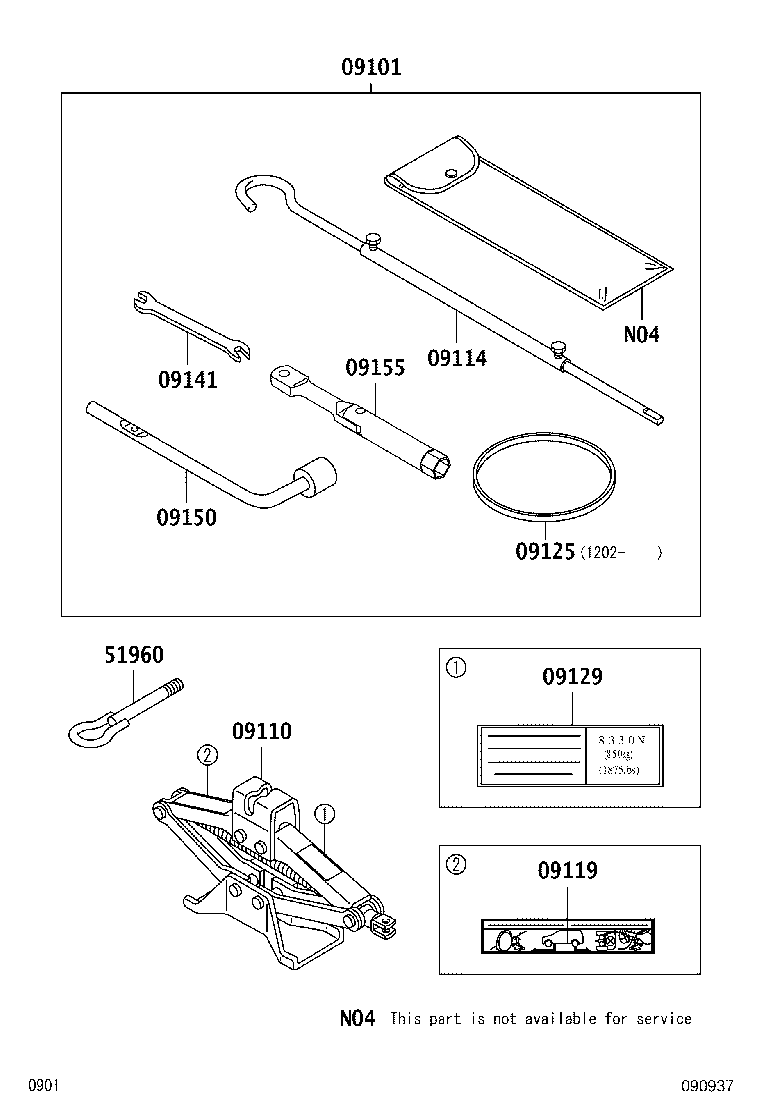

Click highlighted areas on diagram

diagram 09101 09110 09114 09119 09125 09129 09135 09141 09150 09155 09155 09158A 51960
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-BZ280

F65#

 1
09110 - JACK ASSY
09111-BZ201

F65#

 1
09111-BZ201

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-87Z02

F65#

 1
09119 - LABEL, JACK CAUTION
09119-BZ280

F65#..GCC,GEN,MXC,PHL,SA

 1
09119-BZ280

F65#..GCC,GEN,PHL,SA

 1
09125 - BAND, TOOL BAG
09125-BZ010

F65#

 2
09129 - LABEL, JACK CAUTION
09119-BZ070

F65#..GCC,GEN,PHL,SA

 1
09119-BZ070

F65#..GCC,GEN,MXC,PHL,SA

 1
09141 - SPANNER
09141-87Z11

F65#

10 X 12

 1
09150 - WRENCH, HUB NUT BOX
09150-BZ040

F65#

 1
51960 - HOOK ASSY, FRONT
51960-BZ140

F65#

 1

(1901- )4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..GCC,GEN,IDN,MXC,PHL,SA,TH;F

Click highlighted areas on diagram

diagram 09101 09110 09114 09119 09125 09129 09141 09150 09155 51960
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-BZ280

F65#

 1
09110 - JACK ASSY
09111-BZ201

F65#

 1
09111-BZ201

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-87Z02

F65#

 1
09119 - LABEL, JACK CAUTION
09119-BZ280

F65#..GCC,GEN,MXC,PHL,SA

 1
09119-BZ280

F65#..GCC,GEN,PHL,SA

 1
09125 - BAND, TOOL BAG
09125-BZ010

F65#

 2
09129 - LABEL, JACK CAUTION
09119-BZ070

F65#..GCC,GEN,PHL,SA

 1
09119-BZ070

F65#..GCC,GEN,MXC,PHL,SA

 1
09141 - SPANNER
09141-87Z11

F65#

10 X 12

 1
09150 - WRENCH, HUB NUT BOX
09150-BZ040

F65#

 1
51960 - HOOK ASSY, FRONT
51960-BZ140

F65#

 1
