F654LM-GMMFV (2015)
Toyota Avanza
Production
Aug 2015
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

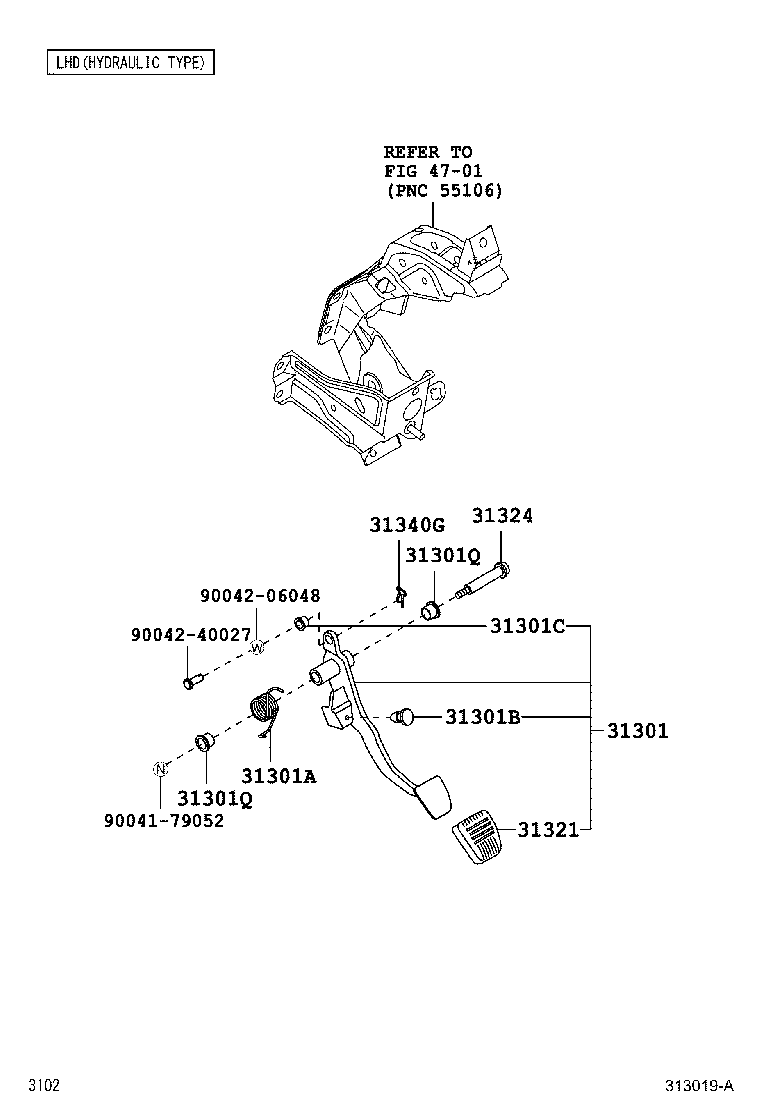

ILLUST NO. 1 OF 2(1508- )F654..LHD..5F
Click highlighted areas on diagram
LHD HYDRAULIC TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-BZ260 |
F654..LHD..5F |
1 | ||
| 31310-BZ260 |
F654..LHD..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 31394-BZ100 |
F654..LHD..5F |
1 | ||
| 31394-BZ100 |
F654..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 9004A-54003 |
F65#..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90043-86123 |
F654..5F |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 9004A-38021 |
F65#..5F..(GCC,GEN,IDN,MXC,PHL,SA) |
2 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 9004A-38021 |
F65#..5F..(GCC,GEN,IDN,MXC,PHL,SA) |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-BZ010 |
F65#..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 47124-BZ020 |
F654..5F;F653..LHD..5F |
1 | ||
| 31340G - CLIP(FOR CLUTCH RELEASE CABLE) | ||||
| 90044-68076 |
F654..5F |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 90042-06048 | ||||
| 90042-40027 | ||||
| Linked diagrams | ||||
| 4701 | ||||

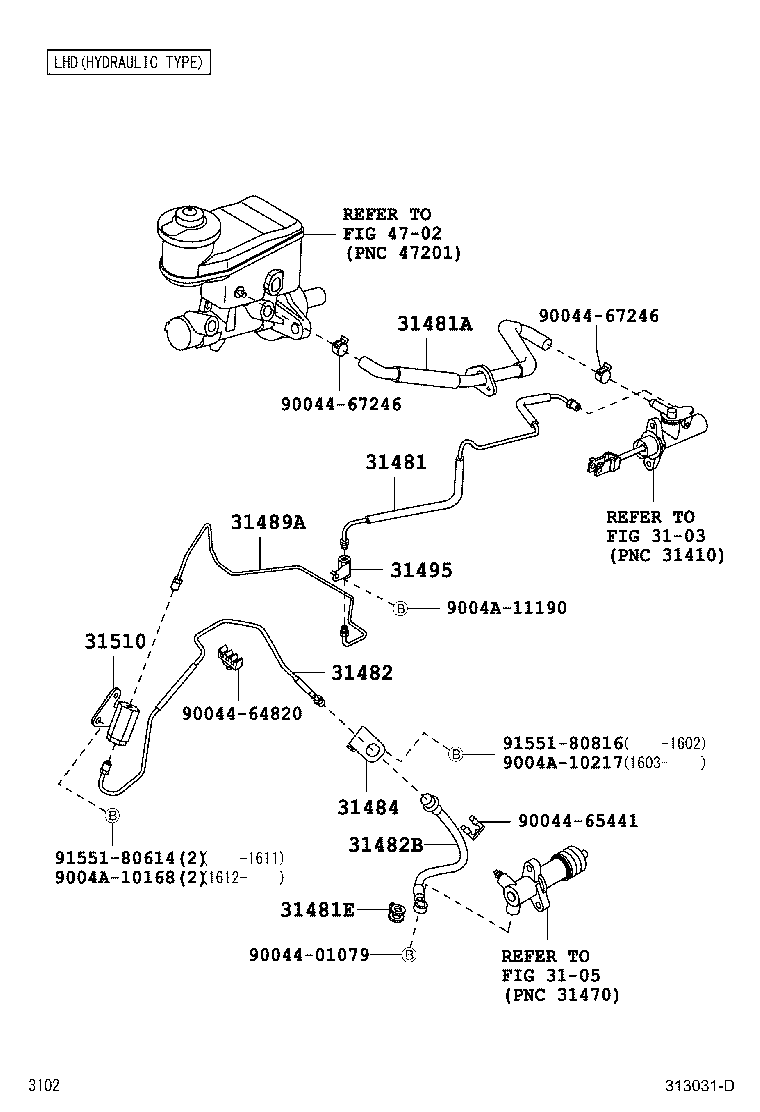

ILLUST NO. 2 OF 2(1508- )F654..LHD..5F
Click highlighted areas on diagram
LHD HYDRAULIC TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-BZ160 |
F654..LHD..5F |
1 | ||
| 31482-BZ160 |
F654..LHD..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 31434-BZ070 |
F654..LHD..5F |
1 | ||
| 31434-BZ070 |
F654..LHD..5F |
1 | ||
| 31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE | ||||
| 47389-97201 |
F654..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-BZ170 |
F654..5F |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 9004A-94079 |
F654..5F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-BZ010 |
F654..5F |
1 | ||
| 31489A - TUBE, 2 WAY TO FLEXIBLE HOSE | ||||
| 31489-BZ070 |
F654..LHD..5F |
1 | ||
| 31489-BZ070 |
F654..LHD..5F |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-B0010 |
F654..LHD..5F |
1 | ||
| 31495-B0010 |
F654..LHD..5F |
1 | ||
| 31510 - ORIFICE ASSY, CLUTCH | ||||
| 31510-B0021 |
F654..5F |
1 | ||
| 31510-B0021 |
F654..5F..(GCC,GEN,MXC,PHL,SA) |
1 | ||
| Common parts | ||||
| 90044-01079 | ||||
| 90044-64820 | ||||
| 90044-65441 | ||||
| 90044-67246 | ||||
| 9004A-10168 | ||||
| 9004A-10217 | ||||
| 9004A-11190 | ||||
| 91551-80614 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4702 | ||||
