F654LM-GMMFF (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

CONTROL PANEL

diagram 5551 55910R 84732H 88611A 9004A16036 9326954012
Part # Description Qty Price
55910R - CONTROL ASSY, HEATER
55910-BZ630

F653..STD..PHL;F654..MID..(PHL,TH);F654..(SPO,STD)..(IDN,MA,PHL,TH)

 1
84732H - SWITCH, HEATER BLOWER
88470-BZ050

F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH

 1
88611A - KNOB, COOLER CONTROL SWITCH
88611-BZ080B0

F654..MID..PHL;F653..5F..STD..IDN

LT.GRAY,TRIM1#,4#

 1
Common parts
9004A-16036
93269-54012
Linked diagrams
5551

ILLUST NO. 2 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

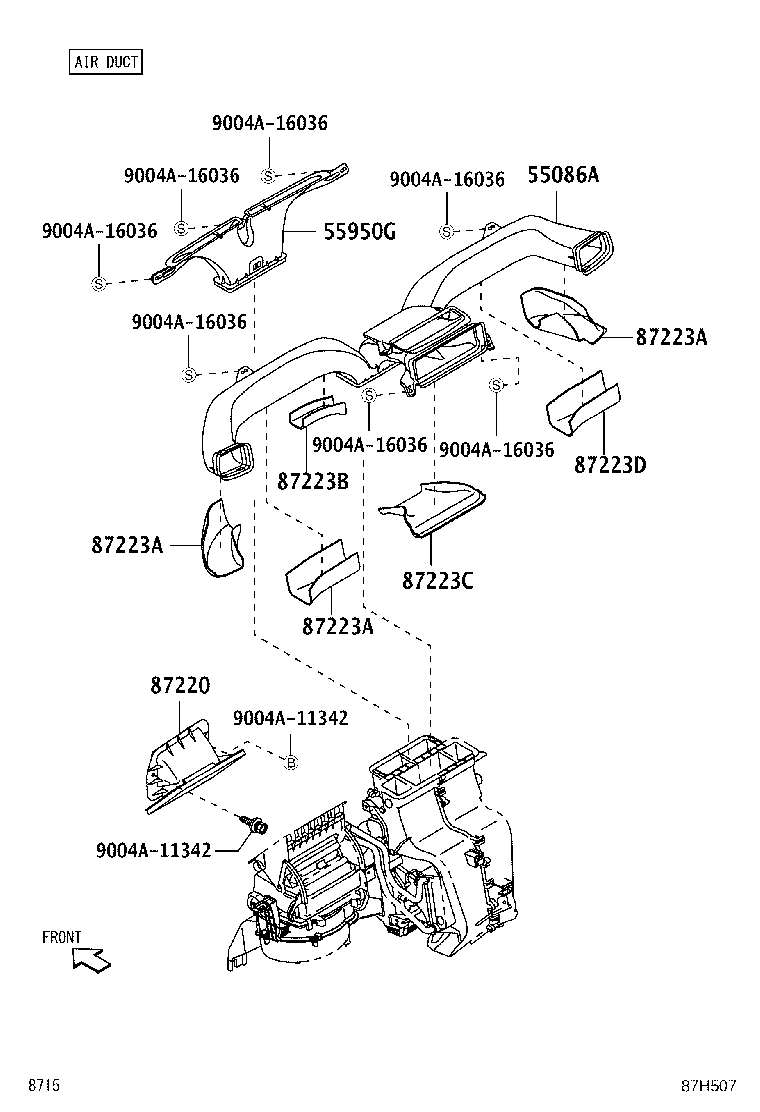

AIR DUCT

diagram 55086A 55950G 87220 87223A 87223A 87223A 87223B 87223C 87223D 9004A11342 9004A11342 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036
Part # Description Qty Price
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-BZ140

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
55086-BZ140

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87220 - DUCT ASSY, AIR
87220-BZ300

F65#..LHD

 1
87220-BZ301

F65#..LHD

 1
87220-BZ301

F65#..LHD

 1
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223B - PAD, AIR DUCT, NO.2
87223-BZ540

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87223C - PAD, AIR DUCT, NO.3
87223-BZ100

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87223D - PAD, AIR DUCT, NO.4
87223-BZ600

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
Common parts
9004A-11342
9004A-16036

ILLUST NO. 2 OF 2(1904- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55086A 55950G 87220 87223A 87223A 87223A 87223B 87223C 87223D 9004A11342 9004A11342 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036
Part # Description Qty Price
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-BZ140

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
55086-BZ140

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87220 - DUCT ASSY, AIR
87220-BZ300

F65#..LHD

 1
87220-BZ301

F65#..LHD

 1
87220-BZ301

F65#..LHD

 1
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223A - PAD, AIR DUCT
87223-BZ110

F65#..LHD

NO.2

 4
87223-BZ100

F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)

NO.1

 1
87223-BZ110

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 3
87223B - PAD, AIR DUCT, NO.2
87223-BZ540

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87223C - PAD, AIR DUCT, NO.3
87223-BZ100

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87223D - PAD, AIR DUCT, NO.4
87223-BZ600

F65#..GCC,GEN,MA,MXC,PHL,SA,TH

 1
Common parts
9004A-11342
9004A-16036
