F654LM-GMMFF (2015)
Toyota Avanza
Production
Aug 2015
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

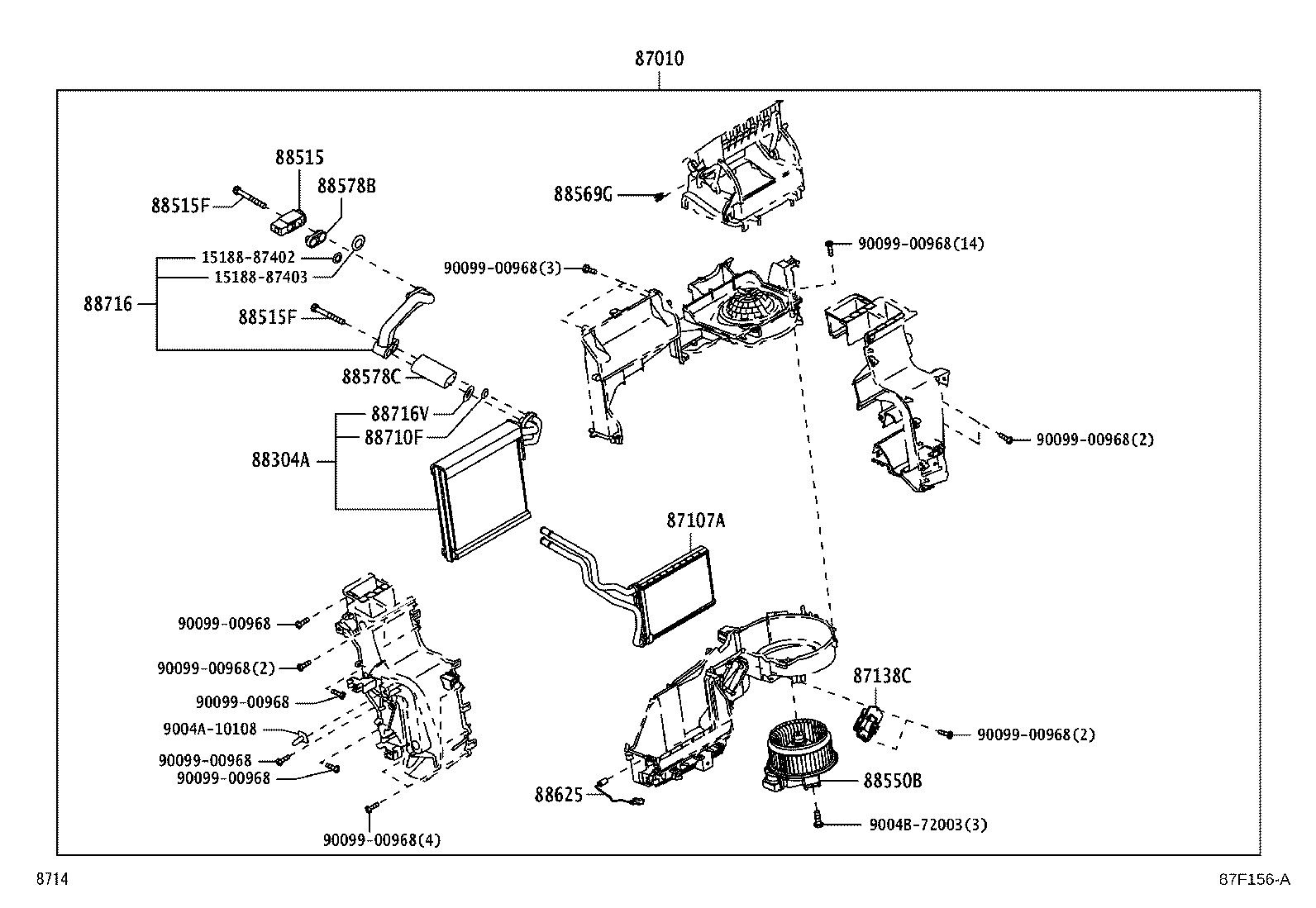

ILLUST NO. 2 OF 3(1508-1904)GEN,MXC,PHL ; (1801-1904)STD..PHL ; (1801-1904)4AT..MID..PHL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ270 |
F65#..PHL |
1 | ||
| 88510-BZ350 |
F65#..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ140 |
F65# |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ100 |
F65#..GEN,MXC,PHL |
1 | ||
| 88501-BZ160 |
F65#..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ050 |
F65#..GEN,MXC,PHL,SA |
1 | ||
| 88515-BZ050 |
F65#..PHL,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..LHD |
4 | ||
| C9909-97201 |
F65#..LHD |
4 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..LHD |
4 | ||
| C9909-97201 |
F65#..LHD |
4 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-BZ404 |
F65#..LHD |
1 | ||
| 88550-BZ404 |
F65#..LHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ590 |
F65#..LHD |
1 | ||
| 88578-BZ590 |
F65#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-BZ600 |
F65#..LHD |
1 | ||
| 88578-BZC00 |
F65#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ110 |
F65#..LHD |
1 | ||
| 88625-BZ110 |
F65#..LHD |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F65#..LHD |
2 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-BZ840 |
F65#..LHD |
1 | ||
| 88716-BZ840 |
F65#..LHD |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F65#..LHD |
2 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||

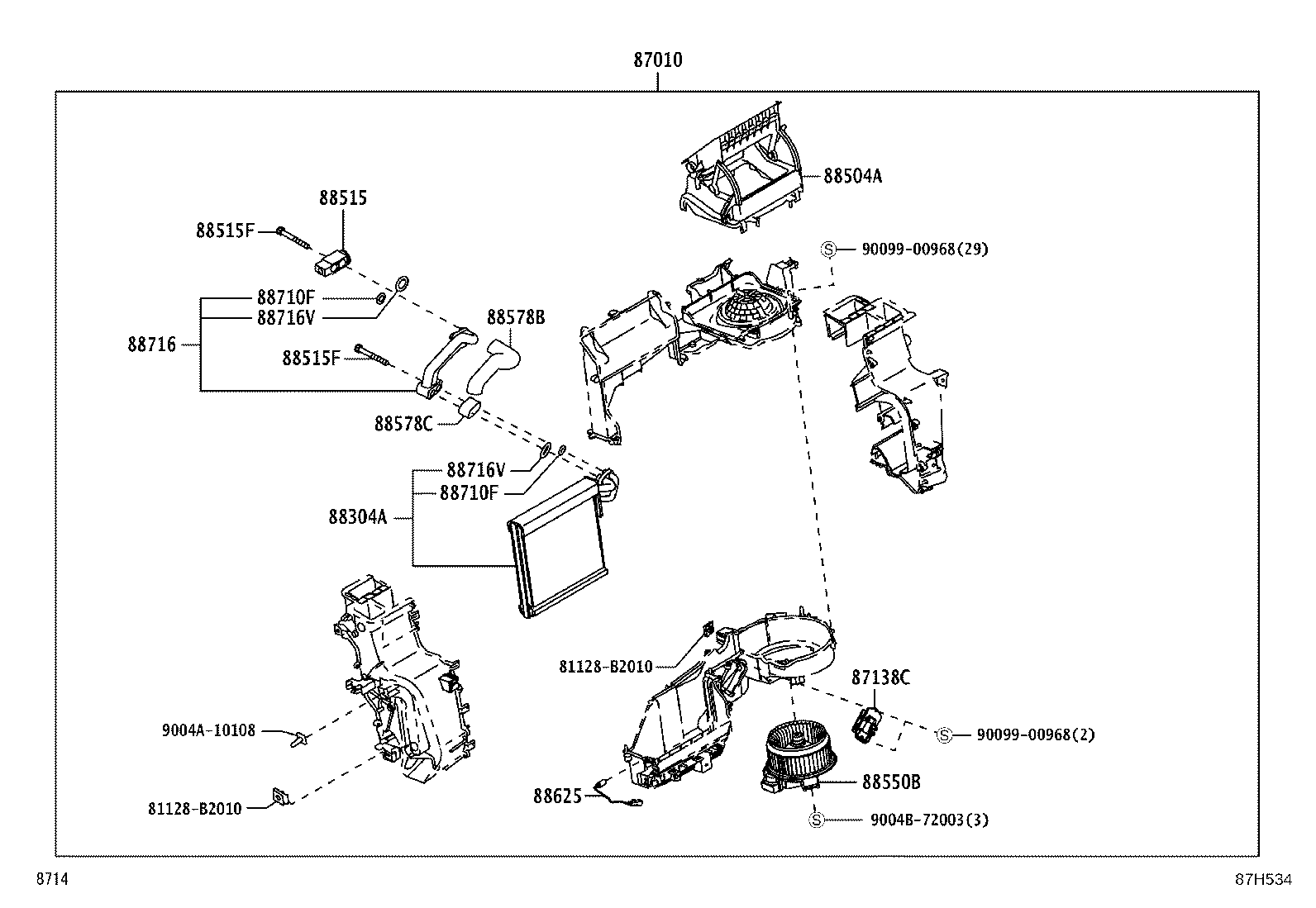

ILLUST NO. 2 OF 3(1904- )PHL
Click highlighted areas on diagram
W/O HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ270 |
F65#..PHL |
1 | ||
| 88510-BZ350 |
F65#..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ140 |
F65# |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ100 |
F65#..GEN,MXC,PHL |
1 | ||
| 88501-BZ160 |
F65#..LHD |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87103-BZ160 |
F65#..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ050 |
F65#..GEN,MXC,PHL,SA |
1 | ||
| 88515-BZ050 |
F65#..PHL,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..LHD |
4 | ||
| C9909-97201 |
F65#..LHD |
4 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..LHD |
4 | ||
| C9909-97201 |
F65#..LHD |
4 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-BZ404 |
F65#..LHD |
1 | ||
| 88550-BZ404 |
F65#..LHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ590 |
F65#..LHD |
1 | ||
| 88578-BZ590 |
F65#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-BZ600 |
F65#..LHD |
1 | ||
| 88578-BZC00 |
F65#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ110 |
F65#..LHD |
1 | ||
| 88625-BZ110 |
F65#..LHD |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F65#..LHD |
2 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F65#..LHD |
2 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-BZ840 |
F65#..LHD |
1 | ||
| 88716-BZ840 |
F65#..LHD |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F65#..LHD |
2 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F65#..LHD |
2 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||
