F653RM-GQDFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 1NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654

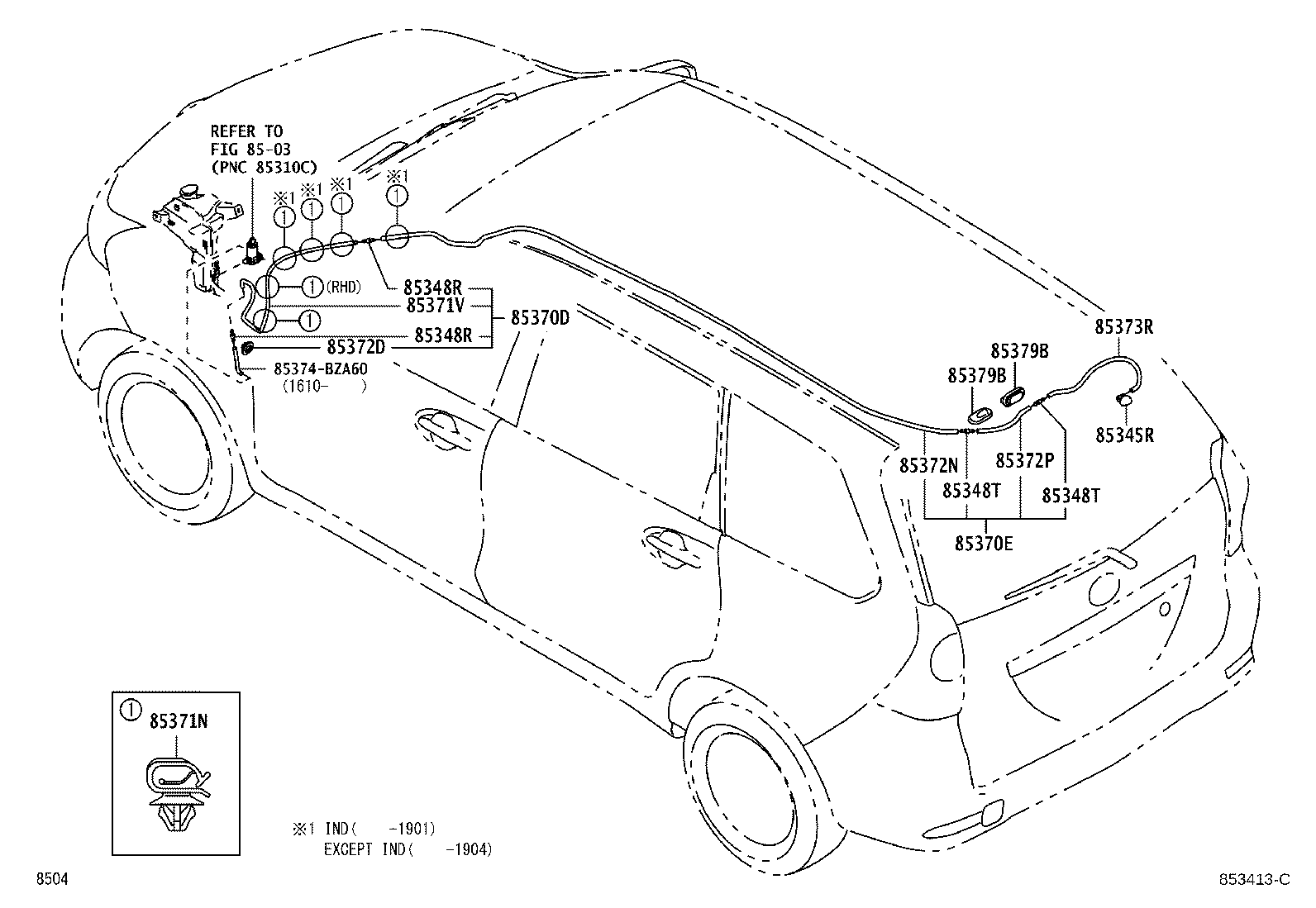

Click highlighted areas on diagram

diagram 8503 85345R 85348R 85348R 85348T 85348T 85370D 85370E 85371N 85371V 85372D 85372N 85372P 85373R 85374BZA60 85379B 85379B
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-BZ070

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 1
85391-BZ070

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85317-BZ080

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85317-BZ080

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85317-BZ080

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85317-BZ080

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-BZA10

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85370-BZA10

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 1
85370E - HOSE ASSY, REAR WASHER, NO.2
85370-BZA30

F654..MID..(GCC,GEN,SA);F65#..(MID,SPO,STD)..(IDN,MA,PHL,TH)

 1
85370-BZA30

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85371N - CLAMP, REAR WASHER HOSE
82711-BZ100

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 6
82711-BZ100

F65#..RHD

 2
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
85374-BZ670

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

*H,L=1080

 1
85374-BZ670

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=1080

 1
85372D - GROMMET, REAR WASHER HOSE
90044-80126

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 1
90044-80126

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85374-BZA50

F654..MID..(GCC,GEN,SA);F65#..(MID,SPO,STD)..(IDN,MA,PHL,TH)

*H,L=2450

 1
85374-BZA50

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=2450

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85374-BZA30

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=280

 1
85374-BZA30

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

*H,L=280

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374-BZ440

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

*H,L=180

 1
85374-BZ440

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=180

 1
85379B - GROMMET, WASHER, A
85373-BZ010

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85373-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85379B - GROMMET, WASHER, A
85373-BZ010

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 2
85373-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
Common parts
85374-BZA60
Linked diagrams
8503
