F653RM-GQDFJ (2015)
Toyota Avanza

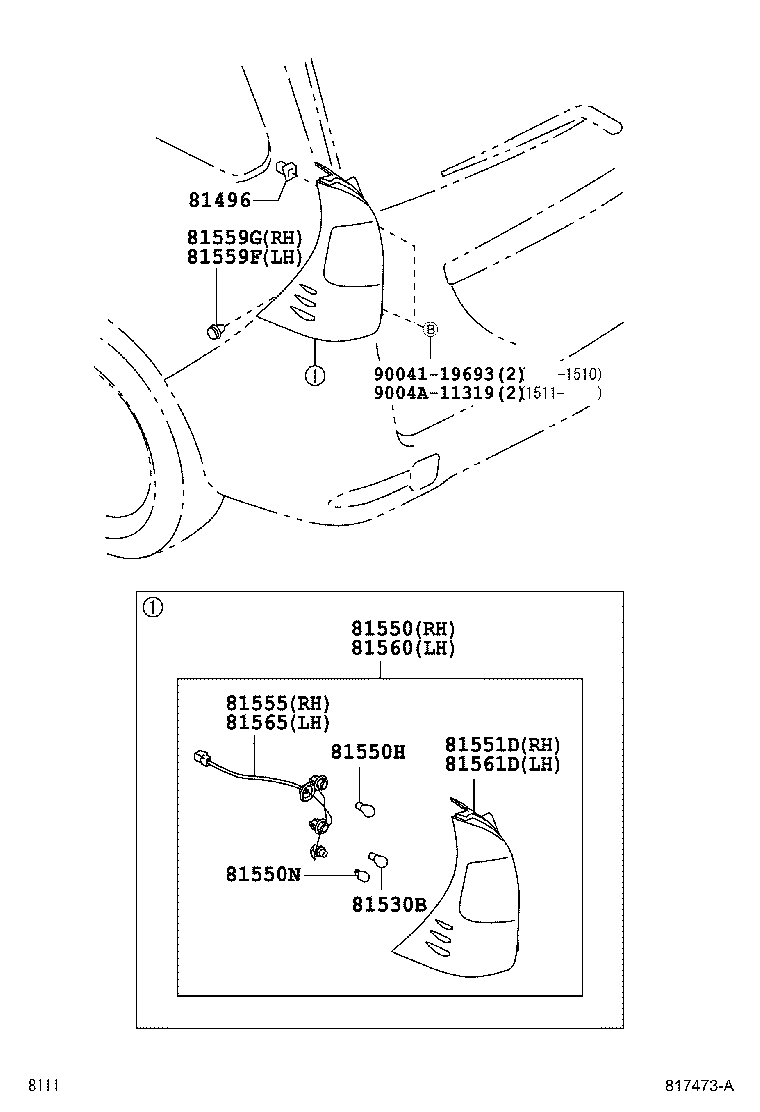

(1507-1901)IDN ; (1507-1904)F653,654..GCC,GEN,MA,MXC,PHL,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-B4010 |
F653,654 |
2 | ||
| 81496-BZ010 |
F65# |
2 | ||
| 81496-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 81530B - BULB, REAR TURN SIGNAL LAMP | ||||
| 9004A-81005 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 21W |
2 | ||
| 9004A-81050 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 21W |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-BZ220 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81550-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 9004A-81025 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 21/5W |
2 | ||
| 9004A-81027 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 21W |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 9004A-81023 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 16W |
2 | ||
| 9004A-81026 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-BZ240 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81551-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-BZ190 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81555-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559F - CLIP, RR COMBINATION LAMP, LH | ||||
| 81559-B2020 |
F65# |
1 | ||
| 81559-B2020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559G - CLIP, RR COMBINATION LAMP, RH | ||||
| 81559-B2020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559-B2020 |
F65# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-BZ220 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81560-BZ340 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-BZ240 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81561-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-BZ070 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81565-BZ050 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 90041-19693 | ||||
| 9004A-11319 | ||||

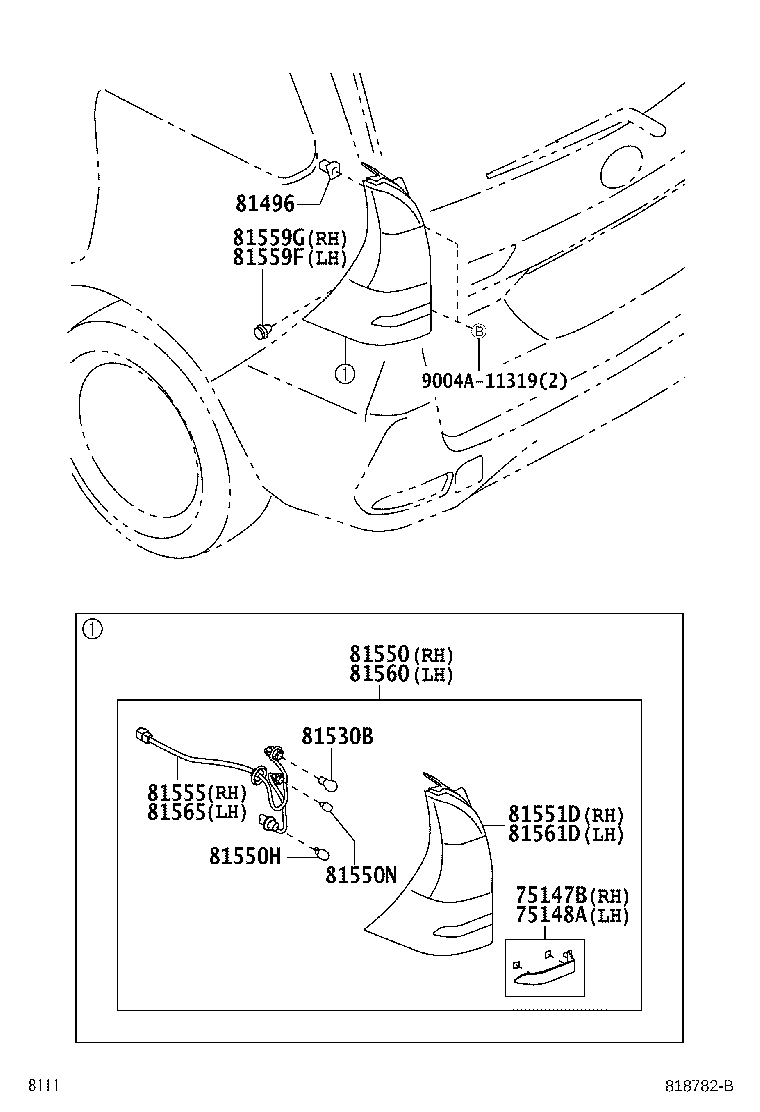

(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75147B - PLATE, REAR COMBINATION LAMP, RH | ||||
| C6419-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 75148A - PLATE, REAR COMBINATION LAMP, LH | ||||
| C6419-BZ030 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-B4010 |
F653,654 |
2 | ||
| 81496-BZ010 |
F65# |
2 | ||
| 81496-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 81530B - BULB, REAR TURN SIGNAL LAMP | ||||
| 9004A-81005 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 21W |
2 | ||
| 9004A-81050 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 21W |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-BZ220 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81550-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 9004A-81025 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 21/5W |
2 | ||
| 9004A-81027 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 21W |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 9004A-81023 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) 12V 16W |
2 | ||
| 9004A-81026 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-BZ240 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81551-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-BZ190 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81555-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559F - CLIP, RR COMBINATION LAMP, LH | ||||
| 81559-B2020 |
F65# |
1 | ||
| 81559-B2020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559G - CLIP, RR COMBINATION LAMP, RH | ||||
| 81559-B2020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 81559-B2020 |
F65# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-BZ220 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81560-BZ340 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-BZ240 |
F654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH) |
1 | ||
| 81561-BZ350 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-BZ070 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 81565-BZ050 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 9004A-11319 | ||||
