F653RM-GMSFJ (2015)
Toyota Avanza
ILLUST NO. 3 OF 3(1507- )F653,654..GCC,IDN,MA,PHL,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-BZ163 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 87030-BZ163 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 87030-BZ163 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 87030-BZ163 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-BZ163 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 87030-BZ163 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 87030-BZ163 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 87030-BZ163 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88482A - COVER | ||||
| 88714-BZ090 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88714-BZ090 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88714-87Z03 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88714-87Z03 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88304-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88304-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88304-BZ060 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88304-BZ060 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88504 - CASE SUB-ASSY, COOLER BLOWER | ||||
| 88504-BZ030 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88504-BZ030 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88504-BZ030 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88504-BZ030 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 88897-87Z36 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88897-87Z36 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88897-87Z36 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88897-87Z36 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88515-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88515-BZ010 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88515-BZ010 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88519A - HOLDER, REMOTE BULB, PARTS | ||||
| 88519-87701 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88519-87701 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88519-87701 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88519-87701 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-BZ220 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 88539-BZ220 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 88539-BZ220 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88539-BZ220 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 9004A-48053 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 9004A-48053 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 9004A-48053 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-48053 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 88544A - CASE, COOLER BLOWER, UPPER | ||||
| 88502-BZ040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88502-BZ040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88502-BZ040 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88502-BZ040 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88544B - CASE, COOLER BLOWER, LOWER | ||||
| 88502-BZ140 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88502-BZ140 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88502-BZ140 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 88502-BZ140 |
F65#..IDN,MA,PHL,TH;F654..MID..(GEN,SA) |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88619-BZ080 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88619-BZ080 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88619-BZ080 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88619-BZ080 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-12100 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
1 | ||
| 88578-12100 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
1 | ||
| 88578-12100 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88578-12100 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88605F - FUSE(FOR COOLER WIRING HARNESS) | ||||
| 82606-B0010 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 82606-B0010 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 82606-B0010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 82606-B0010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88605W - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-BZ091 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88605-BZ091 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88605-BZ091 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88605-BZ091 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-BZ020 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88635-BZ020 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88635-BZ010 |
F653,654..IDN |
1 | ||
| 88635-BZ010 |
F653,654..IDN |
1 | ||
| 88706F - TUBE SUB-ASSY, LIQUID, F | ||||
| 9004B-91001 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004B-91001 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004B-91001 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 9004B-91001 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-BZ490 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-BZ490 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F653,654..IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88578-BZ490 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 15188-87402 | ||||
| 9004A-11313 | ||||
| 9004B-16006 | ||||
| 9004B-16008 | ||||
| 9004B-72009 | ||||

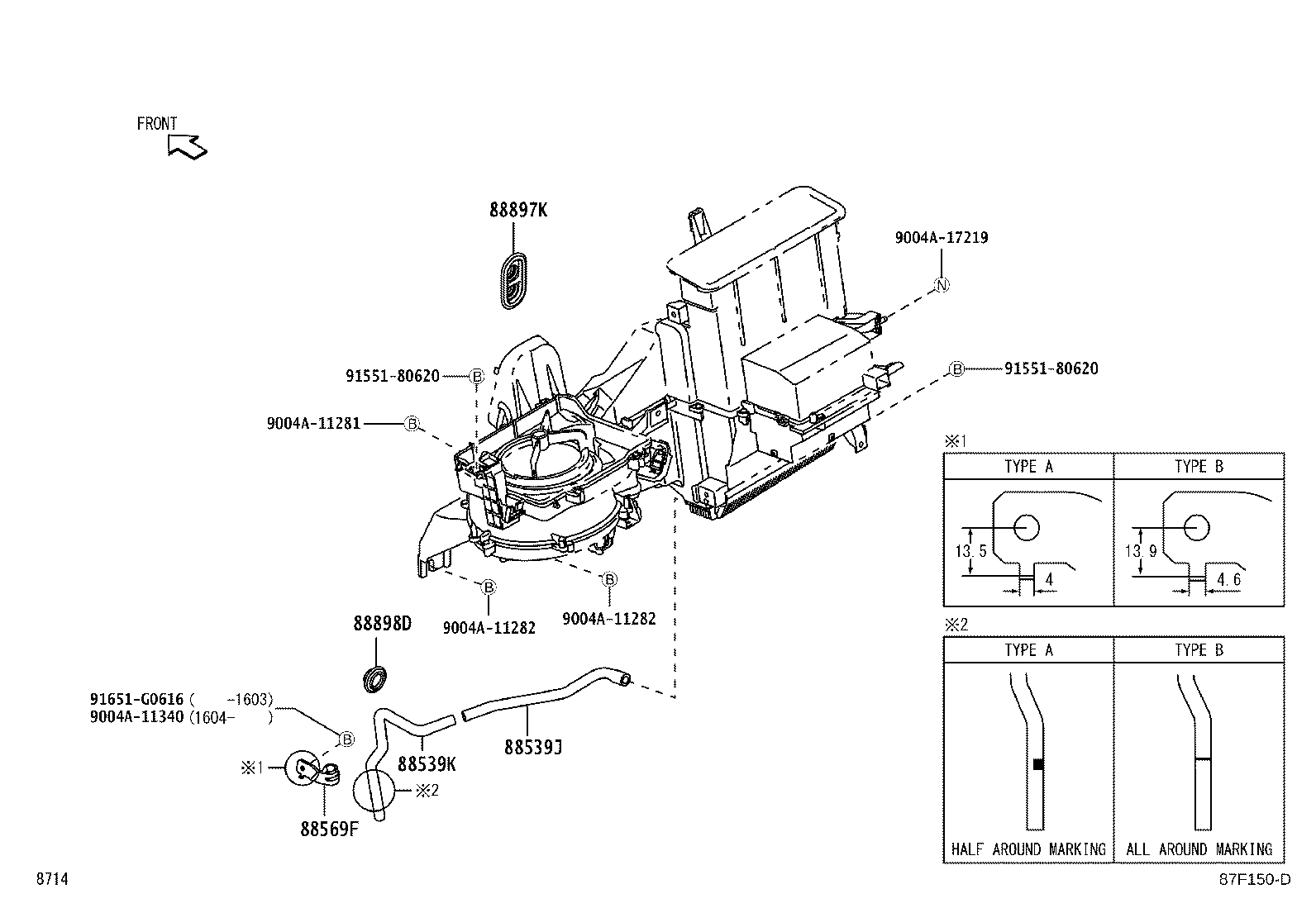

ILLUST NO. 1 OF 3(1507-1901)IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-BZ320 |
F653,654..RHD |
1 | ||
| 88539-BZ320 |
F65#..RHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88839-BZ010 |
F653,654..IDN,MA,SA TYPE A |
1 | ||
| 88839-BZ011 |
F65#..RHD TYPE B |
1 | ||
| 88839-BZ011 |
F65#..RHD TYPE B |
1 | ||
| 88569F - CLAMP | ||||
| 88718-BZ730 |
F653,654..IDN,MA,SA TYPE A |
1 | ||
| 88718-BZ731 |
F65#..RHD TYPE B |
1 | ||
| 88718-BZ731 |
F65#..RHD TYPE B |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-BZ160 |
F653,654..IDN,MA,PHL,TH |
1 | ||
| 88897-BZ160 |
F65#..IDN,MA,PHL,TH |
1 | ||
| 88898D - GROMMET | ||||
| 88897-87Z13 |
F65# |
1 | ||
| 88897-87Z13 |
F653,654 |
1 | ||
| Common parts | ||||
| 9004A-11281 | ||||
| 9004A-11282 | ||||
| 9004A-11340 | ||||
| 9004A-17219 | ||||
| 91551-80620 | ||||
| 91651-G0616 | ||||

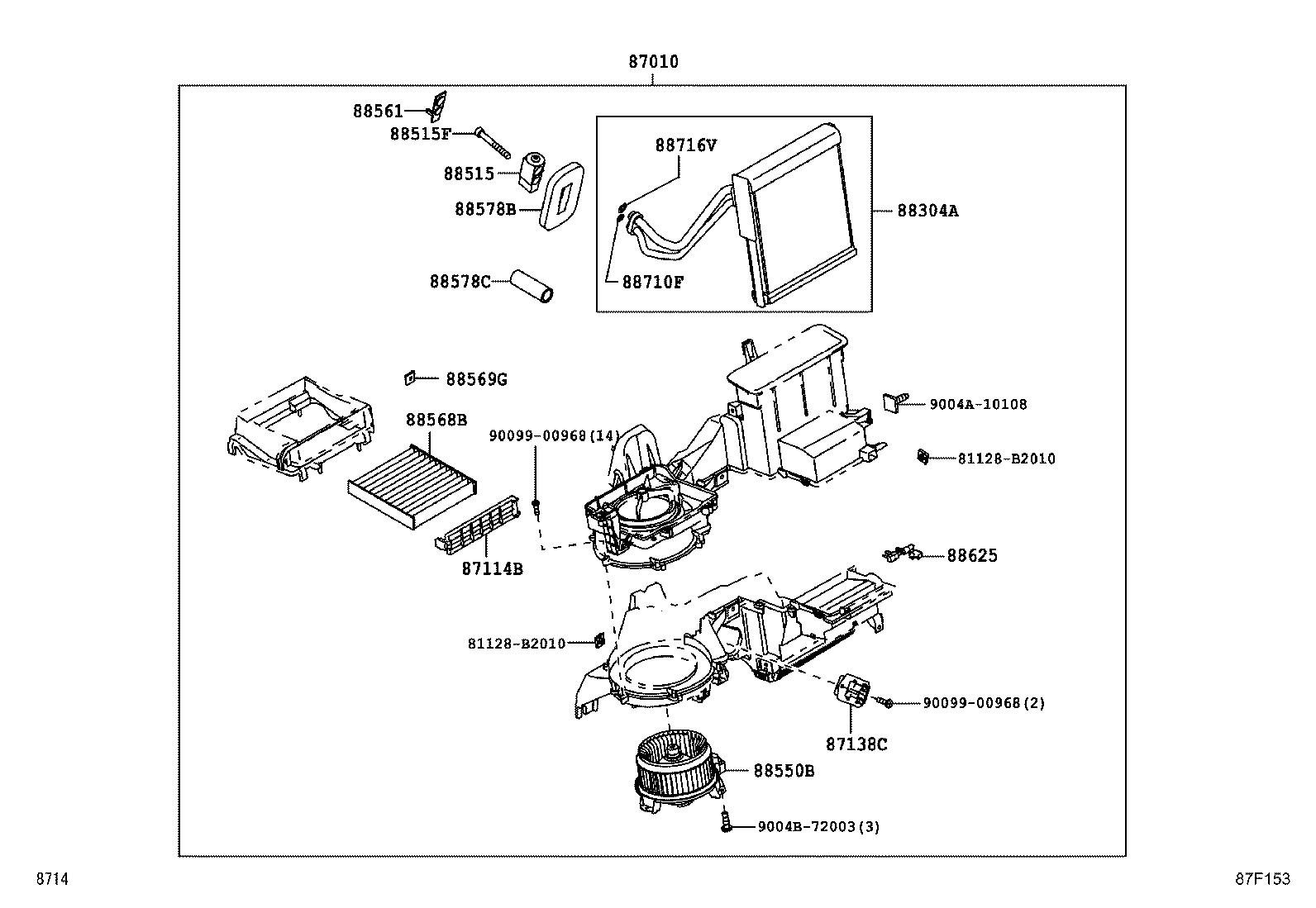

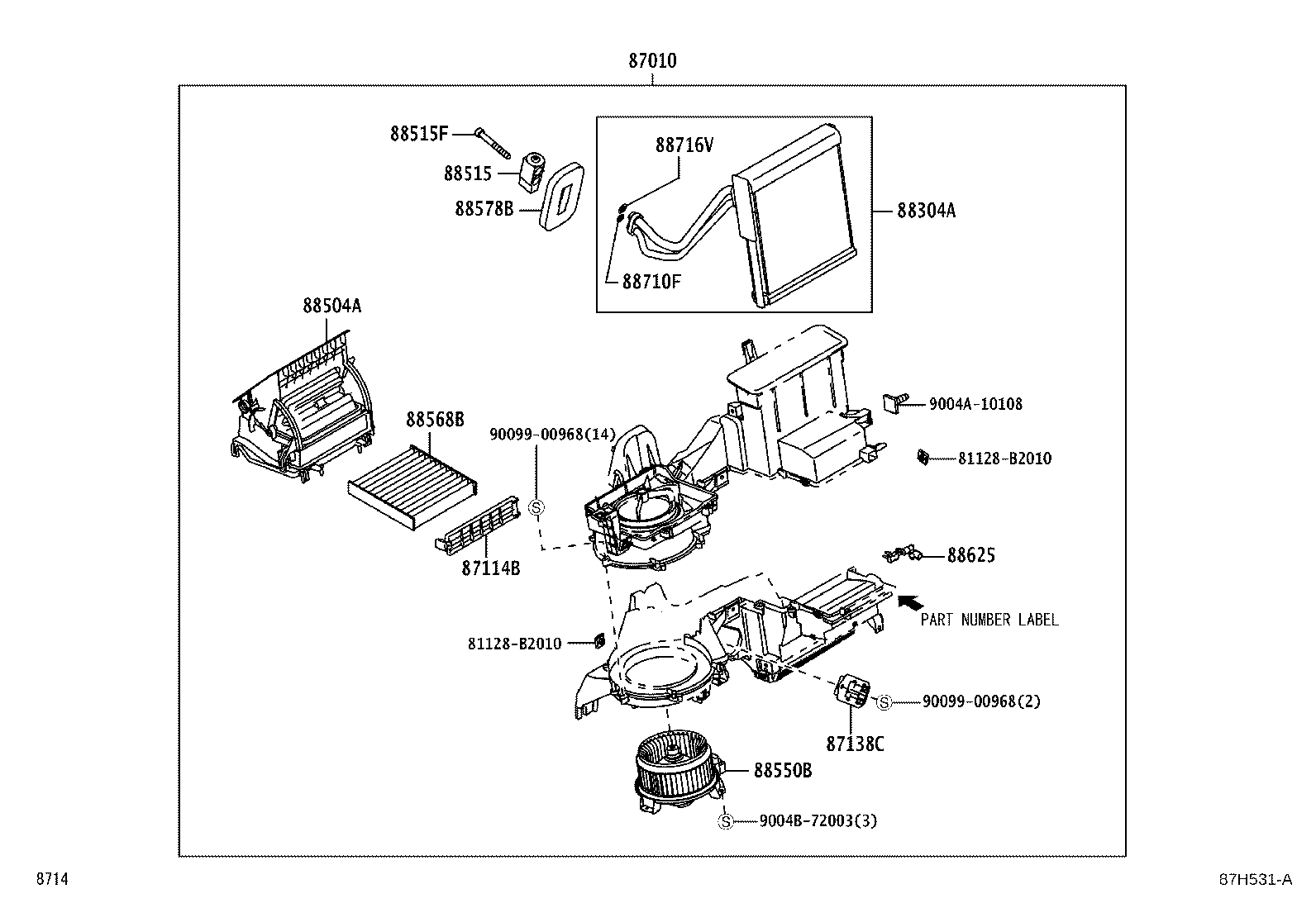

ILLUST NO. 2 OF 3(1507-1901)IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ261 |
F65#..IDN |
1 | ||
| 88510-BZ262 |
F65#..IDN W/PART NUMBER LABEL |
1 | ||
| 88510-BZ260 |
F653,654..IDN |
1 | ||
| 88510-BZ292 |
F65#..IDN,MA,TH W/PART NUMBER LABEL |
1 | ||
| 88510-BZ291 |
F65#..IDN W/PART NUMBER LABEL |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-BZ020 |
F653,654..IDN |
1 | ||
| 87114-BZ020 |
F65#..IDN,MA,TH |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ070 |
F653,654..GEN,IDN,MA,MXC,PHL,SA,TH |
1 | ||
| 87138-BZ140 |
F65# |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ070 |
F653,654..IDN,MA,TH |
1 | ||
| 88304-BZ070 |
F65#..IDN,MA,TH |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ150 |
F653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,TH);F654..(SPO,STD)..(IDN,MA) |
1 | ||
| 88515-BZ150 |
F653,654..IDN,MA,TH |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F653,654..RHD |
2 | ||
| C9909-97201 |
F65#..RHD |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 87103-BZ170 |
F65#..IDN ASSY,NO.88510BZ262 |
1 | ||
| 87103-BZ100 |
F653,654..IDN,MA,TH |
1 | ||
| 87103-BZ180 |
F65#..IDN,MA,TH ASSY,NO.88510BZ292 |
1 | ||
| 87103-BZ170 |
F65#..IDN ASSY,NO.88510BZ291 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-BZ050 |
F65#..IDN,MA,TH |
1 | ||
| 88568-BZ050 |
F653,654..IDN |
1 | ||
| 88569G - CLAMP | ||||
| 88888-BZ010 |
F653,654..IDN,MA,PHL,TH |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ570 |
F653,654..RHD |
1 | ||
| 88578-BZ570 |
F65#..RHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-BZ580 |
F653,654..IDN,MA,TH |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ060 |
F65#..RHD |
1 | ||
| 88625-BZ060 |
F653,654..RHD |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F653,654 |
1 | ||
| 15188-87402 |
F65#..IDN,MA,TH |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F653,654 |
1 | ||
| 15188-87403 |
F65#..IDN,MA,TH |
1 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||

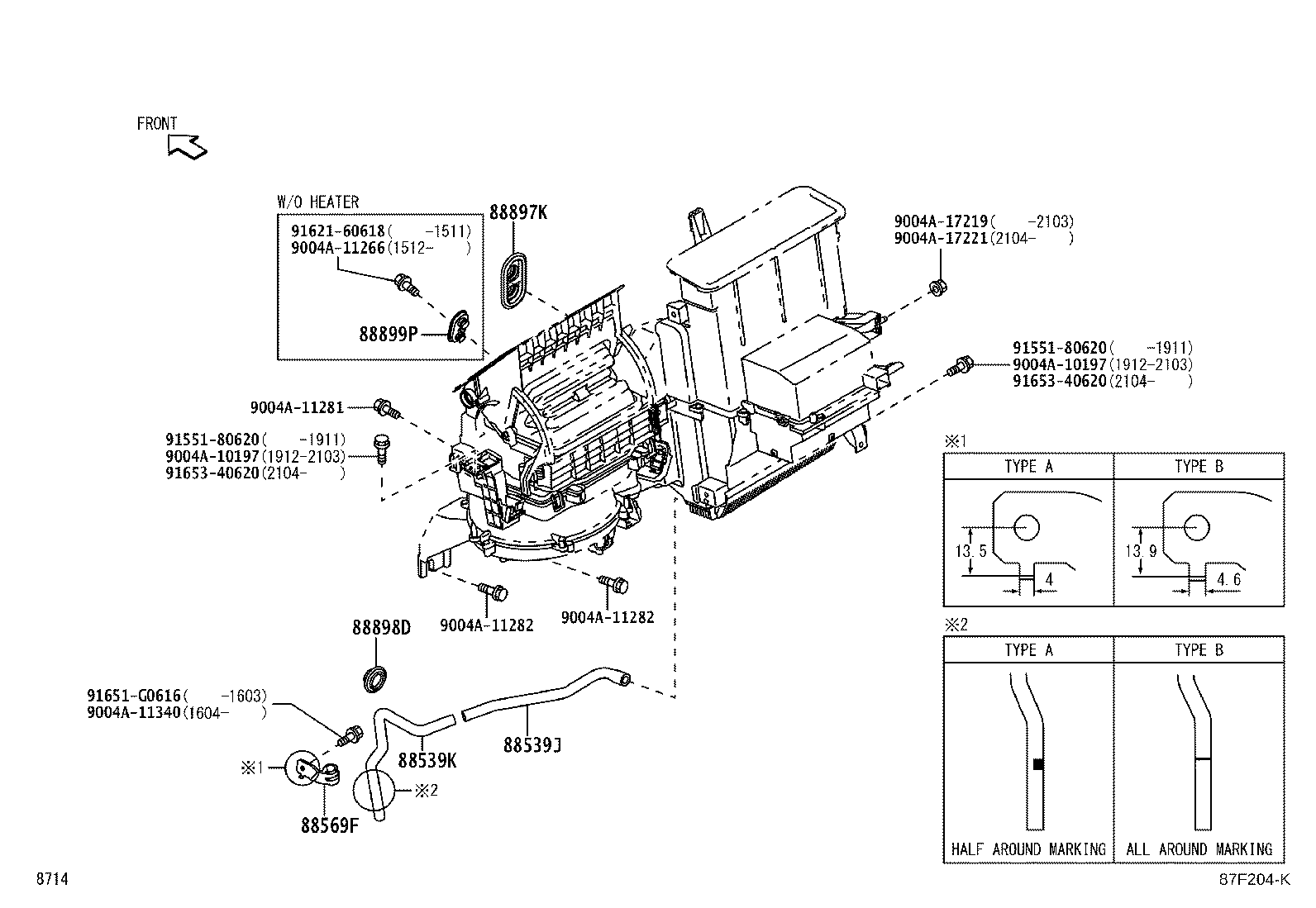

ILLUST NO. 1 OF 3(1508- )MA,TH ; (1901- )IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-BZ320 |
F653,654..RHD |
1 | ||
| 88539-BZ320 |
F65#..RHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88839-BZ010 |
F653,654..IDN,MA,SA TYPE A |
1 | ||
| 88839-BZ011 |
F65#..RHD TYPE B |
1 | ||
| 88839-BZ011 |
F65#..RHD TYPE B |
1 | ||
| 88569F - CLAMP | ||||
| 88718-BZ730 |
F653,654..IDN,MA,SA TYPE A |
1 | ||
| 88718-BZ731 |
F65#..RHD TYPE B |
1 | ||
| 88718-BZ731 |
F65#..RHD TYPE B |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-BZ160 |
F653,654..IDN,MA,PHL,TH |
1 | ||
| 88897-BZ160 |
F65#..IDN,MA,PHL,TH |
1 | ||
| 88898D - GROMMET | ||||
| 88897-87Z13 |
F65# |
1 | ||
| 88897-87Z13 |
F653,654 |
1 | ||
| Common parts | ||||
| 9004A-10197 | ||||
| 9004A-11266 | ||||
| 9004A-11281 | ||||
| 9004A-11282 | ||||
| 9004A-11340 | ||||
| 9004A-17219 | ||||
| 9004A-17221 | ||||
| 91551-80620 | ||||
| 91621-60618 | ||||
| 91651-G0616 | ||||
| 91653-40620 | ||||
ILLUST NO. 2 OF 3(1901- )IDN ; (1904- )MA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ261 |
F65#..IDN |
1 | ||
| 88510-BZ262 |
F65#..IDN W/PART NUMBER LABEL |
1 | ||
| 88510-BZ260 |
F653,654..IDN |
1 | ||
| 88510-BZ292 |
F65#..IDN,MA,TH W/PART NUMBER LABEL |
1 | ||
| 88510-BZ291 |
F65#..IDN W/PART NUMBER LABEL |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-BZ020 |
F653,654..IDN |
1 | ||
| 87114-BZ020 |
F65#..IDN,MA,TH |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ070 |
F653,654..GEN,IDN,MA,MXC,PHL,SA,TH |
1 | ||
| 87138-BZ140 |
F65# |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ070 |
F653,654..IDN,MA,TH |
1 | ||
| 88304-BZ070 |
F65#..IDN,MA,TH |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87103-BZ140 |
F65#..IDN,MA,TH |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ150 |
F653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,TH);F654..(SPO,STD)..(IDN,MA) |
1 | ||
| 88515-BZ150 |
F653,654..IDN,MA,TH |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F653,654..RHD |
2 | ||
| C9909-97201 |
F65#..RHD |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 87103-BZ170 |
F65#..IDN ASSY,NO.88510BZ262 |
1 | ||
| 87103-BZ100 |
F653,654..IDN,MA,TH |
1 | ||
| 87103-BZ180 |
F65#..IDN,MA,TH ASSY,NO.88510BZ292 |
1 | ||
| 87103-BZ170 |
F65#..IDN ASSY,NO.88510BZ291 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-BZ050 |
F65#..IDN,MA,TH |
1 | ||
| 88568-BZ050 |
F653,654..IDN |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ570 |
F653,654..RHD |
1 | ||
| 88578-BZ570 |
F65#..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ060 |
F65#..RHD |
1 | ||
| 88625-BZ060 |
F653,654..RHD |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F653,654 |
1 | ||
| 15188-87402 |
F65#..IDN,MA,TH |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F653,654 |
1 | ||
| 15188-87403 |
F65#..IDN,MA,TH |
1 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
