F653RM-GMRFN (2015)
Toyota Avanza

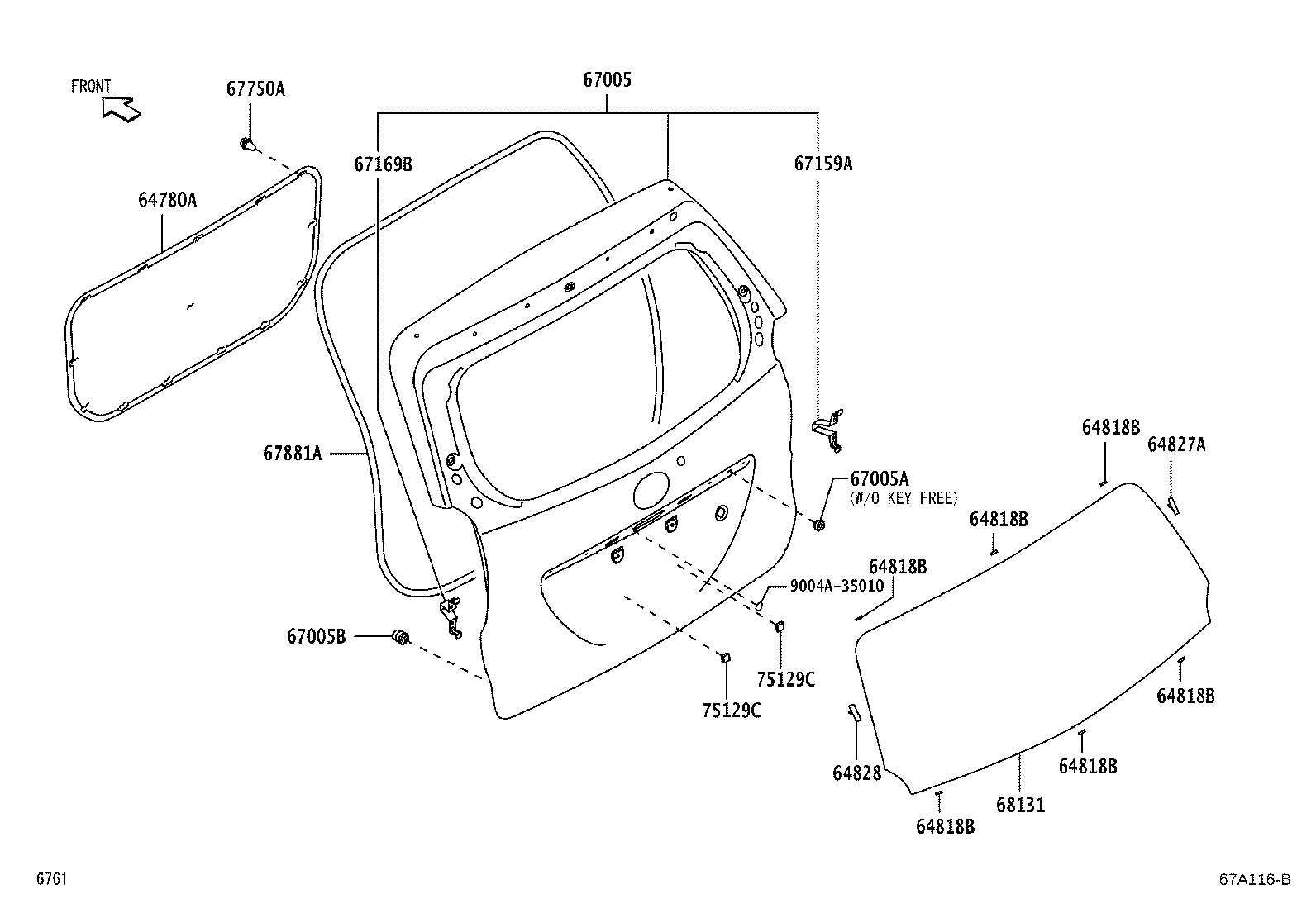

ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH
BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-BZ140B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ050 |
F65# |
6 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-BZ050 |
F65# |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-BZ020 |
F65# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-BZ580 |
F653..GEN,SA;F654..STD..(GEN,SA,TH) |
1 | ||
| 67005-BZD80 |
F653..GEN,SA;F654..4AT..STD..(SA,TH);F654..5F..STD..(GEN,SA) |
1 | ||
| 67005-BZD80 |
F653..5F..(GEN,SA);F654..STD..(SA,TH) |
1 | ||
| 67005A - PLUG, HOLE(FOR BACK DOOR PANEL) | ||||
| 90048-71238 |
F65# |
1 | ||
| 90048-71238 |
F65#..LO,MID,STD,VB;F654..SPO..(MA,PHL) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 9004A-54016 |
F65# |
4 | ||
| 67159A - EXTENSION, BACK DOOR, INNER RH | ||||
| 67159-BZ030 |
F65# |
1 | ||
| 67169B - EXTENSION, BACK DOOR, INNER LH | ||||
| 67159-BZ030 |
F65# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 67771-BZ060 |
F65# |
14 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-BZ140 |
F65# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-BZ211 |
F653..GEN,SA;F654..SPO,STD;F653..STD..PHL;F654..MID..(GCC,GEN,MXC,PHL,SA,TH) W/ DEFOGGER |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-BZ010 |
F65# |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-BZ010 |
F65# |
2 | ||
| Common parts | ||||
| 9004A-35010 | ||||

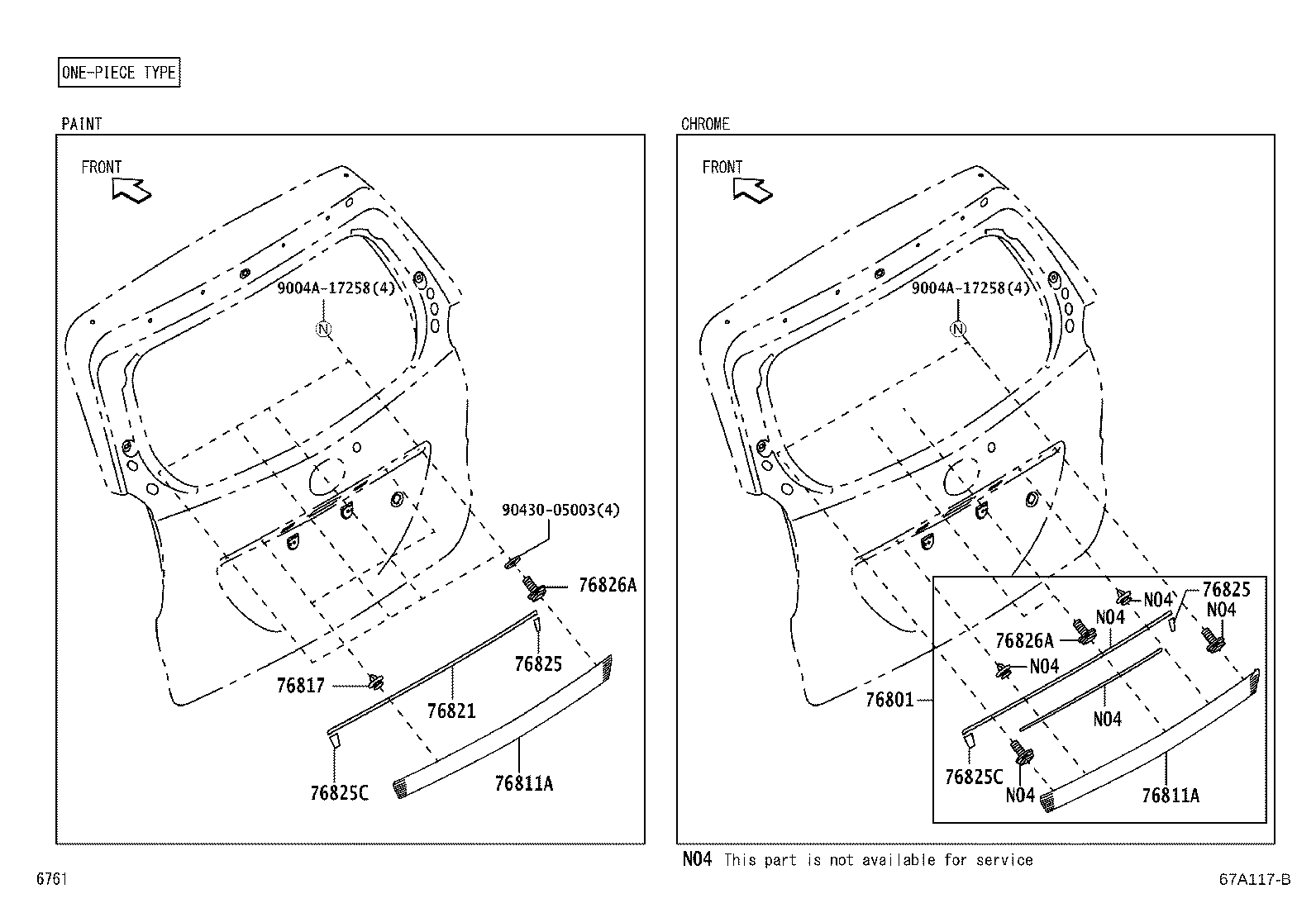

ILLUST NO. 2 OF 2(1901- )STD..IDN ; (1904- )STD..GCC ; (1904- )4AT..STD..IDN ; (1904- )F
BACK DOOR GARNISH(ONE-PIECE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90044-67474 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
2 | ||
| 90044-67474 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76821-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| Common parts | ||||
| 9004A-17258 | ||||
| 90430-05003 | ||||
ILLUST NO. 2 OF 2(1904- )MID,STD..MA,MXC,TH ; (1904- )F653..5F..GEN,PHL,SA
BACK DOOR GARNISH(ONE-PIECE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90044-67474 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
2 | ||
| 90044-67474 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76821-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825-BZ050 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76835-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| 76826-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
4 | ||
| Common parts | ||||
| 9004A-17258 | ||||
| 90430-05003 | ||||

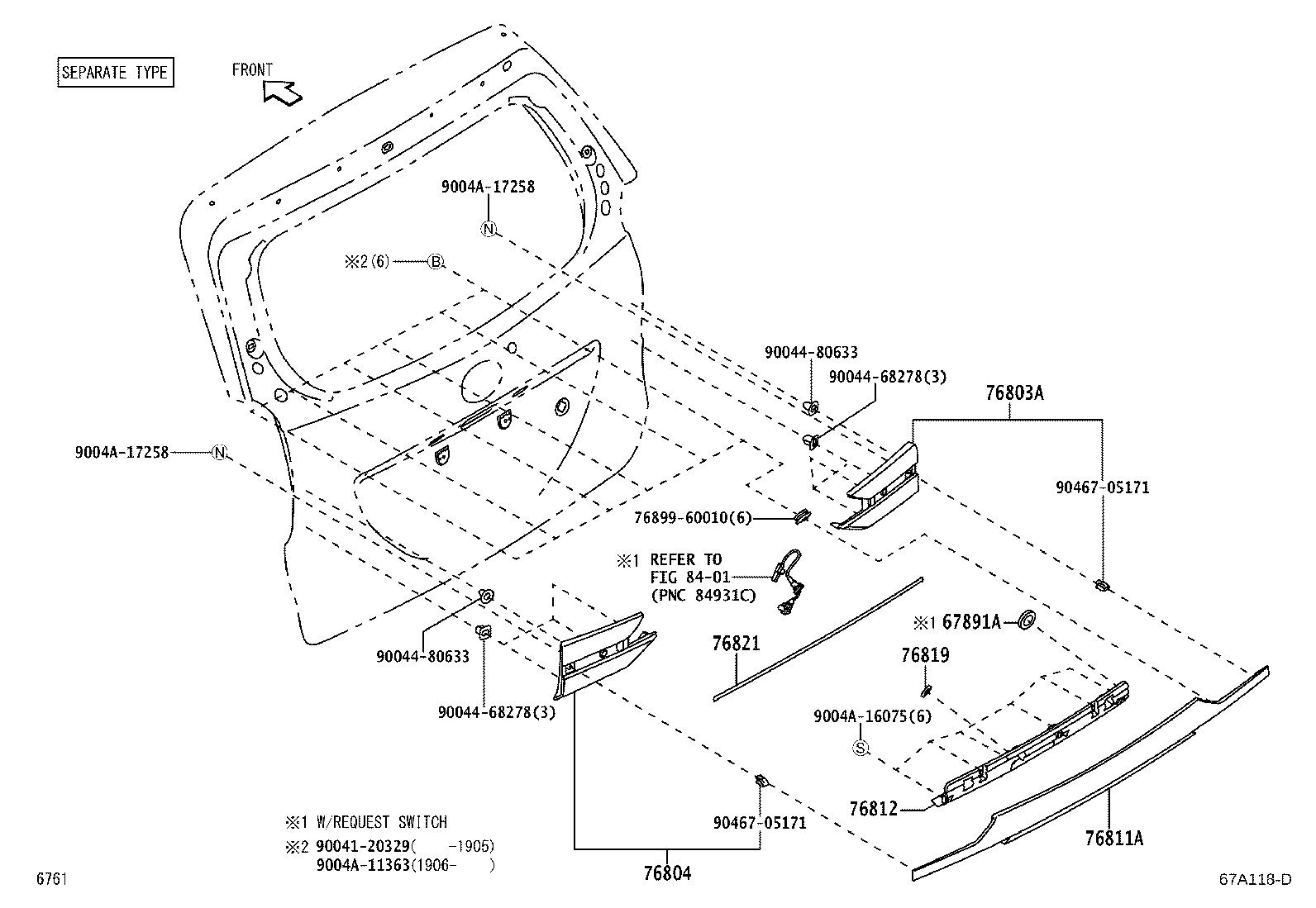

ILLUST NO. 2 OF 2(1901- )MID,SPO..IDN ; (1904- )STD..PHL ;(1904- )F654..STD..GEN ; (1904-
BACK DOOR GARNISH(SEPARATE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-BZ250 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-BZ030 |
F653..LO..PHL;F654..STD..GCC;F654..5F..STD..SA;F654..RHD..4AT..(MID,STD);F653..(LO,STD,VB)..(GEN,IDN,SA) |
1 | ||
| Common parts | ||||
| 76899-60010 | ||||
| 90041-20329 | ||||
| 90044-68278 | ||||
| 90044-80633 | ||||
| 9004A-11363 | ||||
| 9004A-16075 | ||||
| 9004A-17258 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8401 | ||||
