F653LM-GMRF (2015)
Toyota Avanza

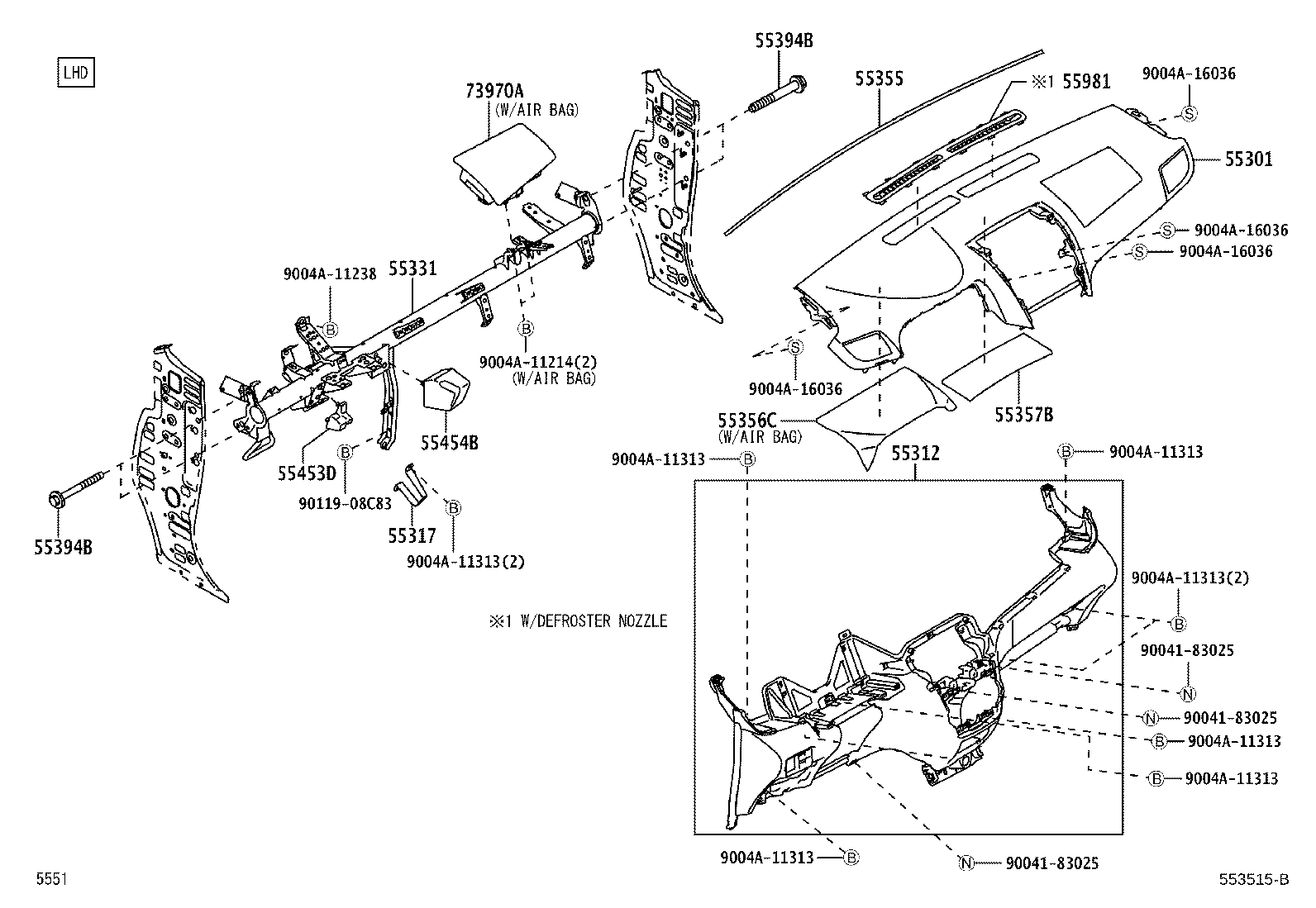

ILLUST NO. 1 OF 2(1508- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-BZ380B0 |
F654..4AT..MXC;F65#..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ381B0 |
F654..4AT..MXC;F65#..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ381B0 |
F654..4AT..MXC;F65#..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-BZ090B0 |
F654..4AT..MXC;F654..5F..(GEN,MXC);F653..LHD..(LO,STD) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ091B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ110B0 |
F654..4AT..MXC;F65#..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ111B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55315-BZ120 |
F65#..LHD |
1 | ||
| 55315-BZ120 |
F65#..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-BZ570 |
F65#..LHD..5F |
1 | ||
| 55305-BZ630 |
F65#..LHD..5F |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55349-BZ140 |
F65# |
1 | ||
| 55355-BZ100 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-BZ122 |
F65#..LHD |
1 | ||
| 55356-BZ122 |
F65#..LHD |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-BZ072 |
F65# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F65# |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F65# |
4 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-B0021 |
F65#..LHD |
1 | ||
| 55453-B0021 |
F65#..LHD |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-B0020 |
F65#..LHD |
1 | ||
| 55454-B0020 |
F65#..LHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-BZ030B0 |
F654..MXC,SA;F654..STD..GEN;F653..5F..(GEN,SA) DK.GRAY,TRIM1# |
1 | ||
| 55981-BZ030B0 |
F654..MXC,SA;F654..STD..GEN;F653..5F..(GEN,SA) DK.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-BZ180B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 73970-BZ180B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-83025 | ||||
| 9004A-11214 | ||||
| 9004A-11238 | ||||
| 9004A-11313 | ||||
| 9004A-16036 | ||||
| 90119-08C83 | ||||

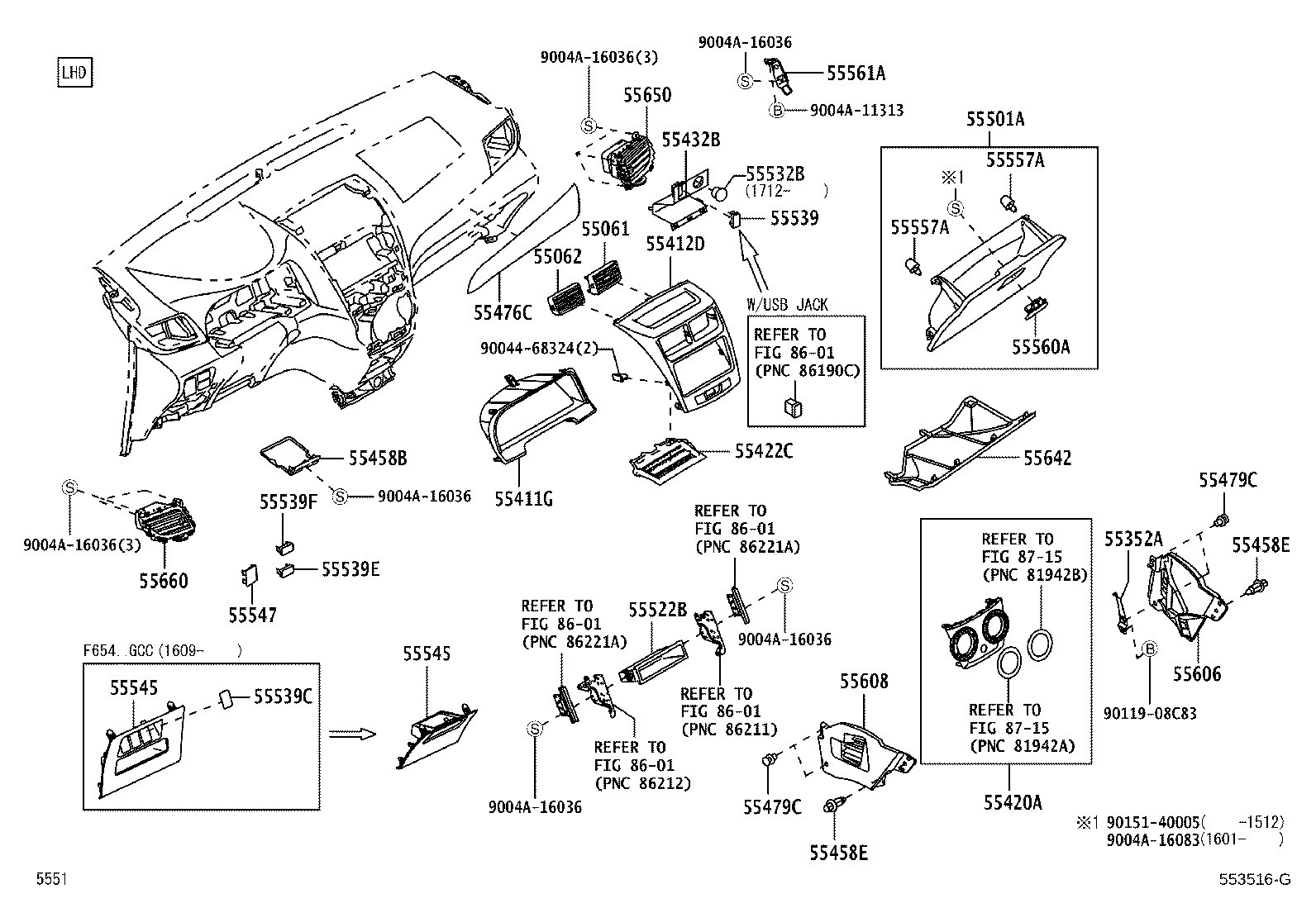

ILLUST NO. 2 OF 2(1508-1904)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-BZ220C1 |
F654..MA,TH;F65#..(LO,STD)..(GEN,PHL) -,TRIM1# |
1 | ||
| 55061-BZ220C1 |
F654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,TH);F653..(LO,STD)..(GEN,MA,PHL) -,TRIM1# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-BZ060C1 |
F654..MA,TH;F65#..(LO,STD)..(GEN,PHL) -,TRIM1# |
1 | ||
| 55062-BZ060C1 |
F654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,TH);F653..(LO,STD)..(GEN,MA,PHL) -,TRIM1# |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-BZ050 |
F65#..LHD |
1 | ||
| 55352-BZ050 |
F65#..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-BZA90C0 |
F654..MXC;F65#..(LO,STD,VB)..(GEN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55412-BZ850C0 |
F654..MID..(MXC,TH);F654..STD..(GEN,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-BZ200C2 |
F654..MXC;F653..LO..GEN;F65#..STD..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-BZ080B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-BZ020C0 |
F653..SPO;F654..5F..PHL;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-BZ030B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) SILVER,TRIM1# |
1 | ||
| 55476-BZ030B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) SILVER,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-BZ070B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ070B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ070B1 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-BZ070 |
F654..4AT..MXC;F653..LHD..(LO,MID);F65#..5F..(MID,STD)..(GEN,MXC) |
1 | ||
| 55522-BZ070 |
F654..4AT..MXC;F653..LHD..(LO,MID);F65#..5F..(MID,STD)..(GEN,MXC) |
1 | ||
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-BZ010C1 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ090C0 |
F653..GEN,PHL,SA;F654..5F..(MXC,PHL);F654..(SPO,STD)..(GEN,MA,PHL,SA);F654..4AT..(MID,STD)..(MXC,PHL,TH) BLACK |
1 | ||
| 55539-B2030C1 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK |
1 | ||
| 55539-BZ090C0 |
F65#..GCC,GEN,IDN,MXC,PHL,SA,TH BLACK |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ020C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ020C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-BZ080B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55545-BZ080B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-BZ080B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55545-BZ080B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010B1 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55547-BZ030B0 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55547-BZ030C1 |
F653..LO,VB BLACK,TRIM1# |
1 | ||
| 55547-BZ030B0 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-BZ050B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55560-BZ050C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-BZ090 |
F65#..LHD |
1 | ||
| 55561-BZ090 |
F65#..LHD |
1 | ||
| 55561-BZ091 |
F65#..LHD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-BZ170C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-BZ110C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-BZ131C0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55642-BZ131C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55642-BZ131C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-BZ130C1 |
F654..MID..TH;F654..(MID,SPO)..MA;F65#..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) -,TRIM1# |
1 | ||
| 55650-BZ130C1 |
F654..4AT..(MA,SA,TH);F654..5F..STD..(GEN,SA);F653..(LO,STD,VB)..(GEN,PHL,SA) -,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-BZ040C1 |
F654..MID..TH;F654..(MID,SPO)..MA;F65#..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) -,TRIM1# |
1 | ||
| 55660-BZ040C1 |
F654..4AT..(MA,SA,TH);F654..5F..STD..(GEN,SA);F653..(LO,STD,VB)..(GEN,PHL,SA) -,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68324 | ||||
| 9004A-11313 | ||||
| 9004A-16036 | ||||
| 9004A-16083 | ||||
| 90119-08C83 | ||||
| 90151-40005 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||

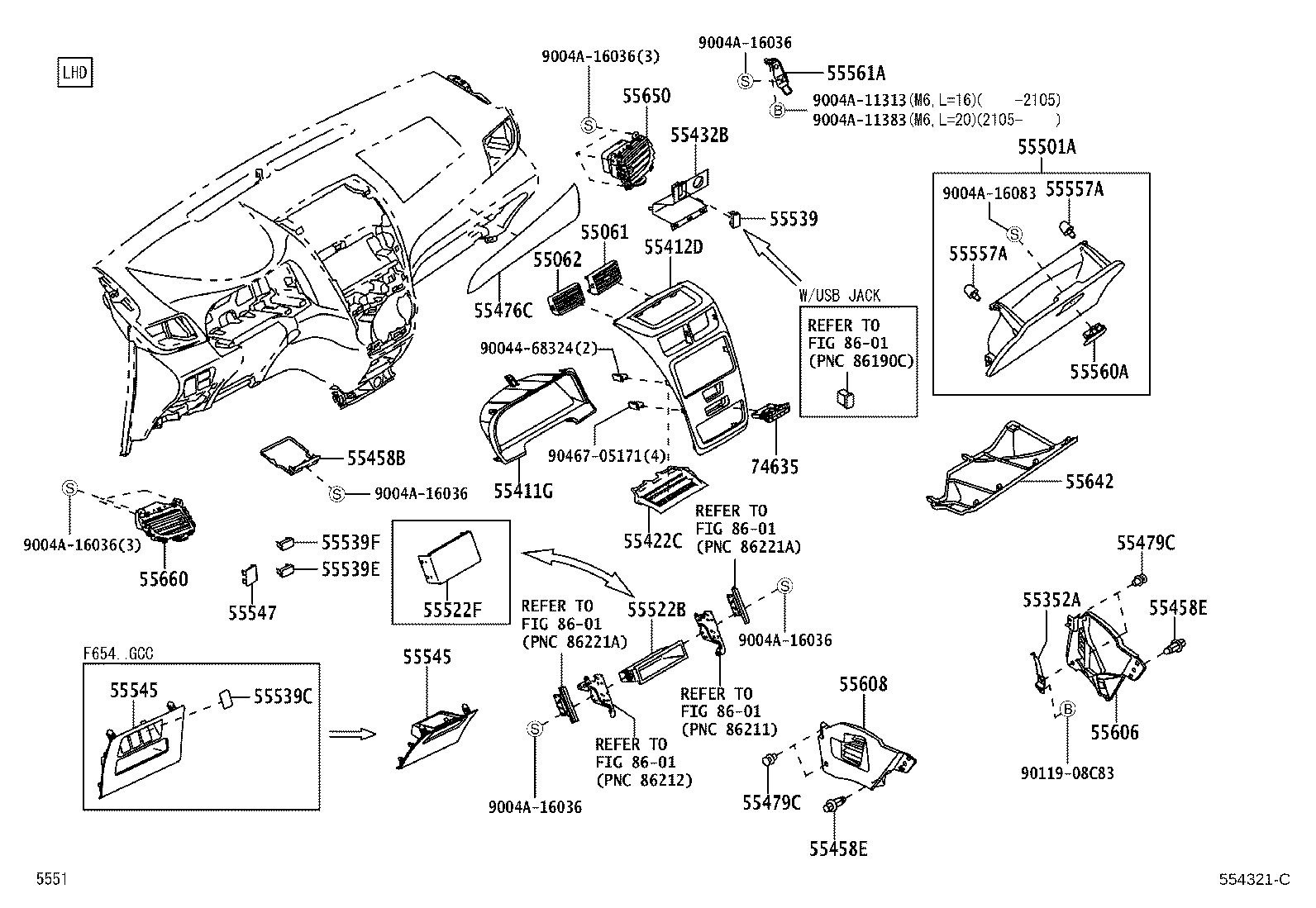

ILLUST NO. 2 OF 2(1904- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-BZ220C1 |
F654..MA,TH;F65#..(LO,STD)..(GEN,PHL) -,TRIM1# |
1 | ||
| 55061-BZ220C1 |
F654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,TH);F653..(LO,STD)..(GEN,MA,PHL) -,TRIM1# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-BZ060C1 |
F654..MA,TH;F65#..(LO,STD)..(GEN,PHL) -,TRIM1# |
1 | ||
| 55062-BZ060C1 |
F654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,TH);F653..(LO,STD)..(GEN,MA,PHL) -,TRIM1# |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-BZ050 |
F65#..LHD |
1 | ||
| 55352-BZ050 |
F65#..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-BZA90C0 |
F654..MXC;F65#..(LO,STD,VB)..(GEN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55412-BZ850C0 |
F654..MID..(MXC,TH);F654..STD..(GEN,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-BZ080B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-BZ020C0 |
F653..SPO;F654..5F..PHL;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-BZ030B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) SILVER,TRIM1# |
1 | ||
| 55476-BZ030B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) SILVER,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-BZ070B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ070B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ070B1 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-BZ070 |
F654..4AT..MXC;F653..LHD..(LO,MID);F65#..5F..(MID,STD)..(GEN,MXC) |
1 | ||
| 55522-BZ070 |
F654..4AT..MXC;F653..LHD..(LO,MID);F65#..5F..(MID,STD)..(GEN,MXC) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ090C0 |
F653..GEN,PHL,SA;F654..5F..(MXC,PHL);F654..(SPO,STD)..(GEN,MA,PHL,SA);F654..4AT..(MID,STD)..(MXC,PHL,TH) BLACK |
1 | ||
| 55539-B2030C1 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK |
1 | ||
| 55539-BZ090C0 |
F65#..GCC,GEN,IDN,MXC,PHL,SA,TH BLACK |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ020C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ020C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC,PHL) BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-BZ080B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55545-BZ080B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-BZ080B0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) DK.GRAY,TRIM1# |
1 | ||
| 55545-BZ080B0 |
F653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL) DK.GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010B1 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55547-BZ030B0 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55547-BZ030C1 |
F653..LO,VB BLACK,TRIM1# |
1 | ||
| 55547-BZ030B0 |
F653..LO,VB DK.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-BZ050B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55560-BZ050C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-BZ090 |
F65#..LHD |
1 | ||
| 55561-BZ090 |
F65#..LHD |
1 | ||
| 55561-BZ091 |
F65#..LHD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-BZ170C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-BZ110C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-BZ131C0 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55642-BZ131C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55642-BZ131C1 |
F654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC) BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-BZ130C1 |
F654..MID..TH;F654..(MID,SPO)..MA;F65#..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) -,TRIM1# |
1 | ||
| 55650-BZ130C1 |
F654..4AT..(MA,SA,TH);F654..5F..STD..(GEN,SA);F653..(LO,STD,VB)..(GEN,PHL,SA) -,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-BZ040C1 |
F654..MID..TH;F654..(MID,SPO)..MA;F65#..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) -,TRIM1# |
1 | ||
| 55660-BZ040C1 |
F654..4AT..(MA,SA,TH);F654..5F..STD..(GEN,SA);F653..(LO,STD,VB)..(GEN,PHL,SA) -,TRIM1# |
1 | ||
| 74635 - HOLDER, CARD | ||||
| 74635-BZ080C1 |
F654..MXC;F65#..(LO,STD,VB)..(GEN,PHL,SA) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68324 | ||||
| 9004A-11313 | ||||
| 9004A-11383 | ||||
| 9004A-16036 | ||||
| 9004A-16083 | ||||
| 90119-08C83 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
