F652RM-GQMFM (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )4AT

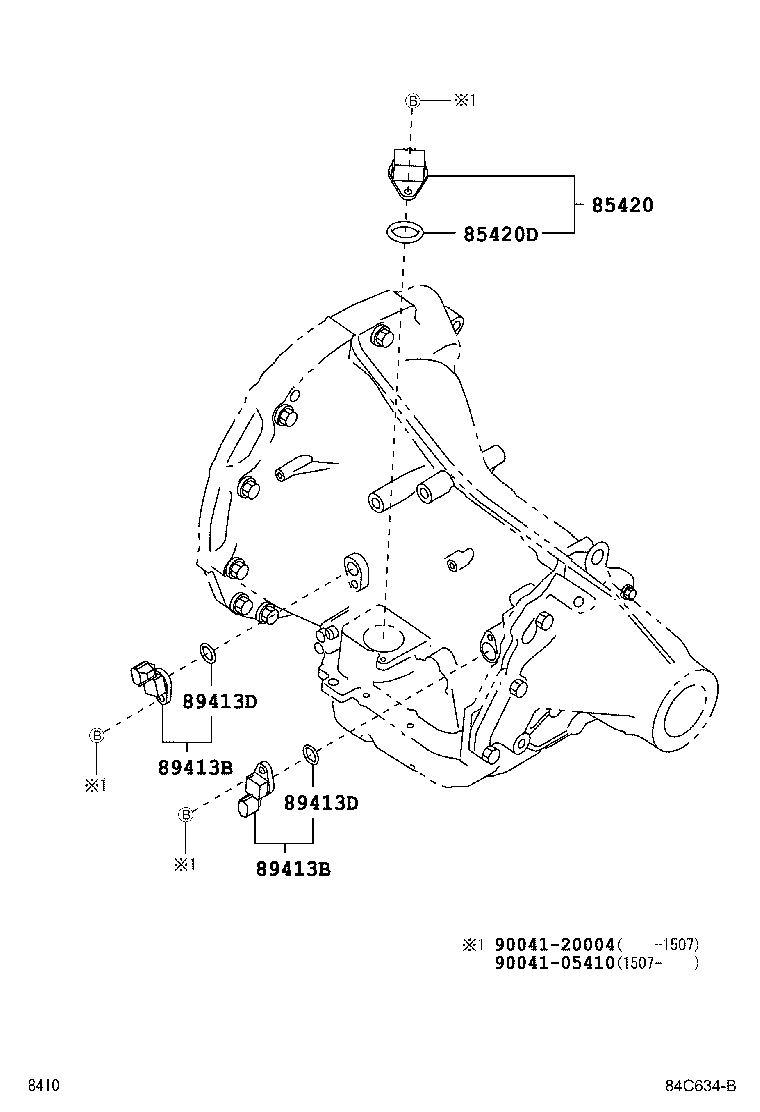

Click highlighted areas on diagram

diagram 85420 85420D 89413B 89413B 89413D 89413D 9004105410 9004120004
Part # Description Qty Price
85420 - SOLENOID ASSY, TRANSMISSION
G1406-97201

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90043-01281

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-97202

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-97202

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

F651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
Common parts
90041-05410
90041-20004
