F652RM-GQMFM (2011)
Toyota Avanza
ILLUST NO. 1 OF 2(1111-1305)
FRONT SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-BZA50C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71071-BZA51C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-BZB00C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71073-BZB01C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-BZ130 |
F65# |
1 | ||
| 71110-BZ131 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71430C - CLIP | ||||
| 90044-68185C0 |
F65# - |
4 | ||
| 90044-68185C0 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH - |
6 | ||
| 71439A - CLIP | ||||
| 9004A-46143 |
F65# |
18 | ||
| 9004A-46143 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
52 | ||
| 71439A - CLIP | ||||
| 9004A-46143 |
F65# |
18 | ||
| 9004A-46143 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
52 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-BZ390 |
F65# |
1 | ||
| 71501-BZ391 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71147-B1020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-BZ281 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71505-BZ280 |
F65# |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71147-B2030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-BZ110B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71811-BZ210B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-BZ791C0 |
F65#..MA BLACK,TRIM1# |
2 | ||
| 71910-BZ812C0 |
F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA) BLACK,TRIM1# |
2 | ||
| 71910-BZ811C0 |
F65#..MA BLACK,TRIM1# |
2 | ||
| 71910-BZ790C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-BZ190 |
F65# |
1 | ||
| 72110-BZ191 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-BZ230 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-BZ040 |
F65#..MA |
1 | ||
| 72137-BZ040 |
F65#..MA |
2 | ||
| 72137-BZ040 |
F651,652..MA |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-BZ040 |
F65#..MA |
1 | ||
| 72137-BZ040 |
F65#..MA |
2 | ||
| 72137-BZ040 |
F651,652..MA |
2 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72925-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH RH SEAT-OUTER |
1 | ||
| 72926-BZ010 |
F651..GEN,MA,PHL,SA;F652..GEN,MA,MXC,SA,TH LH SEAT-INNER |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72925-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH LH SEAT-OUTER |
1 | ||
| 72926-BZ010 |
F651..GEN,MA,PHL,SA;F652..GEN,MA,MXC,SA,TH RH SEAT-INNER |
1 | ||
| 73949 - CAP | ||||
| 73949-BZ050 |
F65# |
2 | ||
| 73949 - CAP | ||||
| 73949-BZ050 |
F65# |
2 | ||
| Common parts | ||||
| 71023-BZ010 | ||||
| 72585-BZ010 | ||||
| 84139-B1010 | ||||
| 90044-63270 | ||||
| 90179-08068 | ||||
| 90520-01002 | ||||
| 91551-80820 | ||||
| 91553-10820 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(1111-1305)
FRONT SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-BZA60C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71072-BZA61C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-BZ790C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71074-BZ791C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-BZ101 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71120-BZ100 |
F65# |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71430C - CLIP | ||||
| 90044-68185C0 |
F65# - |
4 | ||
| 90044-68185C0 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH - |
6 | ||
| 71439A - CLIP | ||||
| 9004A-46143 |
F65# |
18 | ||
| 9004A-46143 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
52 | ||
| 71439A - CLIP | ||||
| 9004A-46143 |
F65# |
18 | ||
| 9004A-46143 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
52 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-BZ390 |
F65# |
1 | ||
| 71501-BZ391 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71147-B1020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-BZ210 |
F65# |
1 | ||
| 71506-BZ211 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71147-B2030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-BZ090B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71812-BZ170B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-BZ090B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-BZ791C0 |
F65#..MA BLACK,TRIM1# |
2 | ||
| 71910-BZ812C0 |
F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA) BLACK,TRIM1# |
2 | ||
| 71910-BZ811C0 |
F65#..MA BLACK,TRIM1# |
2 | ||
| 71910-BZ790C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-BZ201 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 72120-BZ200 |
F65# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-BZ040 |
F65#..MA |
3 | ||
| 72137-BZ040 |
F651,652..MA |
2 | ||
| 72137-BZ040 |
F65#..MA |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-BZ040 |
F65#..MA |
3 | ||
| 72137-BZ040 |
F651,652..MA |
2 | ||
| 72137-BZ040 |
F65#..MA |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-BZ230 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-BZ100B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72925-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH RH SEAT-OUTER |
1 | ||
| 72926-BZ010 |
F651..GEN,MA,PHL,SA;F652..GEN,MA,MXC,SA,TH LH SEAT-INNER |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72925-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH LH SEAT-OUTER |
1 | ||
| 72926-BZ010 |
F651..GEN,MA,PHL,SA;F652..GEN,MA,MXC,SA,TH RH SEAT-INNER |
1 | ||
| 73949 - CAP | ||||
| 73949-BZ050 |
F65# |
2 | ||
| 73949 - CAP | ||||
| 73949-BZ050 |
F65# |
2 | ||
| Common parts | ||||
| 71024-BZ010 | ||||
| 72585-BZ010 | ||||
| 84139-B1010 | ||||
| 90044-63270 | ||||
| 90179-08068 | ||||
| 90520-01002 | ||||
| 91551-80820 | ||||
| 91553-10820 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(1111-1312)MA ; (1111-1507)IDN ; (1111-1508)F651..STD,VB..SA ; (1111-1508)F652..GCC

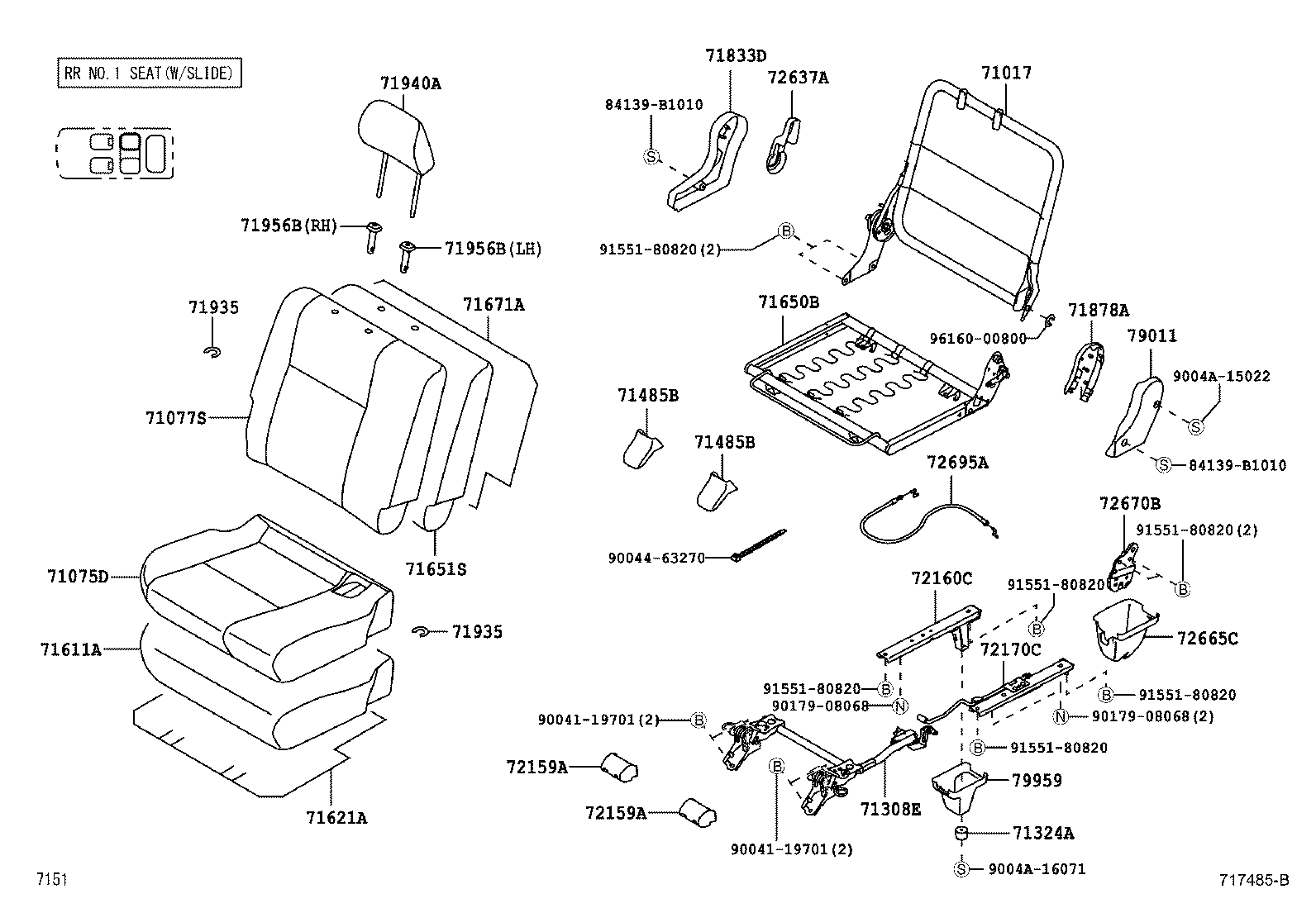

RR NO.1 SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-BZ180 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71075D - COVER SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71075-BZ890C0 |
F652..SPO,STD;F651..STD..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71075-BZ891C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71075-BZC50C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-BZ710C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 71077-BZ712C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71077-BZ711C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71077-BZB00C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-BZ110 |
F65#..MA |
1 | ||
| 71308-BZ060 |
F651,652..MA |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 72179-BZ030 |
F65#..MA |
2 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-BZ271 |
F65#..MA |
1 | ||
| 71503-BZ270 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71503-BZ400 |
F651,652..MA |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-BZ030 |
F651,652..MA |
1 | ||
| 71650-BZ020 |
F65#..MA |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-BZ220 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71507-BZ221 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71671A - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71833D - COVER REAR SEAT RECLINING, RH | ||||
| 71833-BZ050B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-BZ010B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ230C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ531C0 |
F651,652..(LO,MID,SPO,STD)..(MA,SA) BLACK,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72160-BZ040 |
F65#..MA |
1 | ||
| 72160-BZ060 |
F651,652..MA |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-BZ060 |
F651,652..MA |
1 | ||
| 72170-BZ040 |
F65#..MA |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-BZ070B0 |
F65#..MA DK.GRAY,TRIM1# |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-BZ050 |
F65#..MA |
1 | ||
| 72670-BZ070 |
F651,652..MA |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-BZ060 |
F65#..MA |
2 | ||
| 72695-BZ080 |
F651,652..MA |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-BZ030B0 |
F65#..MA DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19701 | ||||
| 90044-63270 | ||||
| 9004A-15022 | ||||
| 9004A-16071 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(1111-1312)MA ; (1111-1507)IDN ; (1111-1508)F651..STD,VB..SA ; (1111-1508)F652..GCC

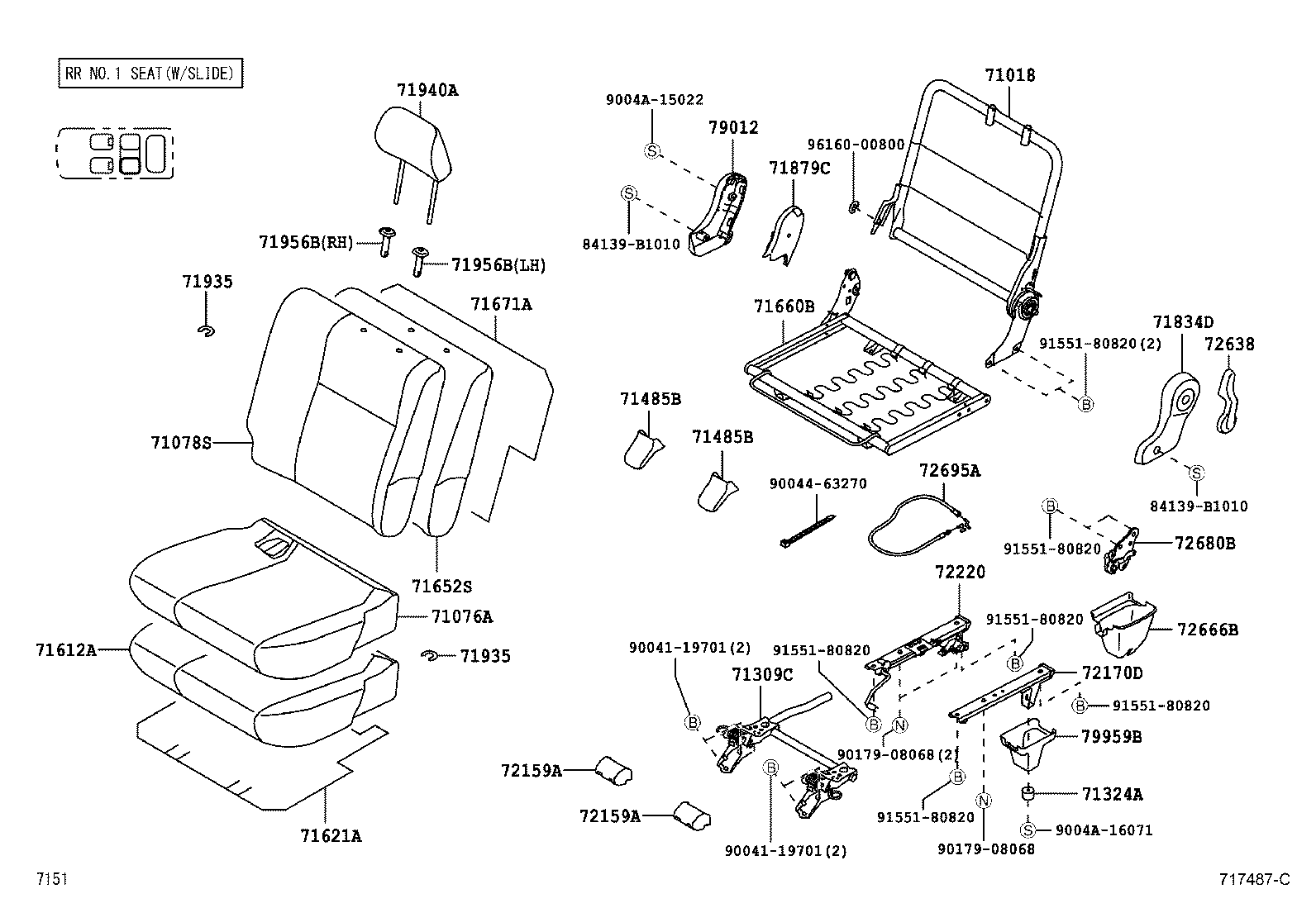

RR NO.1 SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-BZ130 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71076A - COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH | ||||
| 71076-BZ700C0 |
F652..SPO,STD;F651..STD..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71076-BZ701C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71076-BZA10C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-BZ600C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 71078-BZ601C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71078-BZ602C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71078-BZ830C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-BZ070 |
F651,652..MA |
1 | ||
| 71309-BZ110 |
F65#..MA |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 72179-BZ030 |
F65#..MA |
2 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-BZ221 |
F65#..MA |
1 | ||
| 71504-BZ330 |
F651,652..MA |
1 | ||
| 71504-BZ220 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-BZ180 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71508-BZ181 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-BZ020 |
F65#..MA |
1 | ||
| 71660-BZ030 |
F651,652..MA |
1 | ||
| 71671A - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71834D - COVER, REAR SEAT RECLINING, LH | ||||
| 71834-BZ060B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-BZ010B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ230C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ531C0 |
F651,652..(LO,MID,SPO,STD)..(MA,SA) BLACK,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72210-BZ060 |
F651,652..MA |
1 | ||
| 72210-BZ040 |
F65#..MA |
1 | ||
| 72220 - TRACK ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72220-BZ050 |
F651,652..MA |
1 | ||
| 72220-BZ030 |
F65#..MA |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72637-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-BZ050B0 |
F65#..MA DK.GRAY,TRIM1# |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-BZ140 |
F65#..MA |
1 | ||
| 72680-BZ170 |
F651,652..MA |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-BZ060 |
F65#..MA |
2 | ||
| 72695-BZ080 |
F651,652..MA |
2 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-BZ030B0 |
F65#..MA DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19701 | ||||
| 90044-63270 | ||||
| 9004A-15022 | ||||
| 9004A-16071 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||
| 96160-00800 | ||||
(1111-1312)F652 ; (1111-1312)STD..PHL ; (1111-1312)F651..LO,MID,STD..GEN,IDN,MA,SA
RR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-BZ050 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71304-BZ040 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 78980-BZ070B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
1 | ||
| 71462 - SPRING, REAR SEAT CUSHION, NO.2 | ||||
| 71462-BZ070 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
2 | ||
| 71462 - SPRING, REAR SEAT CUSHION, NO.2 | ||||
| 71462-BZ070 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-BZ060B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-BZ070 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-BZ080 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
2 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-BZ080 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
2 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
1 | ||
| 71846E - CAP, REAR SEAT COVER, LH | ||||
| 71845-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71936 - CLIP | ||||
| 9004A-46143 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
25 | ||
| 9004A-46143 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
28 | ||
| 71936 - CLIP | ||||
| 9004A-46143 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
25 | ||
| 9004A-46143 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
28 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ460C1 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ461 |
F65#..MA |
2 | ||
| 71940-BZ750C0 |
F651,652..MA BLACK,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ460C1 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ461 |
F65#..MA |
2 | ||
| 71940-BZ750C0 |
F651,652..MA BLACK,TRIM1# |
2 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
1 | ||
| 72680C - LOCK ASSY, REAR SEAT CUSHION, NO.2 LH | ||||
| 72680-BZ070 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-BZ570C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79021-BZ571C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79021-BZ670C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-BZ540C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79023-BZ541C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-BZ071C0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79024-BZ070C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-BZ150 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79037-BZ130 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79038-BZ030 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90044-67579B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90044-67579B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79107D - LEG SUB-ASSY, NO.2 SEAT, REAR | ||||
| 79206-BZ050 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79165 - BRACKET, NO.3 SEAT LEG, REAR RH | ||||
| 79318-BZ010 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79318-BZ020 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79166 - BRACKET, NO.3 SEAT LEG, REAR LH | ||||
| 79328-BZ020 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79328-BZ010 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79225B - CARPET, REAR NO.2 SEAT CUSHION, LH | ||||
| 79225-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-BZ070B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79236-BZ040B0 |
F652..SPO,STD;F651..STD..PHL;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-BZ070B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79236-BZ040B0 |
F652..SPO,STD;F651..STD..PHL;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-BZ120 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79303-BZ170 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-BZ030 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79304-BZ080 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-BZ020 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79360-BZ040 |
F652;F651..STD..PHL;F651..(LO,MID,STD)..(GEN,IDN,MA,SA) |
1 | ||
| 79360-BZ041 |
F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,SA,TH;F651..(LO,MID,STD)..(GEN,MA,SA) |
1 | ||
| 79893 - CUSHION, FOLD SEAT LEG | ||||
| 79893-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
2 | ||
| 79893 - CUSHION, FOLD SEAT LEG | ||||
| 79893-BZ010 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(GCC,MA,MXC,SA,TH) |
2 | ||
| 79952 - COVER, NO.2 SEAT CUSHION | ||||
| 79952-BZ040B0 |
F651..STD..PHL;F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,SA) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 21552-BZ010 | ||||
| 21814-BZ020 | ||||
| 47779-BZ010 | ||||
| 71331-BZ030 | ||||
| 71331-BZ040 | ||||
| 84139-B1010 | ||||
| 90041-19701 | ||||
| 9004A-16038 | ||||
| 9004A-16071 | ||||
| 91551-80820 | ||||
| 96160-00600 | ||||

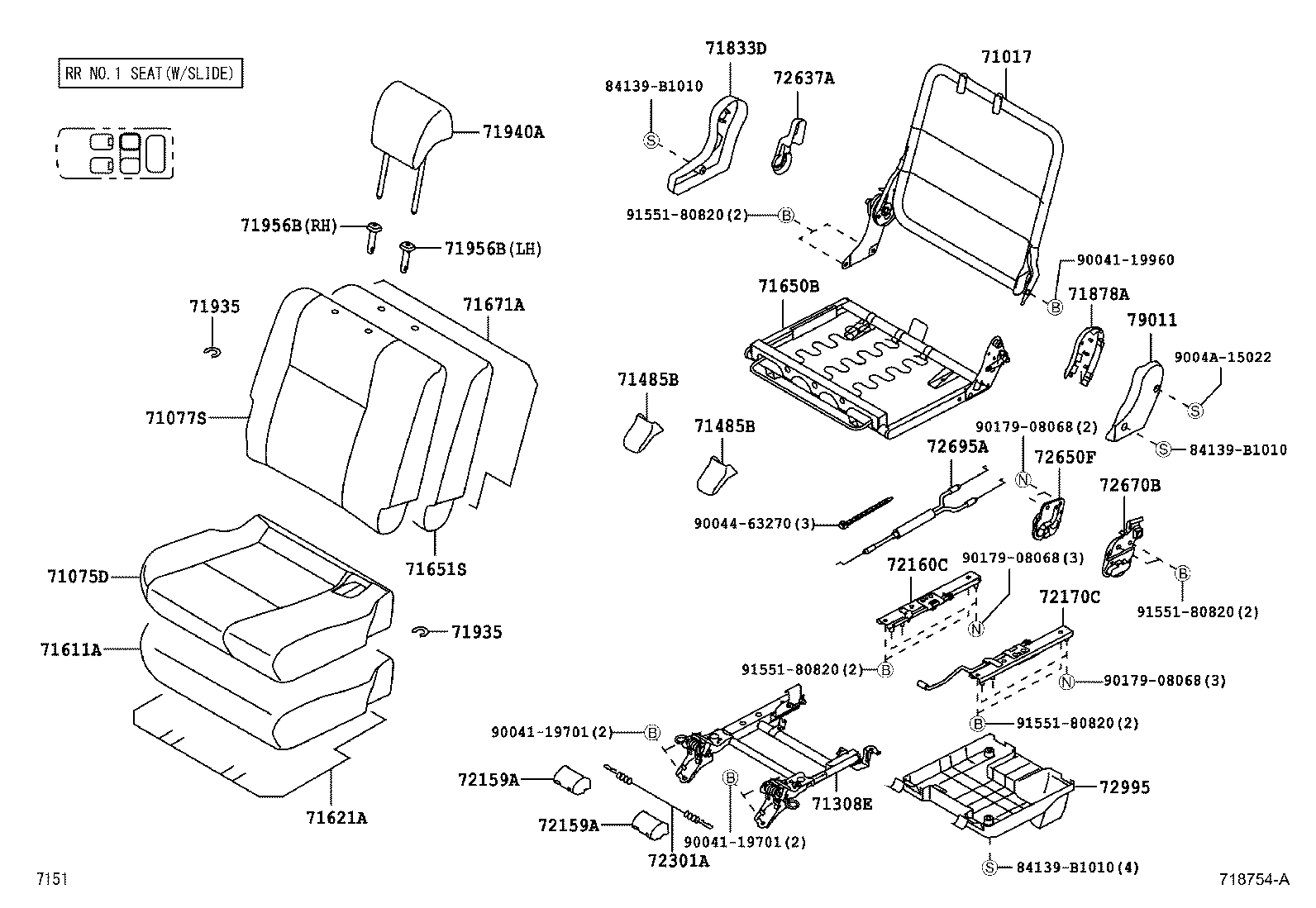

ILLUST NO. 1 OF 2(1312-1508)MA
RR NO.1 SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-BZ180 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71075D - COVER SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71075-BZ890C0 |
F652..SPO,STD;F651..STD..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71075-BZ891C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71075-BZC50C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-BZ710C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 71077-BZ712C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71077-BZ711C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71077-BZB00C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-BZ110 |
F65#..MA |
1 | ||
| 71308-BZ060 |
F651,652..MA |
1 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-BZ271 |
F65#..MA |
1 | ||
| 71503-BZ270 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71503-BZ400 |
F651,652..MA |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-BZ030 |
F651,652..MA |
1 | ||
| 71650-BZ020 |
F65#..MA |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-BZ220 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71507-BZ221 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71671A - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71833D - COVER REAR SEAT RECLINING, RH | ||||
| 71833-BZ050B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-BZ010B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ230C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ531C0 |
F651,652..(LO,MID,SPO,STD)..(MA,SA) BLACK,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72160-BZ040 |
F65#..MA |
1 | ||
| 72160-BZ060 |
F651,652..MA |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-BZ060 |
F651,652..MA |
1 | ||
| 72170-BZ040 |
F65#..MA |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-BZ040 |
F651,652..MA |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72670-BZ081 |
F651,652..MA |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-BZ050 |
F65#..MA |
1 | ||
| 72670-BZ070 |
F651,652..MA |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-BZ060 |
F65#..MA |
2 | ||
| 72695-BZ080 |
F651,652..MA |
2 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-BZ180B0 |
F651,652..MA DK.GRAY,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19701 | ||||
| 90041-19960 | ||||
| 90044-63270 | ||||
| 9004A-15022 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||

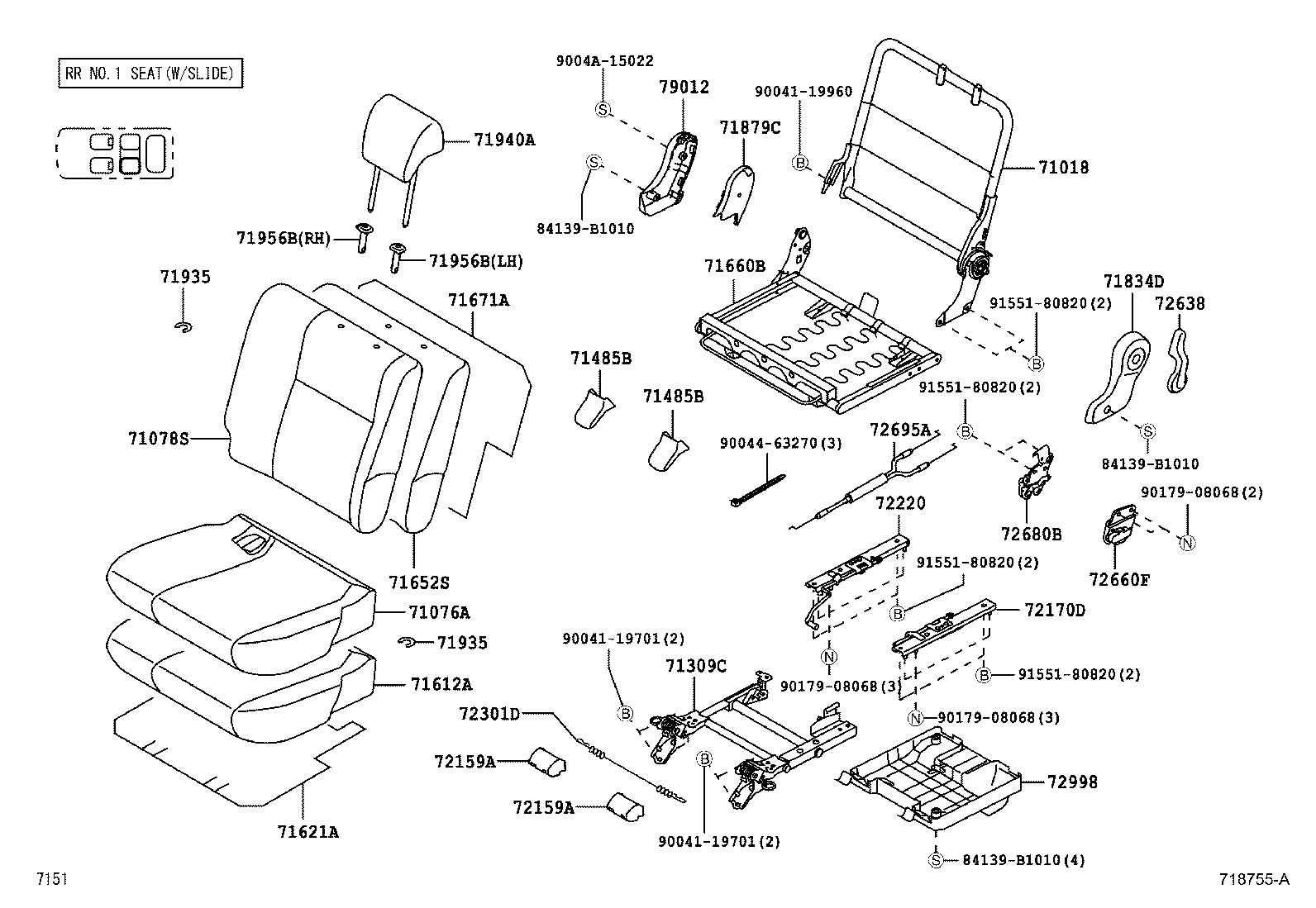

ILLUST NO. 2 OF 2(1312-1508)MA
RR NO.1 SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-BZ130 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71076A - COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH | ||||
| 71076-BZ700C0 |
F652..SPO,STD;F651..STD..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71076-BZ701C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71076-BZA10C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-BZ600C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 71078-BZ601C0 |
F652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH) BLACK,TRIM1# |
1 | ||
| 71078-BZ602C0 |
F65#..MA BLACK,TRIM1# |
1 | ||
| 71078-BZ830C0 |
F651,652..MA BLACK,TRIM1# |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-BZ070 |
F651,652..MA |
1 | ||
| 71309-BZ110 |
F65#..MA |
1 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-BZ221 |
F65#..MA |
1 | ||
| 71504-BZ330 |
F651,652..MA |
1 | ||
| 71504-BZ220 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-BZ180 |
F65#..LO,MID,SPO,STD |
1 | ||
| 71508-BZ181 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-BZ020 |
F65#..MA |
1 | ||
| 71660-BZ030 |
F651,652..MA |
1 | ||
| 71671A - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-BZ040 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
2 | ||
| 71834D - COVER, REAR SEAT RECLINING, LH | ||||
| 71834-BZ060B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-BZ010B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71935 - CLIP | ||||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
34 | ||
| 9004A-46143 |
F65#..GEN,IDN,MA,MXC,PHL,TH |
28 | ||
| 9004A-46143 |
F651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH) |
72 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-BZ230C0 |
F651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
2 | ||
| 71940-BZ531C0 |
F651,652..(LO,MID,SPO,STD)..(MA,SA) BLACK,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-BZ040B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W(LOCK),DK.GRAY,TRIM1#,LH |
2 | ||
| 71931-BZ030B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) W/O(LOCK),DK.GRAY,TRIM1#,RH |
2 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-BZ010B0 |
F65#..(MID,SPO,STD)..(MA,SA) DK.GRAY,TRIM1# |
4 | ||
| 72159-BZ011B0 |
F651..LO..PHL;F652..MA,MXC,SA,TH;F651..STD..(MA,PHL,SA) DK.GRAY,TRIM1# |
4 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72210-BZ060 |
F651,652..MA |
1 | ||
| 72210-BZ040 |
F65#..MA |
1 | ||
| 72220 - TRACK ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72220-BZ050 |
F651,652..MA |
1 | ||
| 72220-BZ030 |
F65#..MA |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-BZ040 |
F651,652..MA |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72637-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72680-BZ181 |
F651,652..MA |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-BZ140 |
F65#..MA |
1 | ||
| 72680-BZ170 |
F651,652..MA |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-BZ060 |
F65#..MA |
2 | ||
| 72695-BZ080 |
F651,652..MA |
2 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-BZ060B0 |
F651,652..MA DK.GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-BZ020B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19701 | ||||
| 90041-19960 | ||||
| 90044-63270 | ||||
| 9004A-15022 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
