F652RM-GQMFM (2011)
Toyota Avanza

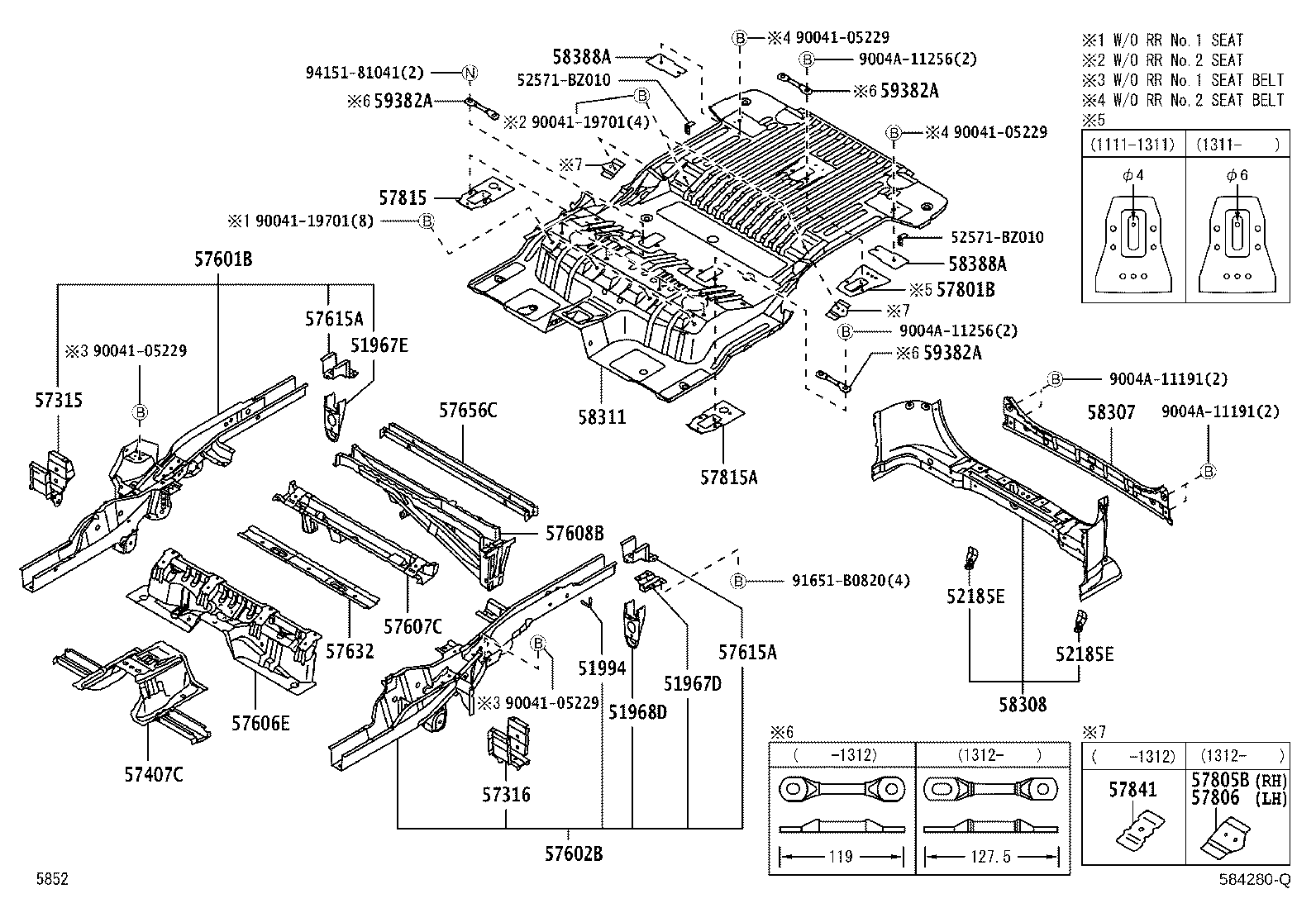

(1111-1312)MA ; (1111-1508)F651,652..GCC,GEN,IDN,MXC,PHL,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51095-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51096-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51994 - HANGER, EXHAUST PIPE, NO.4 | ||||
| 51994-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-BZ130 |
F651,652..MA,PHL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-BZ120 |
F651,652..MA,PHL |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-BZ191 |
F651,652..MA,PHL |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-BZ201 |
F651,652..MA,PHL |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ130 |
F651,652..MA,PHL |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ180 |
F652..(MID,SPO)..(MA,PHL) |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57801B - REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57801-BZ011 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57801-BZ010 |
F65# |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-BZ070 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-BZ050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-BZ021 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57815A - REINFORCEMENT, BELT ANCHOR, RH | ||||
| 57807-BZ011 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-BZ040 |
F65# |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58377-BZ030 |
F651,652..MA;F652..SPO..TH |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-BZ120 |
F651,652..(MID,SPO,STD)..(MA,PHL) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-BZ290 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 58311-BZ170 |
F652;F651..STD..PHL;F651..MID..GEN;F651..RHD..(LO,MID,STD) |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| Common parts | ||||
| 52571-BZ010 | ||||
| 90041-05229 | ||||
| 90041-19701 | ||||
| 9004A-11191 | ||||
| 9004A-11256 | ||||
| 91651-B0820 | ||||
| 94151-81041 | ||||

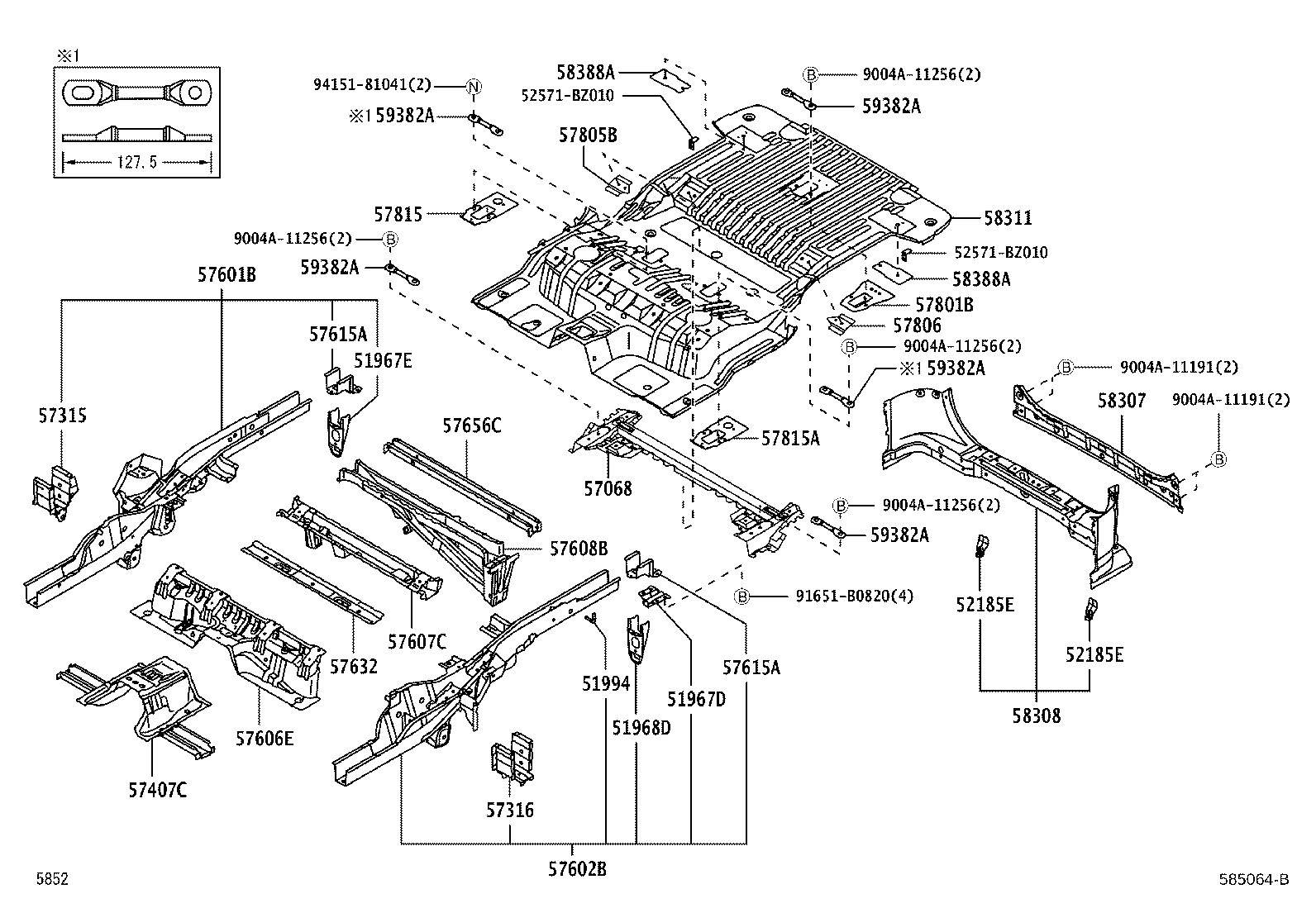

(1312-1508)MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51095-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51096-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 51994 - HANGER, EXHAUST PIPE, NO.4 | ||||
| 51994-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-BZ080 |
F651,652..MA |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-BZ130 |
F651,652..MA,PHL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-BZ120 |
F651,652..MA,PHL |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-BZ191 |
F651,652..MA,PHL |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-BZ201 |
F651,652..MA,PHL |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ130 |
F651,652..MA,PHL |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ180 |
F652..(MID,SPO)..(MA,PHL) |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57801B - REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57801-BZ011 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57801-BZ010 |
F65# |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-BZ070 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-BZ050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-BZ021 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 57815A - REINFORCEMENT, BELT ANCHOR, RH | ||||
| 57807-BZ011 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58377-BZ030 |
F651,652..MA;F652..SPO..TH |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-BZ120 |
F651,652..(MID,SPO,STD)..(MA,PHL) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-BZ290 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 58311-BZ170 |
F652;F651..STD..PHL;F651..MID..GEN;F651..RHD..(LO,MID,STD) |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| 59382A - STRIKER, REAR SEAT LEG LOCK | ||||
| 72692-BZ020 |
F65#..LO,MID,SPO,STD |
2 | ||
| 72692-BZ030 |
F651,652..MA |
4 | ||
| Common parts | ||||
| 52571-BZ010 | ||||
| 9004A-11191 | ||||
| 9004A-11256 | ||||
| 91651-B0820 | ||||
| 94151-81041 | ||||
