F652RM-GMMFN (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1507)SPO..IDN ; (1111-1508)SA ; (1111-1508)MID,SPO..MA,TH

Click highlighted areas on diagram

RHD W/ABS

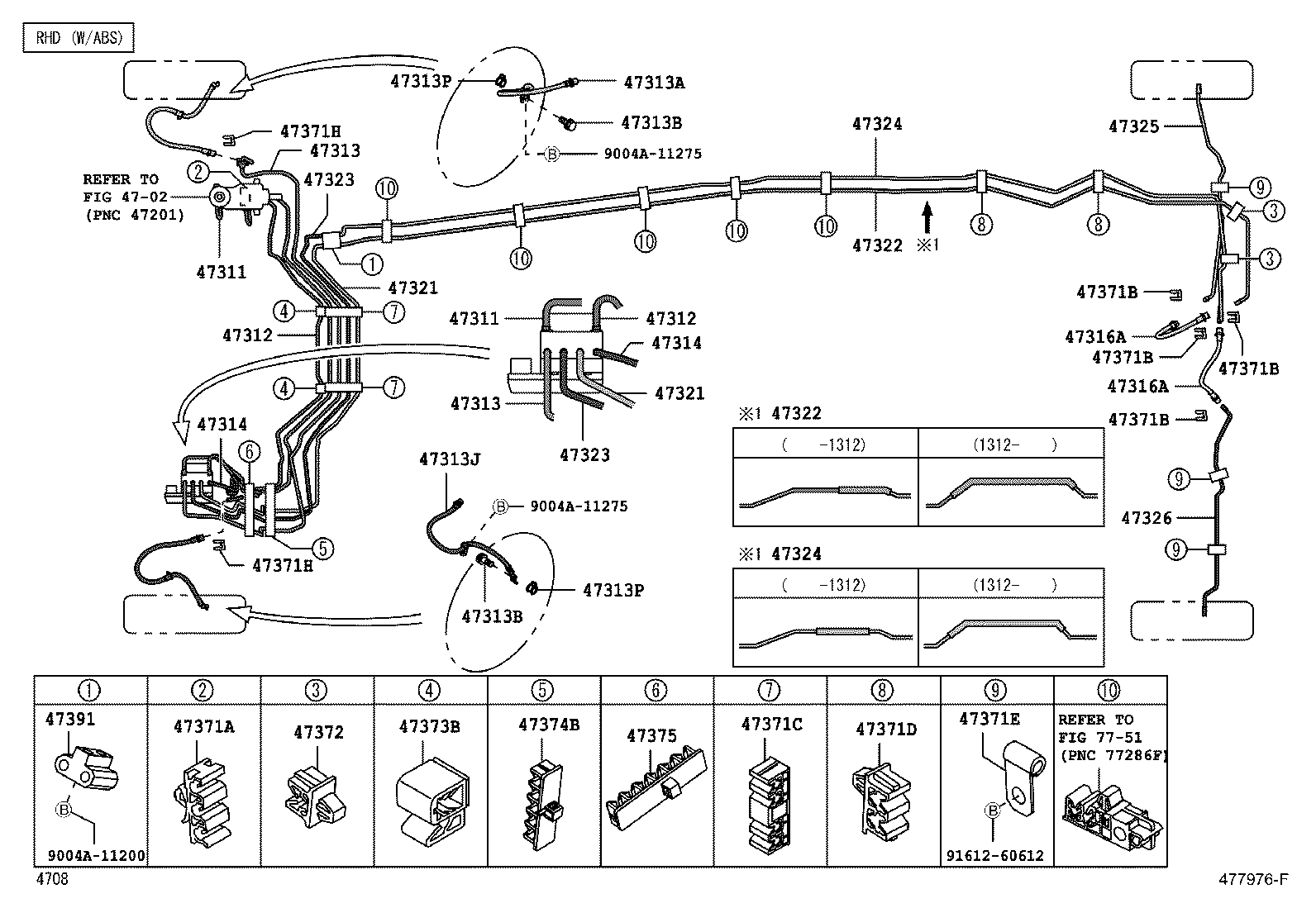

diagram 4702 47311 47311 47312 47312 47313 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47314 47316A 47316A 47321 47321 47322 47322 47323 47323 47324 47324 47325 47326 47371A 47371B 47371B 47371B 47371B 47371C 47371D 47371E 47371H 47371H 47372 47373B 47374B 47375 47391 7751 9004A11200 9004A11275 9004A11275 9161260612
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ330

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ330

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ350

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ350

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ300

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ300

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94106

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

F65#

 2
90401-10058

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

F65#

 2
90401-10058

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
9004A-94102

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

F65#

 2
47389-50020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

F65#

 2
47389-50020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ320

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ320

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ030

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ030

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ011

F651..GEN,PHL,SA;F652..(SPO,STD)..(IDN,SA);F652..(MID,SPO)..(GEN,MA,MXC,PHL,SA,TH)

 1
47322-BZ280

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ011

F651..GEN,PHL,SA;F652..(SPO,STD)..(IDN,SA);F652..(MID,SPO)..(GEN,MA,MXC,PHL,SA,TH)

 1
47322-BZ280

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ140

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ140

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-BZ011

F651..SA;F652..(SPO,STD)..(IDN,SA);F65#..(MID,SPO)..(GEN,MA,PHL,SA,TH)

 1
47324-BZ340

F651..SA;F651..(MID,STD)..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-BZ011

F651..SA;F652..(SPO,STD)..(IDN,SA);F65#..(MID,SPO)..(GEN,MA,PHL,SA,TH)

 1
47324-BZ340

F651..SA;F651..(MID,STD)..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-BZ140

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-BZ160

F651..SA;F652..(SPO,STD)..(IDN,SA);F65#..(MID,SPO)..(GEN,MA,PHL,SA,TH)

 1
47326-BZ161

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
9004A-46290

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 4
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64668

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64713

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 2
47371E - CLAMP, BRAKE TUBE, NO.9
96221-30705

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 3
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
47372 - CLAMP, BRAKE TUBE, NO.2
9004A-46296

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 2
47373B - CLAMP, BRAKE TUBE, NO.3
9004A-46299

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64699

F651,652..SA;F652..(MID,SPO)..(MA,TH)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64596

F651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)

 1
47391 - WAY, BRAKE TUBE
44589-B2010

F652..(MID,SPO)..(MA,TH);F651,652..GCC,GEN,MXC,PHL,SA

 1
Common parts
9004A-11200
9004A-11275
91612-60612
Linked diagrams
4702
7751

(1111-1508)F652..MID,SPO..GCC,GEN,PHL,SA,TH
