F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )STD..PHL ; (1111- )MID..GCC ; (1111- )F651,653..GEN,IDN,MA,SA ; (1

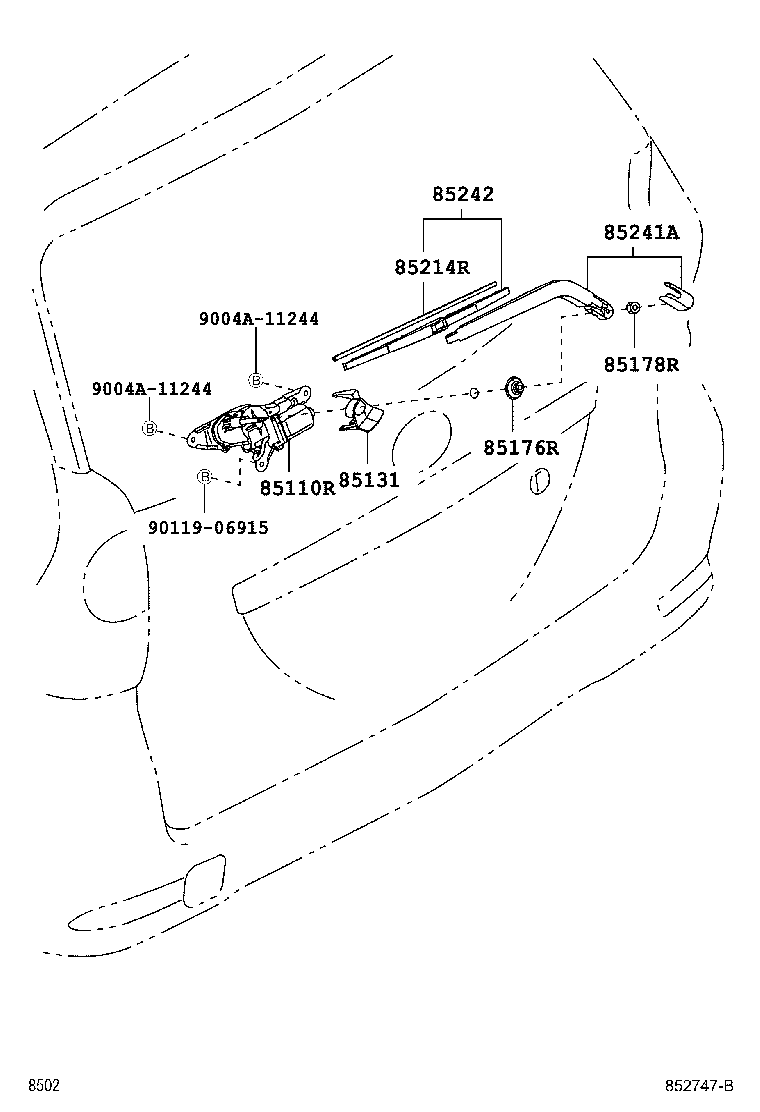

Click highlighted areas on diagram

diagram 85110R 85131 85176R 85178R 85214R 85241A 85242 9004A11244 9004A11244 9011906915
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-BZ130

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85131 - COVER, REAR WIPER MOTOR
85131-BZ020

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85176R - CAP, REAR WIPER LINK
85176-BZ010

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
94130-60640

F651..STD..PHL;F651..GEN,IDN,MA,SA;F652..GEN,IDN,MA,PHL,SA,TH

 1
9004A-17218

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85214R - RUBBER, REAR WIPER
85243-BZ020

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85241A - ARM, REAR WIPER
85241-BZ020

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
85242 - BLADE, RR WIPER
85242-BZ120

F651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH

 1
Common parts
9004A-11244
90119-06915
