F652RM-GMDFT (2011)
Toyota Avanza
Production
Nov 2011
-
Aug 2015
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1111-1508)4AT..TH ; (1111-1508)F651..SA ; (1111-1508)F651..LHD..MID,STD ; (1111-15

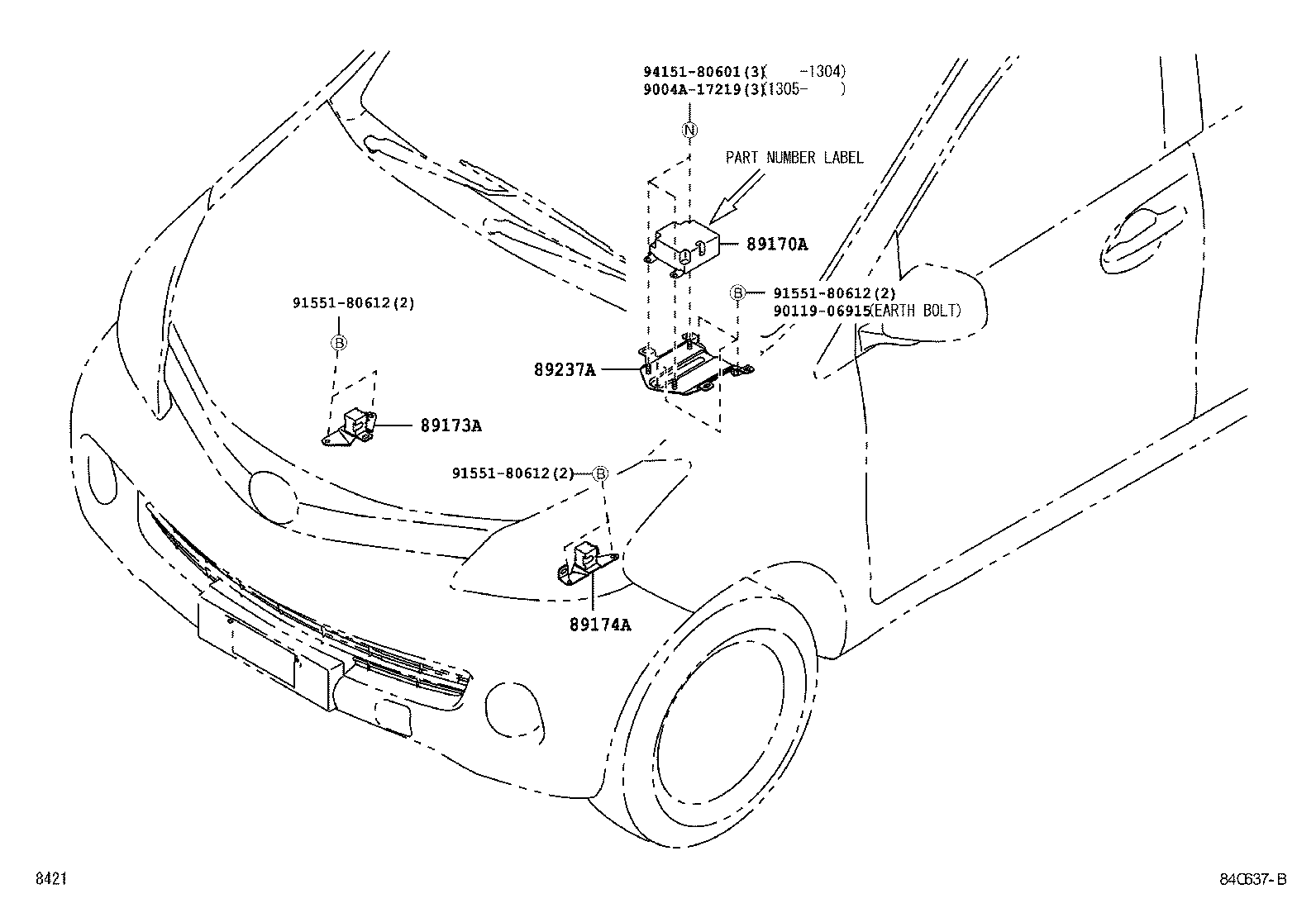

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170A - COMPUTER ASSY, AIR BAG | ||||
| 89170-BZ380 |
F651,652..GCC,MA,PHL,SA,TH W/PART NUMBER LABEL |
1 | ||
| 89170-BZ380 |
F651,652..GCC,MA,PHL,SA,TH W/PART NUMBER LABEL |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-BZ080 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89173-BZ080 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89174-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89237A - BRACKET, COMPUTER UNIT | ||||
| 89237-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89237-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| Common parts | ||||
| 9004A-17219 | ||||
| 90119-06915 | ||||
| 91551-80612 | ||||
| 94151-80601 | ||||
(1305-1508)5F..TH ; (1305-1508)LHD..LO ; (1305-1508)F651,652..IDN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170A - COMPUTER ASSY, AIR BAG | ||||
| 89170-BZ380 |
F651,652..GCC,MA,PHL,SA,TH W/PART NUMBER LABEL |
1 | ||
| 89170-BZ380 |
F651,652..GCC,MA,PHL,SA,TH W/PART NUMBER LABEL |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-BZ080 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89173-BZ080 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89174-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89237A - BRACKET, COMPUTER UNIT | ||||
| 89237-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| 89237-BZ040 |
F652..5F..TH;F651..LHD..LO |
1 | ||
| Common parts | ||||
| 9004A-17219 | ||||
| 90119-06915 | ||||
| 91551-80612 | ||||
| 94151-80601 | ||||
