F652RM-GMDFT (2011)
Toyota Avanza
ILLUST NO. 1 OF 3(1111-1312)
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23101-BZ070 |
K3VE,3SZVE..F65# |
1 | ||
| 23401B - BOLT | ||||
| 91653-40616 |
K3VE,3SZVE..F65# |
2 | ||
| 9004A-11252 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 23401B - BOLT | ||||
| 91653-40616 |
K3VE,3SZVE..F65# |
2 | ||
| 9004A-11252 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-BZ010 |
F65# |
1 | ||
| 77013-BZ100 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 23210-BZ300 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 23210-BZ150 |
F65# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-BZ210 |
F652..TH |
1 | ||
| 77001-BZ270 |
F652..TH |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90041-05177 |
F65# TYPE B |
1 | ||
| 90041-05481 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH TYPE A |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-BZ120 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77149A - REINFORCEMENT, FUEL TANK SIDE | ||||
| 77141-BZ130 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 23232-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-BZ100 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77203-BZ080 |
F65# |
1 | ||
| 77203-BZ081 |
F65# |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B0010 |
F652..MXC,TH |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
F65# |
2 | ||
| 77219-0K010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20030 |
F65# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-67244 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-67244 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-B0010 |
F652..MXC,TH |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-BZ012 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-30440 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-30440 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-BZ010 |
F65# |
1 | ||
| 77293-BZ011 |
F65# |
1 | ||
| 77293-BZ012 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-0K010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-BZ061 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77631-BZ060 |
F65# |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-B2010 |
F652..TH |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-B2010 |
F652..TH |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-B2010 |
F652..TH |
3 | ||
| 77652-B2010 |
F652..TH |
1 | ||
| 77652-B2010 |
F652..TH |
1 | ||
| Common parts | ||||
| 23390-BZ020 | ||||
| 90041-19608 | ||||
| 90044-64686 | ||||
| 90044-64770 | ||||
| 90044-67229 | ||||
| 90044-68290 | ||||
| 9004A-11247 | ||||
| 9004A-15055 | ||||
| 9004A-18035 | ||||
| 90466-09001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1111-1507)IDN ; (1111-1508)GCC,GEN,MA,PHL,SA,TH

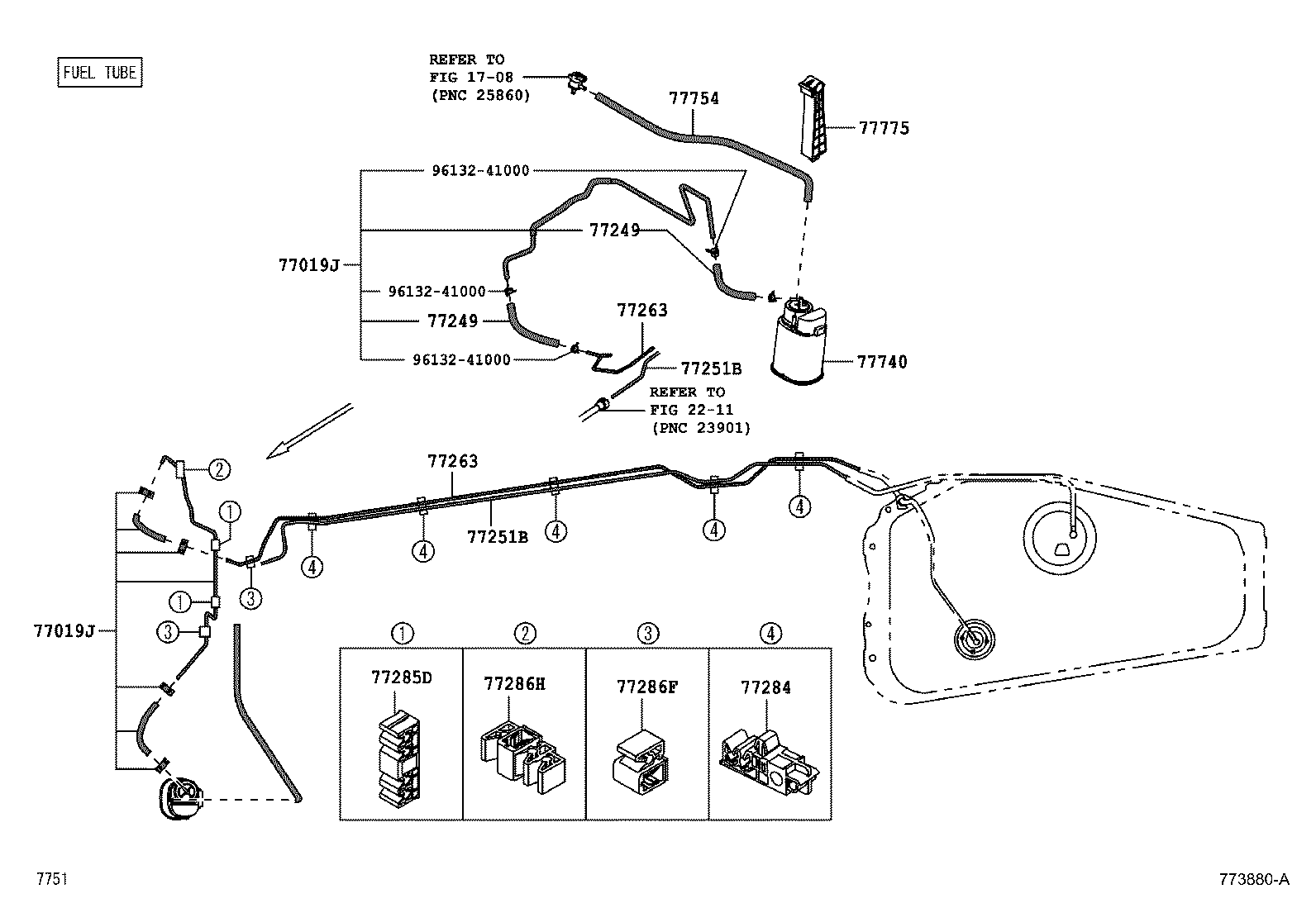

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21141 - CHAMBER, SUCTION | ||||
| 21141-BZ040 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 21893C - BRACKET | ||||
| 21893-BZ030 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95331-04015 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 9004A-46299 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 9004A-46313 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
5 | ||
| 90044-64716 |
F65# |
5 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-BZ020 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77740M - HOSE, CHARCOAL CANISTER | ||||
| 77759-BZ030 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77759-BZ040 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-BZ021 |
F651,652..GCC,GEN,MA,PHL,SA,TH L=133 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-BZ010 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90044-64397 | ||||
| 90044-64828 | ||||
| 90044-64829 | ||||
| 90466-10001 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1111- )
FUEL LID CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-BZ130 |
F651,652..MA,SA,TH |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90044-64371 |
F65# |
1 | ||
| 9004A-46242 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-BZ070 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-BZ020 |
F651,652..MA,SA,TH |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-B2050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77366-87203 |
F65# |
1 | ||
| Common parts | ||||
| 90042-69027 | ||||
| 9004A-11234 | ||||
ILLUST NO. 1 OF 3(1312- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23101-BZ070 |
K3VE,3SZVE..F65# |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-B4010 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 23401B - BOLT | ||||
| 91653-40616 |
K3VE,3SZVE..F65# |
2 | ||
| 9004A-11252 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 23401B - BOLT | ||||
| 91653-40616 |
K3VE,3SZVE..F65# |
2 | ||
| 9004A-11252 |
K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-BZ010 |
F65# |
1 | ||
| 77013-BZ100 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 23210-BZ300 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 23210-BZ150 |
F65# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-BZ210 |
F652..TH |
1 | ||
| 77001-BZ270 |
F652..TH |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90041-05177 |
F65# TYPE B |
1 | ||
| 90041-05481 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH TYPE A |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77141A - REINFORCEMENT, FUEL TANK FLANGE | ||||
| 77141-BZ120 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77149A - REINFORCEMENT, FUEL TANK SIDE | ||||
| 77141-BZ130 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 23232-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-BZ100 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77203-BZ080 |
F65# |
1 | ||
| 77203-BZ081 |
F65# |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B0010 |
F652..MXC,TH |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
F65# |
2 | ||
| 77219-0K010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20030 |
F65# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-67244 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90044-67244 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-B0010 |
F652..MXC,TH |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-BZ012 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-B0010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-B0010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-30440 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-30440 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-BZ010 |
F65# |
1 | ||
| 77293-BZ011 |
F65# |
1 | ||
| 77293-BZ012 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-0K010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-BZ061 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77631-BZ060 |
F65# |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20084 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-B2010 |
F652..TH |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-B2010 |
F652..TH |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-B2010 |
F652..TH |
3 | ||
| 77652-B2010 |
F652..TH |
1 | ||
| 77652-B2010 |
F652..TH |
1 | ||
| 87268T - PROTECTOR, NO.1 | ||||
| 87268-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90041-19608 | ||||
| 90044-64770 | ||||
| 90044-67229 | ||||
| 90044-68290 | ||||
| 9004A-11240 | ||||
| 9004A-11247 | ||||
| 9004A-15055 | ||||
| 9004A-17219 | ||||
| 9004A-18035 | ||||
| 9004A-46379 | ||||
| 9004A-46381 | ||||
| 9004A-46391 | ||||
| 90466-09001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1507- )IDN ; (1508- )MA,SA,TH
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ090 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95331-04015 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95331-04015 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ160 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 9004A-46313 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
5 | ||
| 90044-64716 |
F65# |
5 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-BZ020 |
F651,652..GCC,GEN,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
