F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)STD..PHL ; (1111-1508)MID..GCC ; (1111-1508)F651..LO,MID,STD..IDN,SA ; (

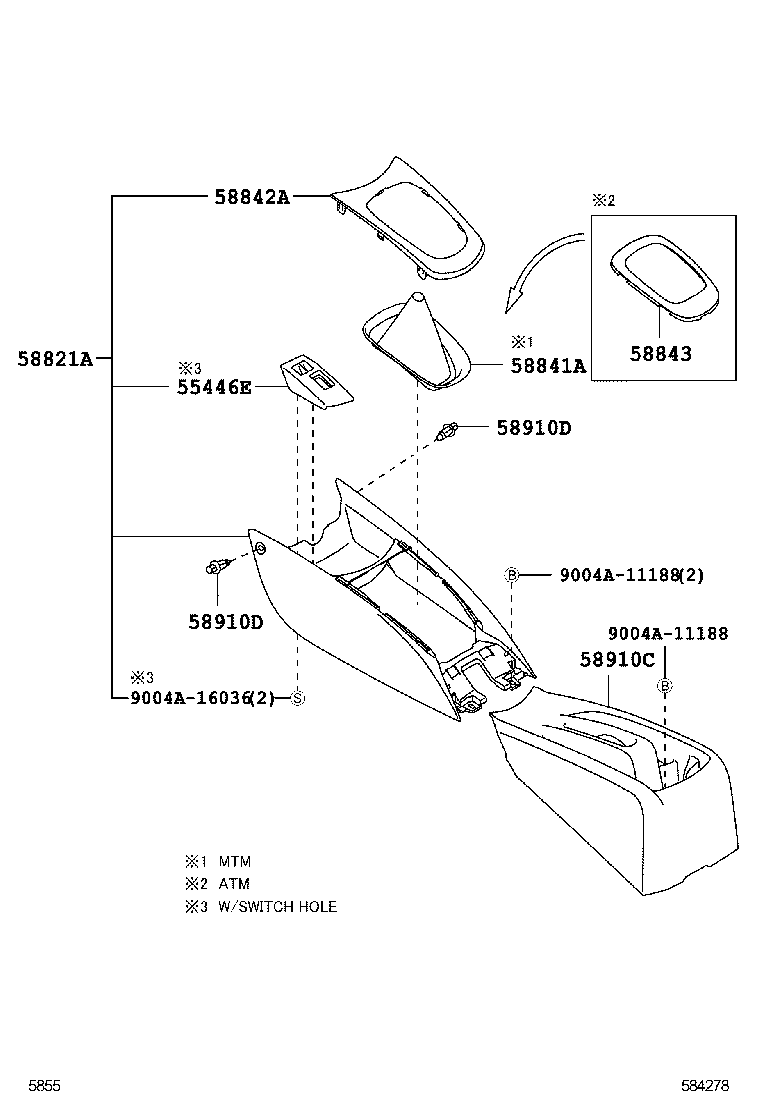

Click highlighted areas on diagram

W/ RR CONSOLE

diagram 55446E 58821A 58841A 58842A 58843 58910C 58910D 58910D 9004A11188 9004A11188 9004A16036
Part # Description Qty Price
58821A - PANEL, CONSOLE
58821-BZ080C1

F652..5F..STD..SA;F652..5F..(MXC,TH);F652..4AT..(MID,STD)..(MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

-,TRIM1#

 1
58841A - COVER, SHIFTING HOLE
58841-BZ130C0

F652..5F..(MXC,SA,TH);F651..5F..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
58842A - FRAME, SHIFTING HOLE
58842-BZ060C0

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

BLACK,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-BZ070B0

F651..STD..PHL;F651..(LO,STD)..SA;F652..MA,MXC,SA,TH

MD.GRAY,TRIM1#

 1
58910D - CLIP(FOR CONSOLE BOX)
90044-67579B2

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

MD.GRAY,TRIM1#

 2
58910D - CLIP(FOR CONSOLE BOX)
90044-67579B2

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

MD.GRAY,TRIM1#

 2
Common parts
9004A-11188
9004A-16036
