F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1401)F652..MA,MXC,SA,TH

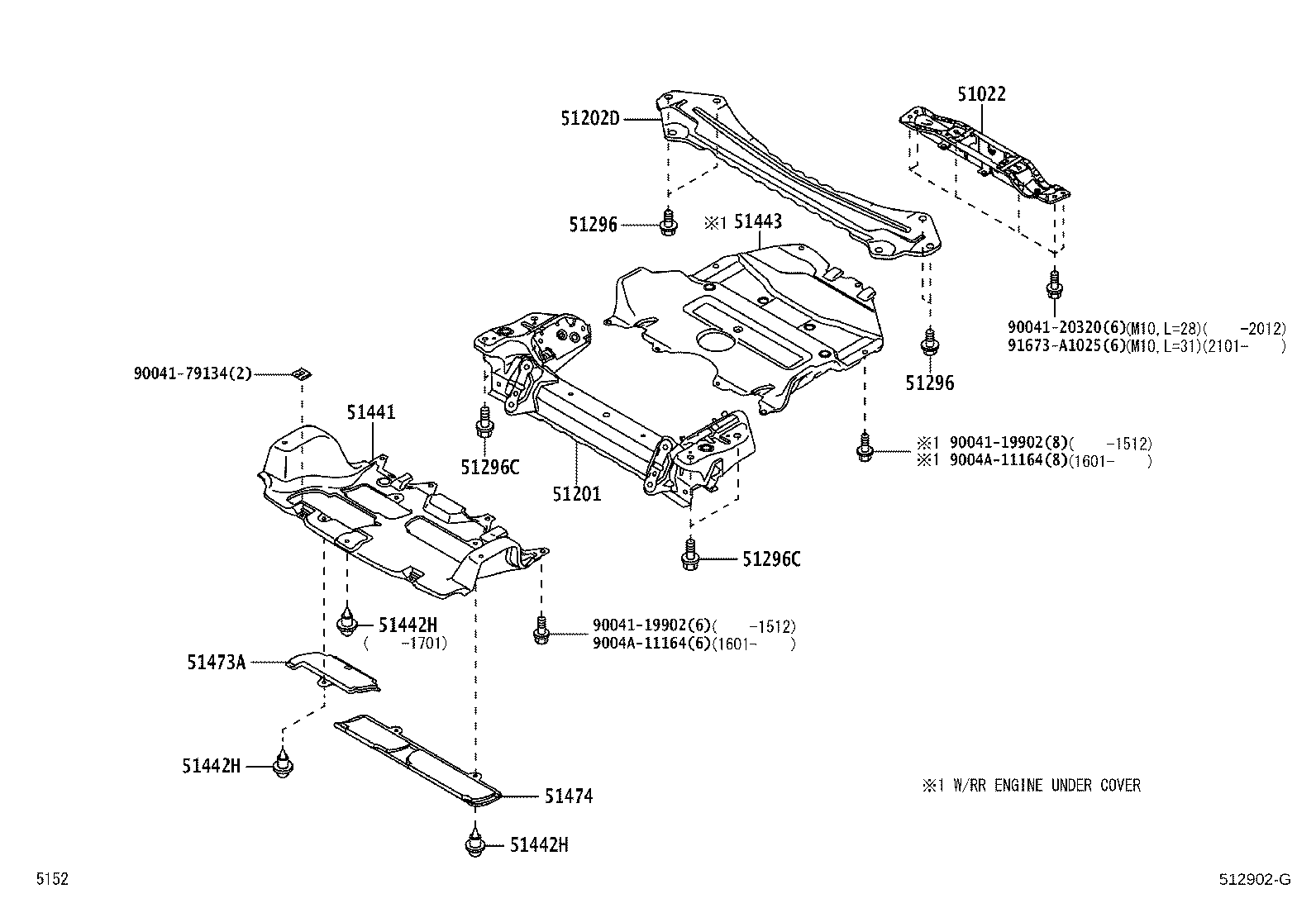

Click highlighted areas on diagram

diagram 51022 51201 51202D 51296 51296 51296C 51296C 51441 51442H 51442H 51443 51451A 51455A 9004119902 9004119902 9004119902 9004179134 9004179134 9004A10112 9004A10112 91652B1025
Part # Description Qty Price
51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-BZ110

F652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-BZ100

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-BZ090

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-BZ190

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51441-BZ150

F652..MA,MXC,SA,TH

 1
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51443 - COVER, ENGINE UNDER, REAR RH
51443-BZ060

F652..MA,MXC,SA,TH

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-BZ090

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
51451-BZ060

F652..MA,MXC,SA,TH

 1
Common parts
90041-19902
90041-79134
9004A-10112
91652-B1025

(1401-1507)IDN ; (1401-1508)GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

diagram 51022 51201 51202D 51296 51296 51296C 51296C 51441 51442H 51442H 51442H 51442H 51443 51451A 51451A 51455A 51473A 51474 51474 9004119902 9004119902 9004119902 9004179134 9004179134 9004A10112 9004A10112 91652B1025
Part # Description Qty Price
51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-BZ110

F652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-BZ100

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-BZ090

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-BZ190

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51441-BZ150

F652..MA,MXC,SA,TH

 1
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51443 - COVER, ENGINE UNDER, REAR RH
51443-BZ060

F652..MA,MXC,SA,TH

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-BZ090

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
51451-BZ060

F652..MA,MXC,SA,TH

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-BZ090

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
51451-BZ060

F652..MA,MXC,SA,TH

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-BZ010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-BZ010

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-BZ010

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
Common parts
90041-19902
90041-79134
9004A-10112
91652-B1025

(1507- )IDN ; (1508- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

diagram 51022 51201 51202D 51296 51296 51296C 51296C 51441 51442H 51442H 51442H 51443 51473A 51474 9004119902 9004119902 9004120320 9004179134 9004A11164 9004A11164 91673A1025
Part # Description Qty Price
51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-BZ110

F652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-BZ100

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-BZ090

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51325-B0010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91642-81235

F65#

 4
90041-20308

F65#

 4
9004A-11267

F651,652

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-BZ190

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51441-BZ150

F652..MA,MXC,SA,TH

 1
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90044-68320

F652..MA,MXC,SA,TH

 2
9004A-46323

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 5
9004A-46323

F652..MA,MXC,SA,TH

 2
51443 - COVER, ENGINE UNDER, REAR RH
51443-BZ060

F652..MA,MXC,SA,TH

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-BZ010

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-BZ010

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
Common parts
90041-19902
90041-20320
90041-79134
9004A-11164
91673-A1025
