Toyota Avanza F652 STEERING WHEEL

F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015

Engine 3SZVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1111-1207)F651..MA ; (1111-1305)LHD..LO ; (1111-1305)F651..IDN ; (1111-1305)F652..

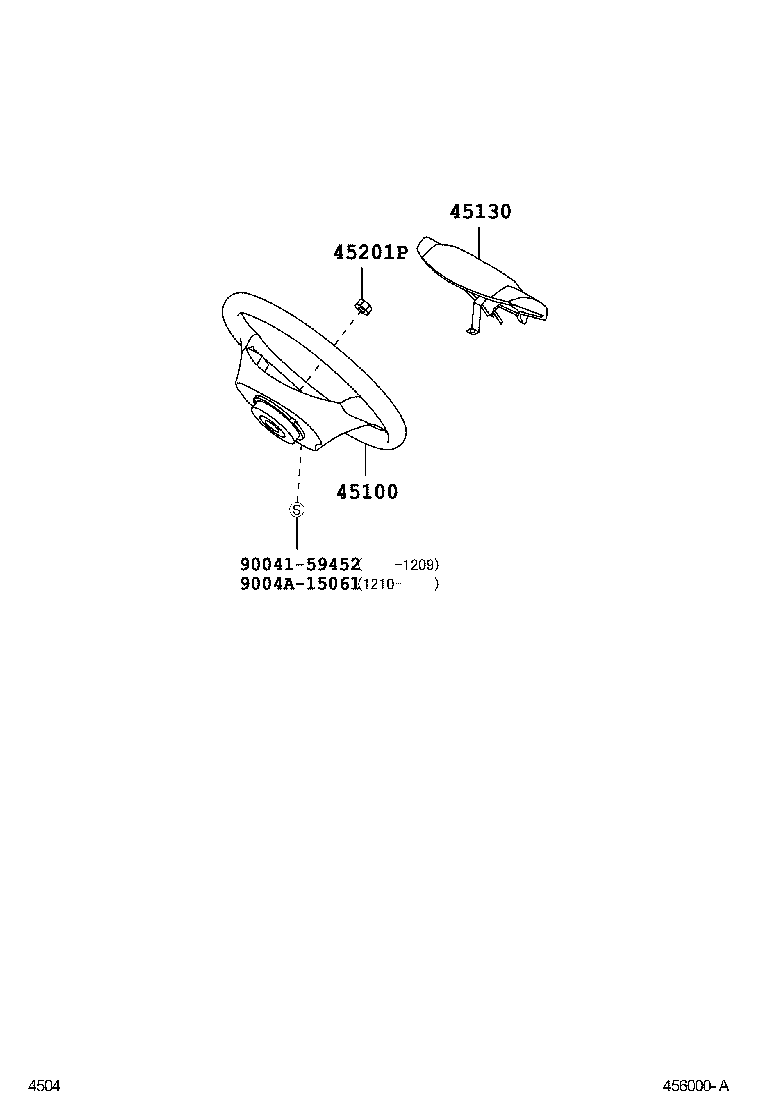

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45130 - BUTTON ASSY, HORN
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45201P - NUT, STEERING WHEEL SET
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
Common parts
90041-59452
9004A-15061

(1111- )F651..SA ; (1111- )SPO..PHL ; (1111- )F652..MID..MA ; (1111- )F

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45130 - BUTTON ASSY, HORN
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45201P - NUT, STEERING WHEEL SET
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
Common parts
84129-BZ010
Linked diagrams
8401

(1111- )F652..MID,SPO..GCC,GEN,MXC,PHL,SA,TH; (1207- )F651..MA ; (1305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45130 - BUTTON ASSY, HORN
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45201P - NUT, STEERING WHEEL SET
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
Common parts
84129-BZ010
Linked diagrams
8401

(1305- )F652..4AT..STD..TH ; (1305- )F652..5F..MID,STD..IDN,TH ; (1508- )F

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ270C0	F651..LHD..LO;F652..STD..TH 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	11/2011 - 05/2013	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45102-BZ281C0	F652..5F..TH;F651..LHD..LO 3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)	05/2013 - 08/2015	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45107-B2030	F652..5F..TH;F651..LHD..LO	05/2013 - 08/2015	1
45130 - BUTTON ASSY, HORN
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ350C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	11/2011 - 08/2012	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ351C0	F651..LHD..LO;F652..STD..TH BLACK,TRIM1#	09/2012 - 05/2013	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45130-BZ362C0	F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) BLACK,TRIM1#,BARCODE:*********X3N	05/2013 - 08/2015	1
45201P - NUT, STEERING WHEEL SET
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
9004A-17176	F651,652..GCC,GEN,MA,MXC,PHL,SA,TH	11/2011 - 08/2015	1
Common parts
84129-BZ010
Linked diagrams
8401
