F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

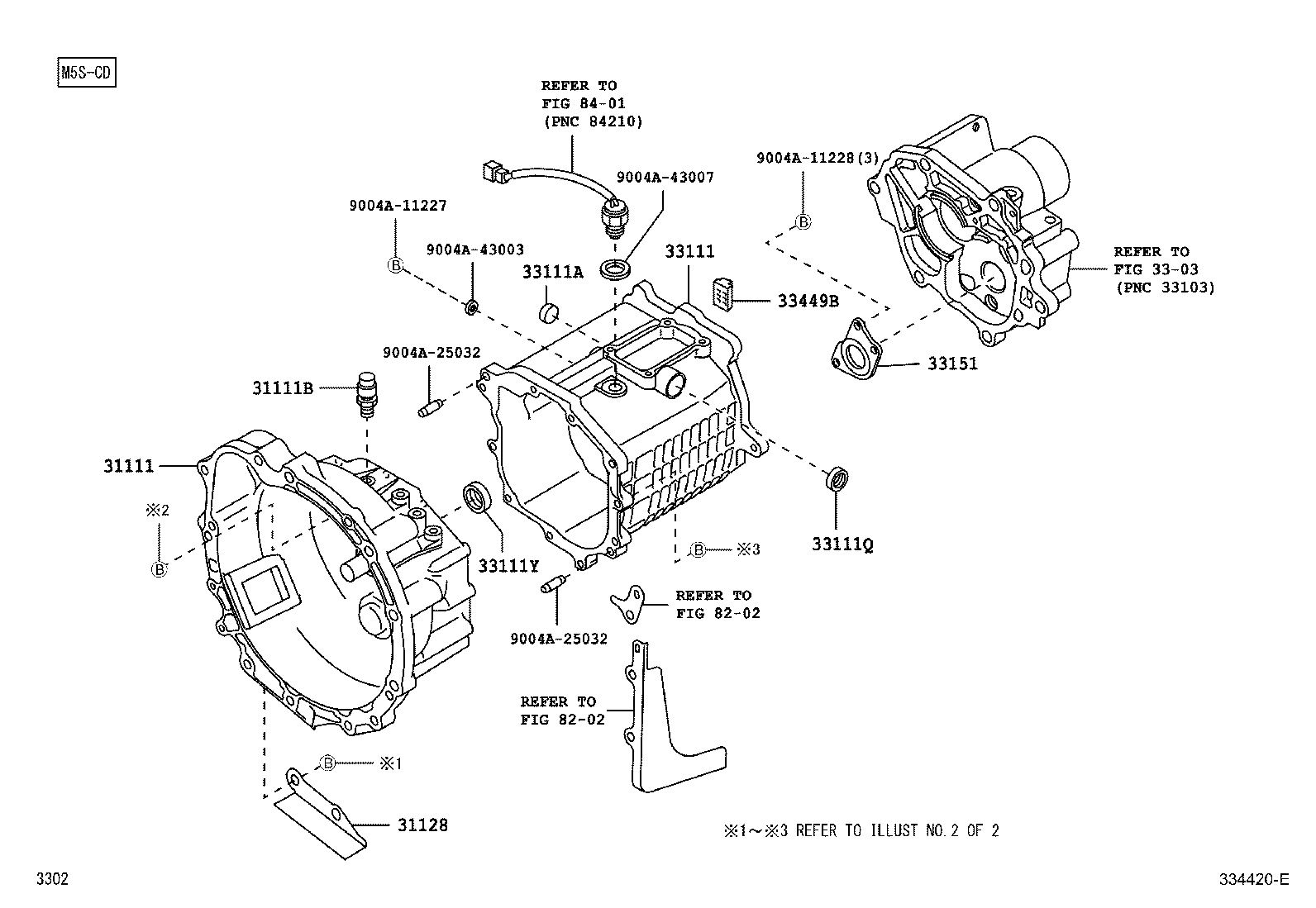

ILLUST NO. 1 OF 2(1111-1507)F652..5F..IDN ; (1111-1508)F652..5F..GCC,MXC,PHL,SA,TH

Click highlighted areas on diagram

M5S-CD

diagram 31111 31111B 31128 3303 33111 33111A 33111Q 33111Y 33151 33449B 8202 8202 8401 9004A11227 9004A11228 9004A25032 9004A25032 9004A43003 9004A43007
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-BZ020

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31111B - PLUG(FOR CLUTCH HOUSING)
9004A-93003

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
31128 - COVER, CLUTCH HOUSING UNDER
31128-BZ010

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33111 - CASE, MANUAL TRANSMISSION
33111-BZ020

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
9004A-33016

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31015

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31013

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-BZ010

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33449B - MAGNET, TRANSMISSION
33449-BZ010

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
Common parts
9004A-11227
9004A-11228
9004A-25032
9004A-43003
9004A-43007
Linked diagrams
3303
8202
8401

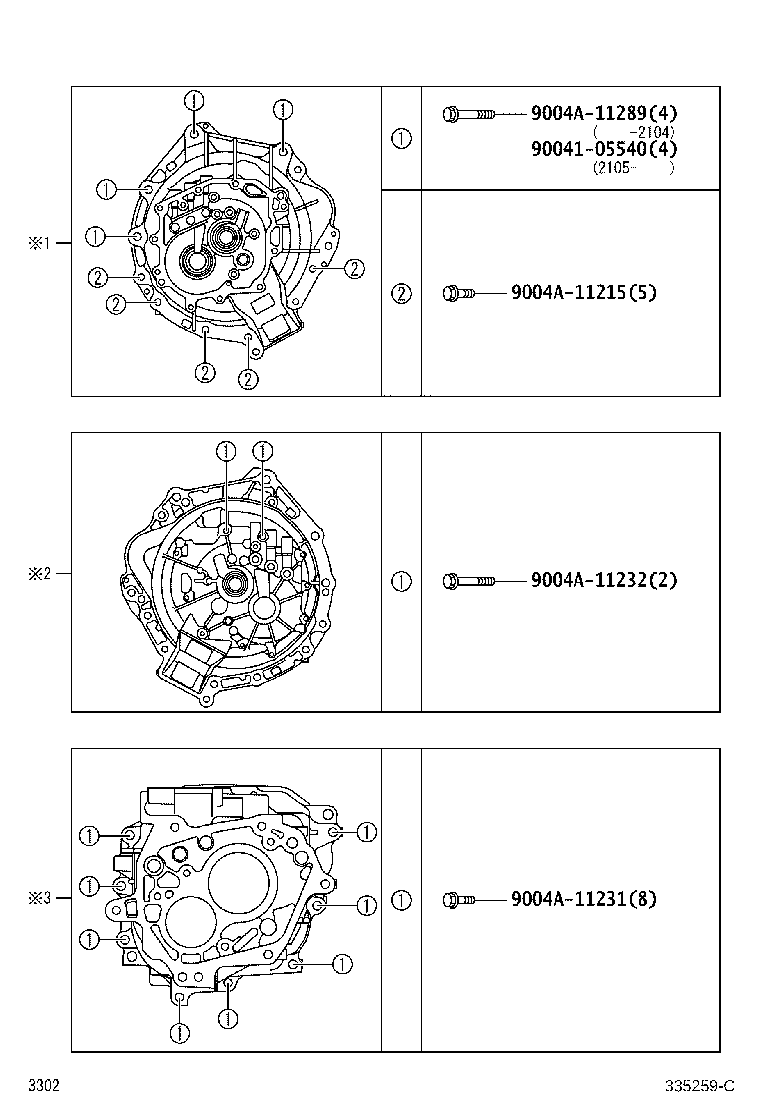

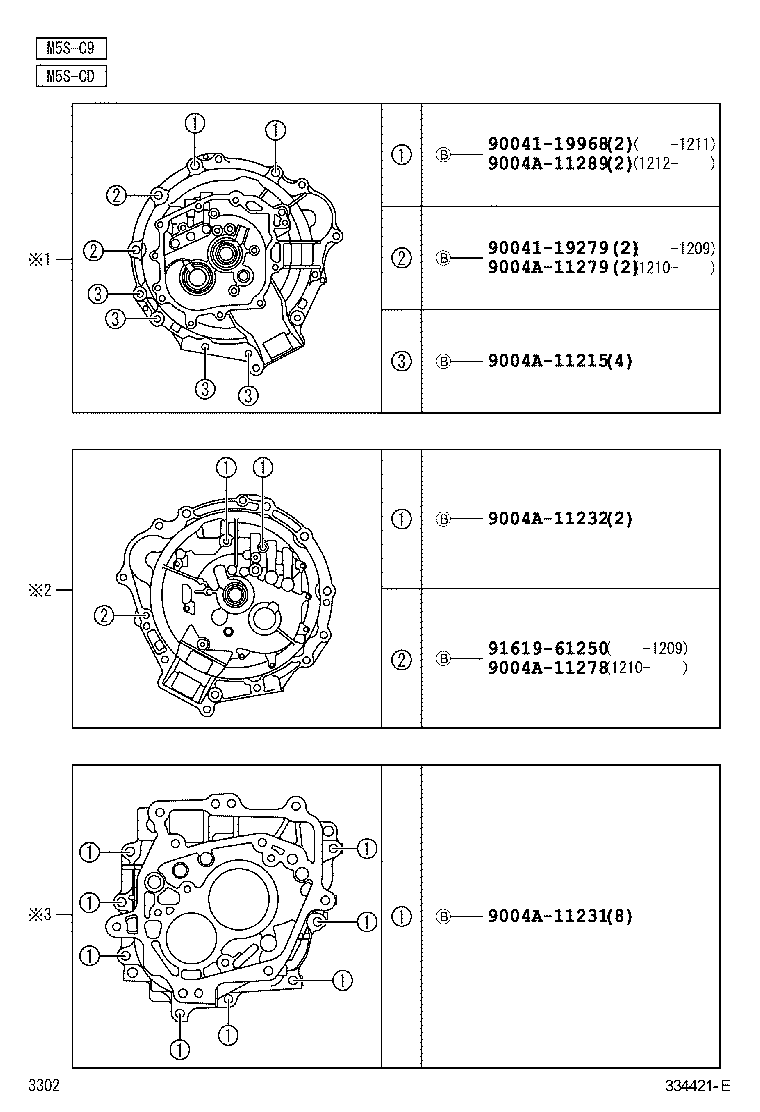

ILLUST NO. 2 OF 2(1111-1507)5F..IDN ; (1111-1508)5F..GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

M5S-C9, M5S-CD

diagram 9004119279 9004119968 9004A11215 9004A11231 9004A11232 9004A11278 9004A11279 9004A11289 9161961250
Part # Description Qty Price
Common parts
90041-19279
90041-19968
9004A-11215
9004A-11231
9004A-11232
9004A-11278
9004A-11279
9004A-11289
91619-61250

ILLUST NO. 2 OF 2(1507- )5F..IDN ; (1508- )5F..GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

diagram 9004105540 9004A11215 9004A11231 9004A11232 9004A11289
Part # Description Qty Price
Common parts
90041-05540
9004A-11215
9004A-11231
9004A-11232
9004A-11289
