F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1507)5F..IDN ; (1111-1508)5F..GCC,GEN,MA,MXC,PHL,SA,TH

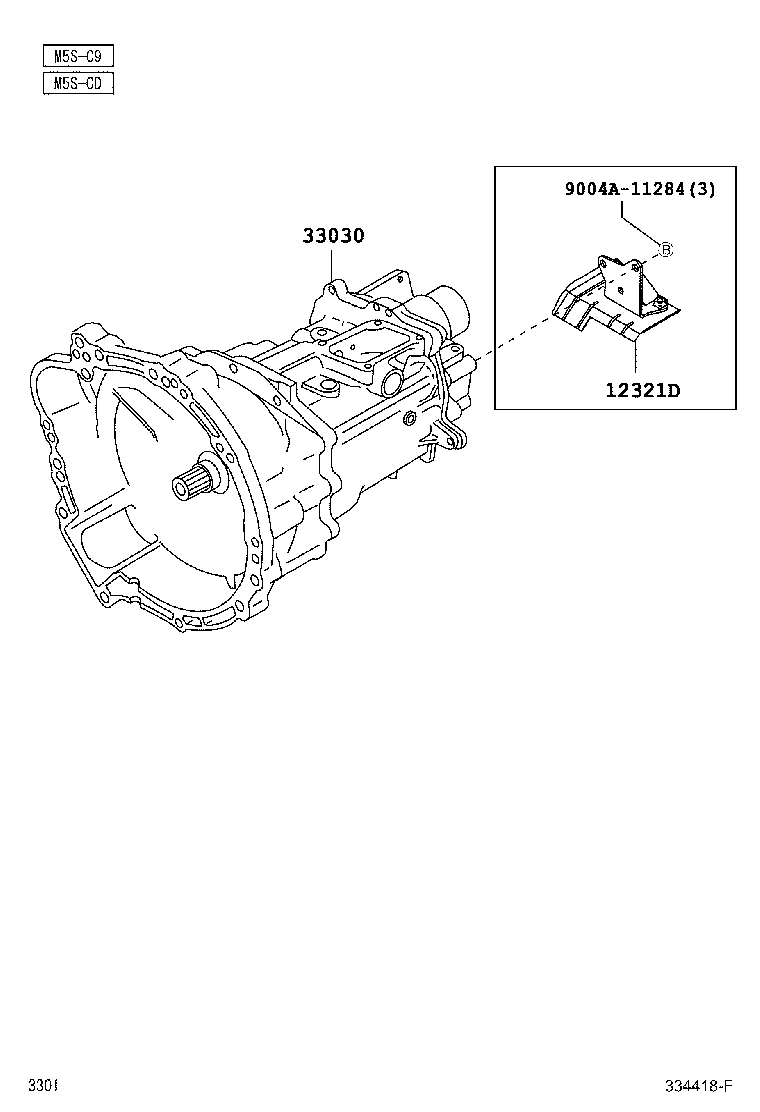

Click highlighted areas on diagram

M5S-C9, M5S-CD

diagram 12321D 33030 9004A11284
Part # Description Qty Price
12321D - BRACKET, ENGINE MOUNTING, REAR
12321-BZ120

K3VE,3SZVE..F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-BZ310

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
Common parts
9004A-11284
