F652RM-GMDFT (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

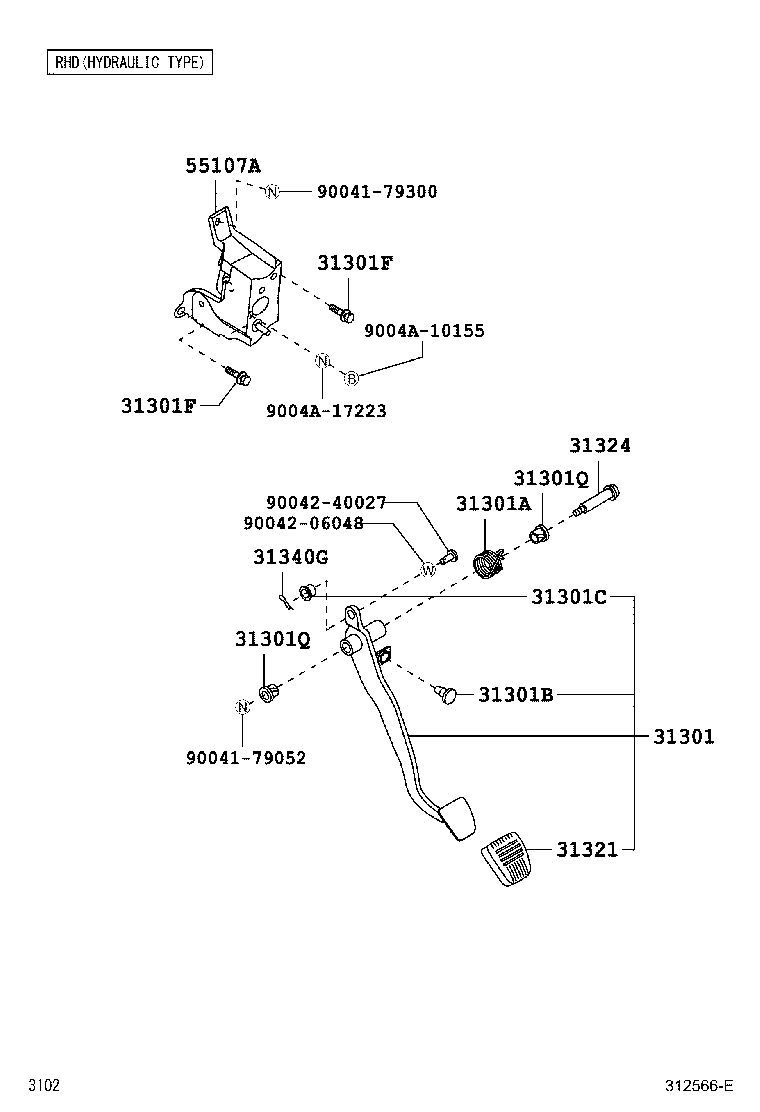

ILLUST NO. 1 OF 2(1111-1507)F652..5F..IDN ; (1111-1508)F652..5F..SA,TH

Click highlighted areas on diagram

RHD HYDRAULIC TYPE

diagram 31301 31301A 31301B 31301C 31301F 31301F 31301Q 31301Q 31321 31324 31340G 55107A 9004179052 9004179300 9004206048 9004240027 9004A10155 9004A17223
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-BZ150

F652..5F..(SA,TH)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-BZ020

F652..5F..(SA,TH)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
9004A-54003

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86123

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219

F651,652..5F..(MA,SA,TH)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219

F651,652..5F..(MA,SA,TH)

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
31321 - PAD, CLUTCH PEDAL
31321-BZ010

F651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
31324 - SHAFT, CLUTCH PEDAL
47124-BZ020

F651..LHD..5F;F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31340G - CLIP(FOR CLUTCH RELEASE CABLE)
90044-68076

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
90044-68337

F652..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-BZ110

F652..5F..(SA,TH)

 1
Common parts
90041-79052
90041-79300
90042-06048
90042-40027
9004A-10155
9004A-17223

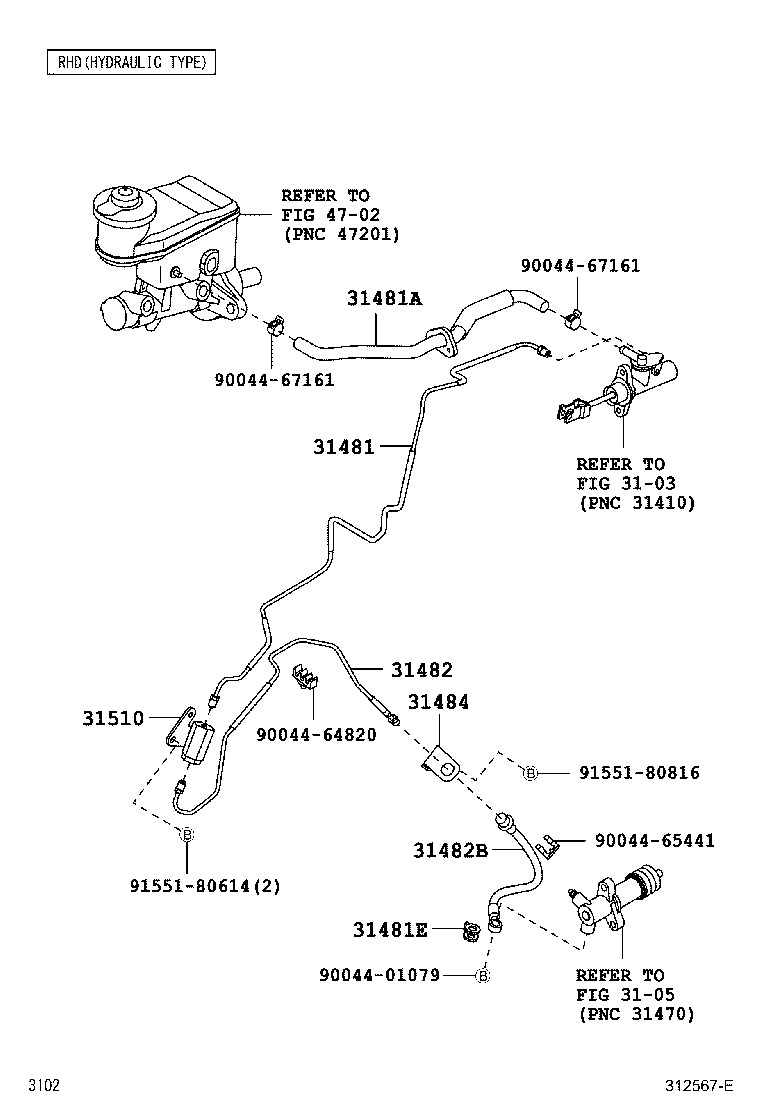

ILLUST NO. 2 OF 2(1111-1507)F652..5F..IDN ; (1111-1508)F652..5F..SA,TH

Click highlighted areas on diagram

RHD HYDRAULIC TYPE

diagram 3103 3105 31481 31481A 31481E 31482 31482B 31484 31510 4702 9004401079 9004464820 9004465441 9004467161 9004467161 9155180614 9155180816
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482-BZ120

F652..5F..(SA,TH)

 1
31481A - HOSE, CLUTCH, NO.1
31434-BZ010

F652..5F..(SA,TH)

 1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
47389-97201

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-BZ140

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31482B - HOSE, CLUTCH, NO.2
9004A-94079

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-BZ010

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
31510 - ORIFICE ASSY, CLUTCH
31510-B0020

F652..5F..(GCC,MXC,PHL,SA,TH)

 1
Common parts
90044-01079
90044-64820
90044-65441
90044-67161
91551-80614
91551-80816
Linked diagrams
3103
3105
4702
