F652RM-GMDFN (2011)

Toyota Avanza

Production Nov 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

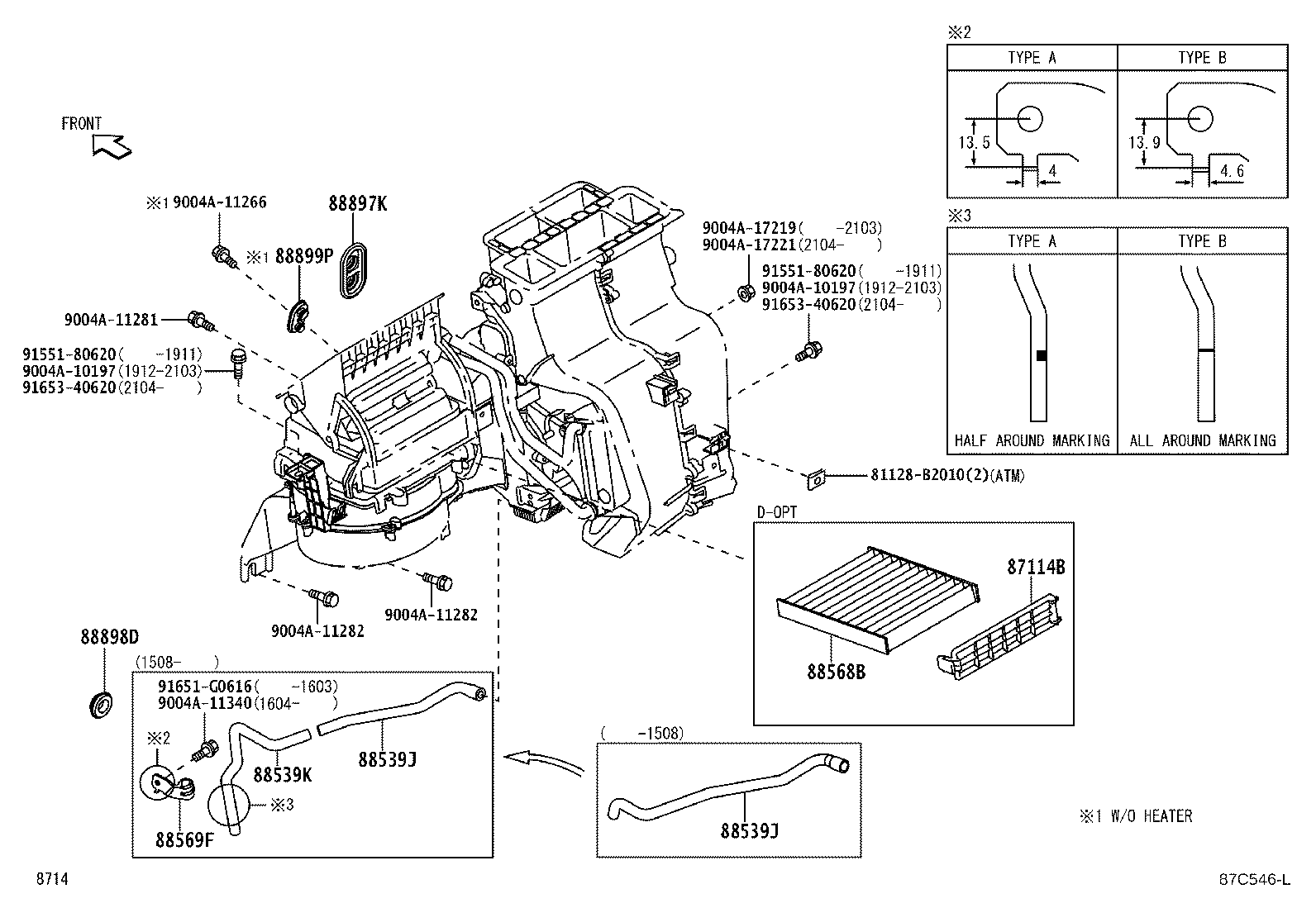

ILLUST NO. 1 OF 3(1111- )SA

Click highlighted areas on diagram

diagram 81128B2010 87114B 88539J 88539J 88539K 88568B 88569F 88897K 88898D 88899P 9004A10197 9004A10197 9004A11266 9004A11281 9004A11282 9004A11282 9004A11340 9004A17219 9004A17221 9155180620 9155180620 91651G0616 9165340620 9165340620
Part # Description Qty Price
87114B - COVER, HEATER
87114-BZ020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

W/CLEAN AIR FILTER

 1
88539J - HOSE, DRAIN COOLER
88539-BZ190

F651,652..MA,SA,TH

 1
88539J - HOSE, DRAIN COOLER
88539-BZ190

F651,652..MA,SA,TH

 1
88568B - FILTER, AIR
88568-BZ050

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

W/CLEAN AIR FILTER

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-BZ190

F651,652..GEN,MXC,SA

 1
88898D - GROMMET
88897-87Z13

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
Common parts
81128-B2010
9004A-10197
9004A-11266
9004A-11281
9004A-11282
9004A-11340
9004A-17219
9004A-17221
91551-80620
91651-G0616
91653-40620

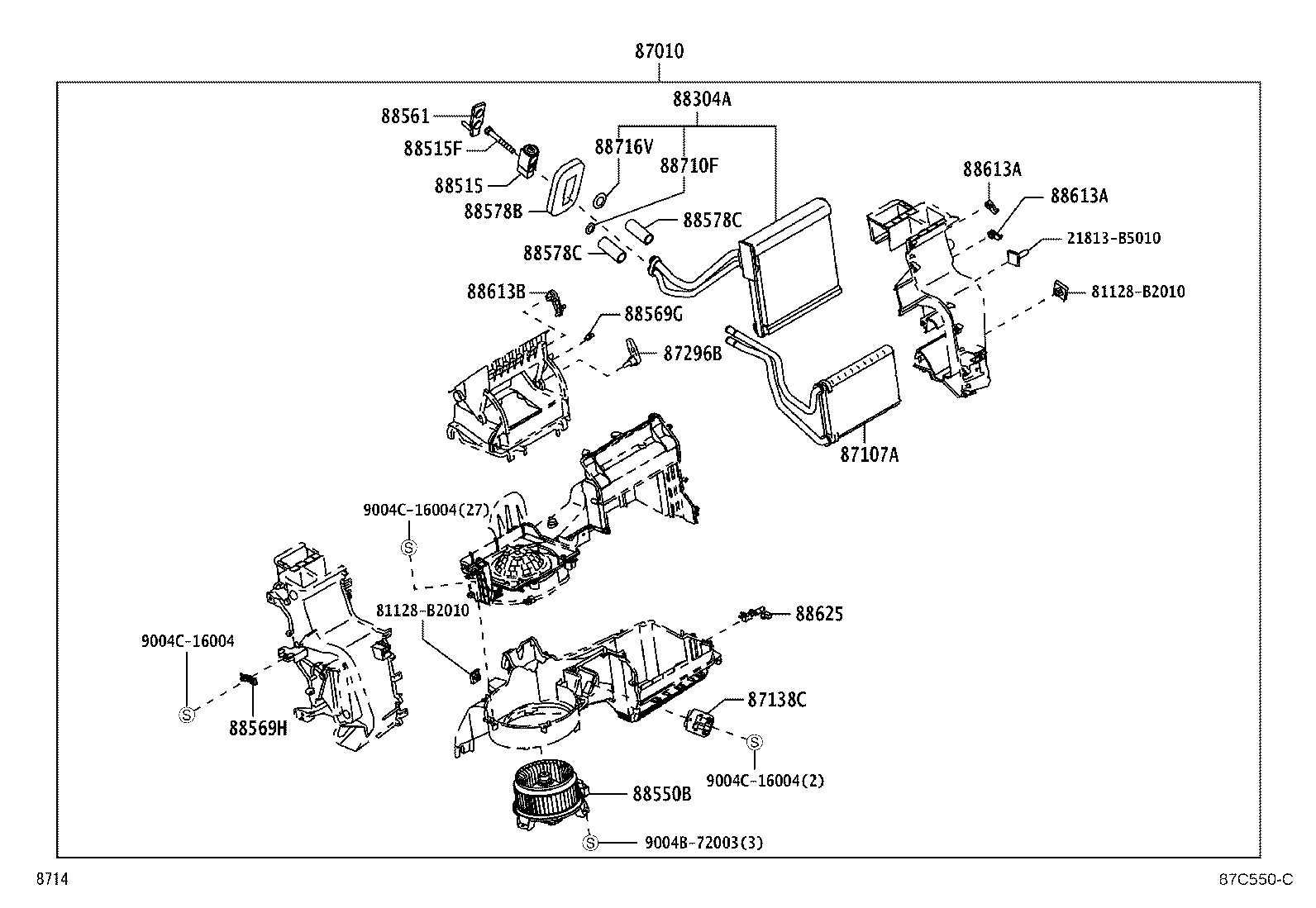

ILLUST NO. 2 OF 3(1111-1904)SA

Click highlighted areas on diagram

diagram 21813B5010 81128B2010 81128B2010 87010 87107A 87138C 87296B 88304A 88515 88515F 88550B 88561 88569G 88569H 88578B 88578C 88578C 88613A 88613A 88613B 88625 88710F 88716V 9004B72003 9004C16004 9004C16004 9004C16004
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-BZ270

F651,652..SA

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-BZ070

F651,652..SA

 1
87138C - RESISTOR, BLOWER
87138-BZ070

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
87296B - LEVER, HEATER AIR DAMPER CONTROL
87296-BZ080

F651,652..MA,SA,TH

 1
88304A - COOLER, EVAPORATOR
88304-BZ080

F651,652..SA

 1
88515 - VALVE, COOLER EXPANSION
88515-BZ050

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

F651,652..MA,SA,TH

 2
88550B - MOTOR ASSY, BLOWER
88550-B4010

F651,652..SA

 1
88561 - COVER, COOLER UNIT
9004C-33001

F651,652..GEN,MA,MXC,PHL,SA,TH

 1
88569H - CLAMP
88898-B4030

F651,652..GEN,MXC,SA

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ570

F651,652..MA,SA,TH

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-BZ580

F651,652..MA,SA,TH

 2
88578C - PACKING, COOLING UNIT, NO.2
88578-BZ580

F651,652..MA,SA,TH

 2
88613A - LEVER, COOLER CONTROL, NO.1
88613-BZ060

F651,652..GEN,MXC,SA

 2
88613A - LEVER, COOLER CONTROL, NO.1
88613-BZ060

F651,652..GEN,MXC,SA

 2
88613B - LEVER, COOLER CONTROL, NO.2
88613-BZ070

F651,652..SA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-BZ060

F651,652..MA,SA,TH

 1
88710F - RING, O
15188-87402

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
88716V - RING, O(FOR COOLER UNIT)
15188-87403

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
Common parts
21813-B5010
81128-B2010
9004B-72003
9004C-16004
