F652LM-GQMFV (2014)

Toyota Avanza

Production Apr 2014 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1404-1508)GCC

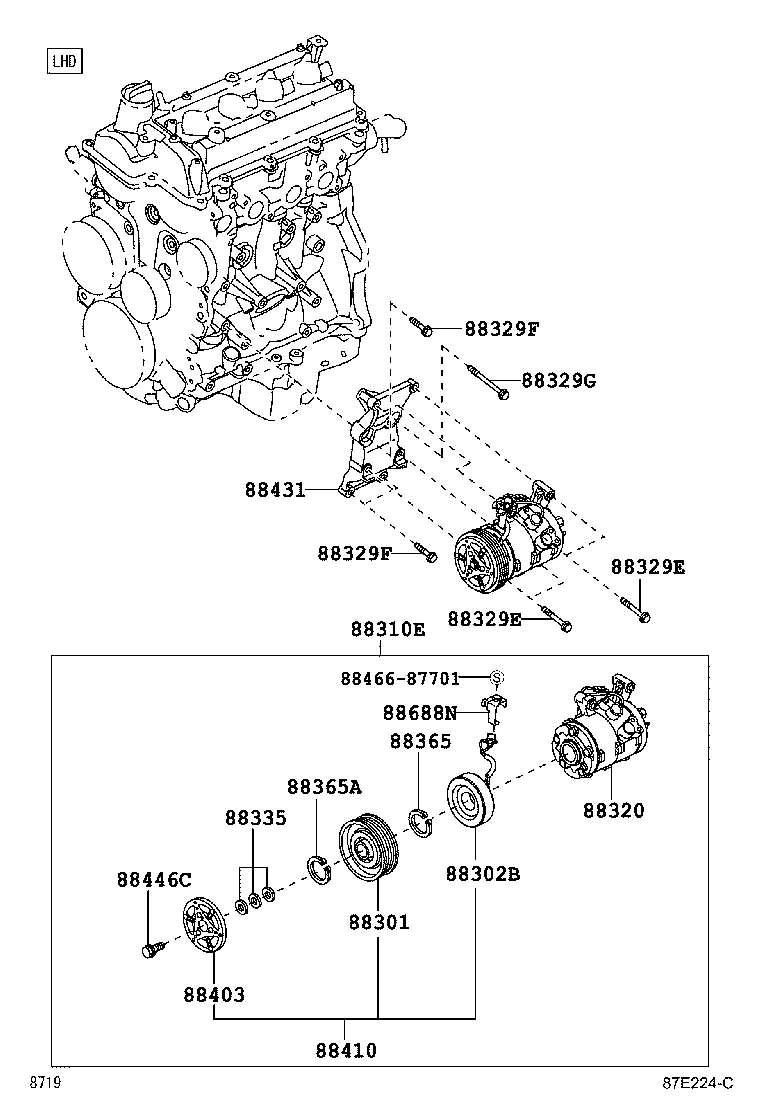

Click highlighted areas on diagram

diagram 88301 88302B 88310E 88320 88329E 88329E 88329F 88329F 88329G 88335 88365 88365A 88403 88410 88431 88446C 8846687701 88688N
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-BZ110

F652..GCC,GEN,MA,MXC,PHL,SA

 1
88302B - STATOR, MAGNET CLUTCH
88411-BZ180

F652..GCC

 1
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-BZ530

F652..GCC

 1
88320 - COMPRESSOR ASSY, COOLER
88320-BZ270

F652..GCC

 1
88329F - BOLT, COMPRESSOR, NO.2
9004A-10146

F651,652..LHD

 3
88329F - BOLT, COMPRESSOR, NO.2
9004A-10146

F651,652..LHD

 3
88329G - BOLT, COMPRESSOR, NO.3
91551-80880

F651..STD..(MA,SA);F652..GCC,GEN,MA,PHL,SA

 3
88335 - GASKET KIT, OVERHAUL
88335-14020

F652..GCC

 1
88365 - RING, SNAP
90099-07125

F651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)

 1
88365A - RING, SNAP (FOR COMPRESSOR)
90099-07114

F651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-BZ080

F651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)

 1
88410 - CLUTCH ASSY, MAGNET
88410-BZ280

F652..GCC

 1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349

F651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)

 1
88688N - BRACKET, COOLER
88688-BZ190

F652..GCC

 1
Common parts
88466-87701
