F652LM-GMMFX (2011)

Toyota Avanza

Production Dec 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)LHD

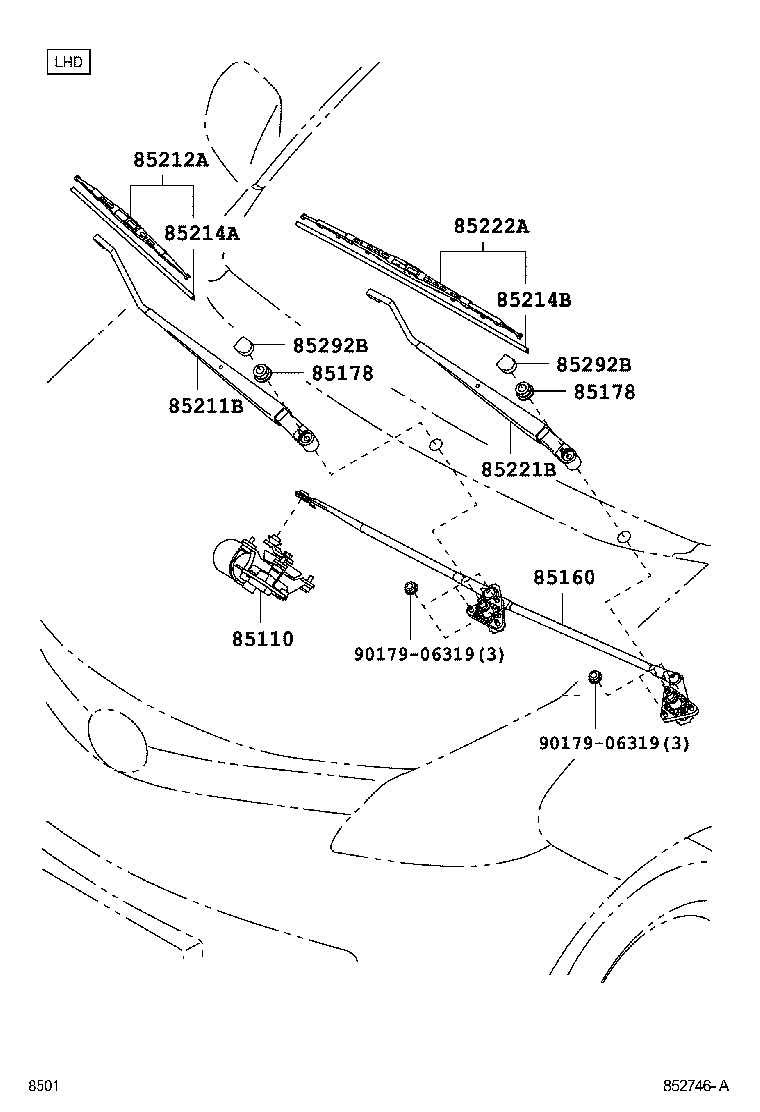

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9017906319 9017906319
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-BZ170

F65#..LHD

 1
85110-BZ171

F651,652..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-BZ170

F651,652..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
81128-87205

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
81128-87205

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
85211B - ARM, FRONT WIPER, RH
85221-BZ170

F651,652..LHD

 1
85212A - BLADE, FR WIPER, RH
85222-BZ210

F651,652..LHD

 1
85214A - RUBBER, WIPER, RH
85214-BZ220

F651,652..LHD

 1
85214B - RUBBER, WIPER, LH
85214-BZ090

F651,652..LHD

 1
85221B - ARM, FRONT WIPER, LH
85211-BZ170

F651,652..LHD

 1
85222A - BLADE, FR WIPER, LH
85212-BZ160

F651,652..LHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
Common parts
90179-06319
