F652LM-GMMFX (2011)

Toyota Avanza

Production Dec 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348 74611B 9004159401 9004168071 9004A15059 9004A16087
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-BZ520B0

F652..MXC;F651..STD..PHL

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-BZ440B0

F652..MXC

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-BZ060B1

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

LT.GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-BZ060B1

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 5
Common parts
90041-59401
90041-68071
9004A-15059
9004A-16087

(1112- )LHD

Click highlighted areas on diagram

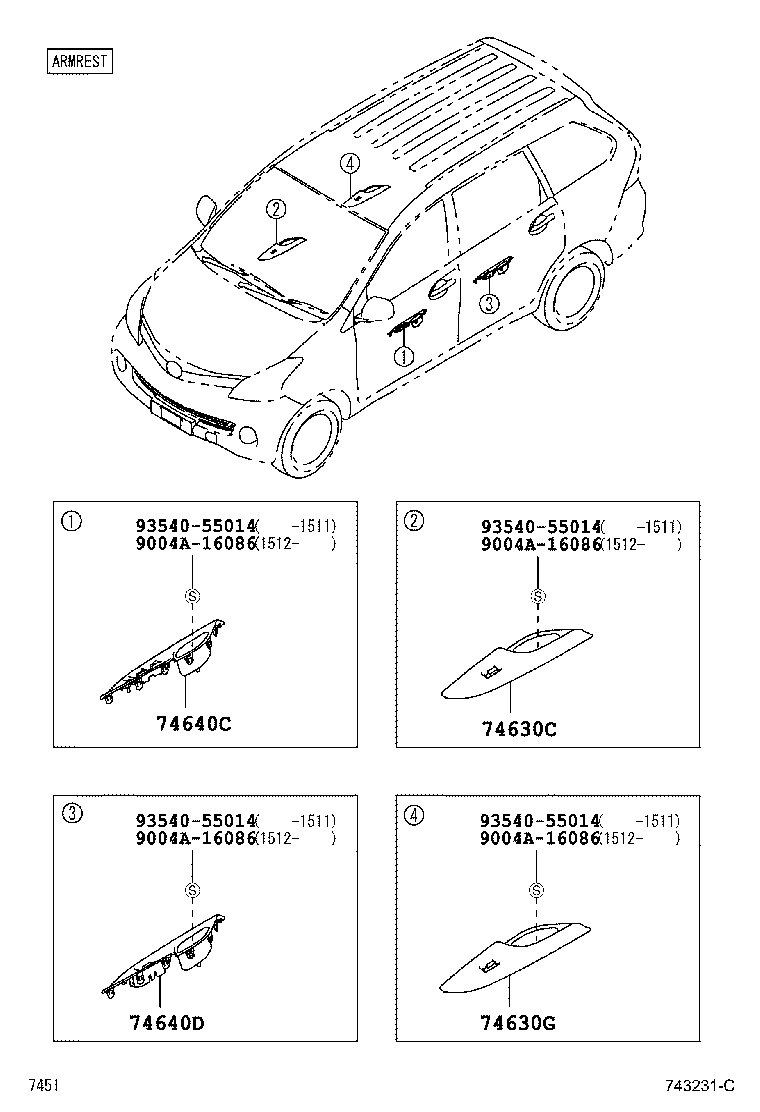

ARMREST(LHD)

diagram 74630C 74630G 74640C 74640D 9004A16086 9004A16086 9004A16086 9004A16086 9354055014 9354055014 9354055014 9354055014
Part # Description Qty Price
74630C - GRIP ASSY, DOOR ASSIST, RH
74641-BZ120B0

F652..MXC

SILVER,TRIM1#

 1
74630G - GRIP ASSY, REAR DOOR ASSIST RH
74641-BZ120B0

F652..SPO..TH;F652..(MID,SPO)..(MA,MXC,SA)

SILVER,TRIM1#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74642-BZ120B0

F652..MXC

SILVER,TRIM1#

 1
74640D - GRIP ASSY, REAR DOOR ASSIST LH
74642-BZ100B0

F652..SPO..TH;F652..(MID,SPO)..(MA,MXC,SA)

SILVER,TRIM1#

 1
Common parts
9004A-16086
93540-55014
