F652LM-GMMFX (2011)

Toyota Avanza

Production Dec 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)MXC ; (1111-1508)F651..GEN,SA ; (1111-1508)F652..STD..SA ; (1508- )VB

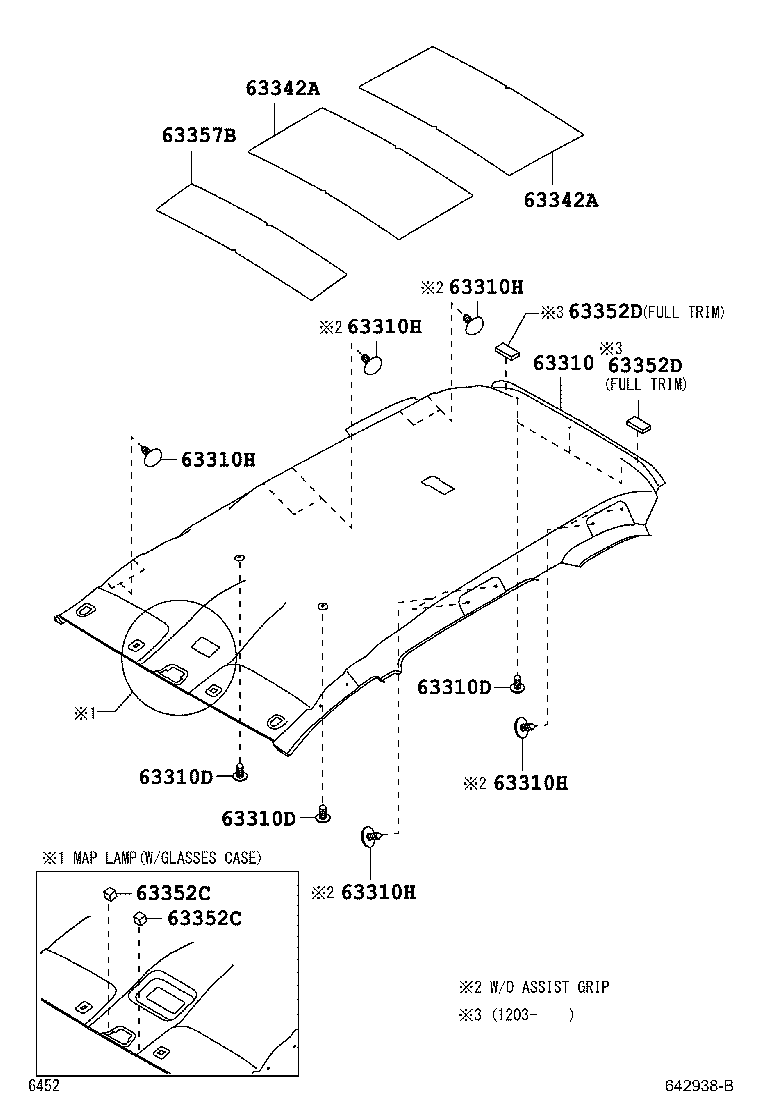

Click highlighted areas on diagram

L/AC

diagram 63310 63310D 63310D 63310D 63310H 63310H 63310H 63310H 63310H 63342A 63342A 63352C 63352C 63352D 63352D 63357B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-BZ320B0

F652..MXC;F651,652..(LO,STD,VB)..SA

LT.GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

LT.GRAY,TRIM1#

 5
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

LT.GRAY,TRIM1#

 5
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)

LT.GRAY,TRIM1#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F652..MID..SA;F651,652..MA,MXC,TH

LT.GRAY,TRIM1#

 2
63342A - SILENCER, ROOF, NO.2
63342-BZ070

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
63342A - SILENCER, ROOF, NO.2
63342-BZ070

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
63352C - PAD, ROOF HEADLINING, END
63352-BZ010

F651..SA;F652..MID..GCC;F652..GEN,MXC,PHL,SA

 2
63352C - PAD, ROOF HEADLINING, END
63352-BZ010

F651..SA;F652..MID..GCC;F652..GEN,MXC,PHL,SA

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
63357B - SILENCER, ROOF
63357-BZ040

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
