F652LM-GMMFX (2011)
Toyota Avanza
(1111-1508)F652 ; (1111-1508)STD..PHL ; (1111-1508)F651..MID..GEN ; (1111-1508)F651

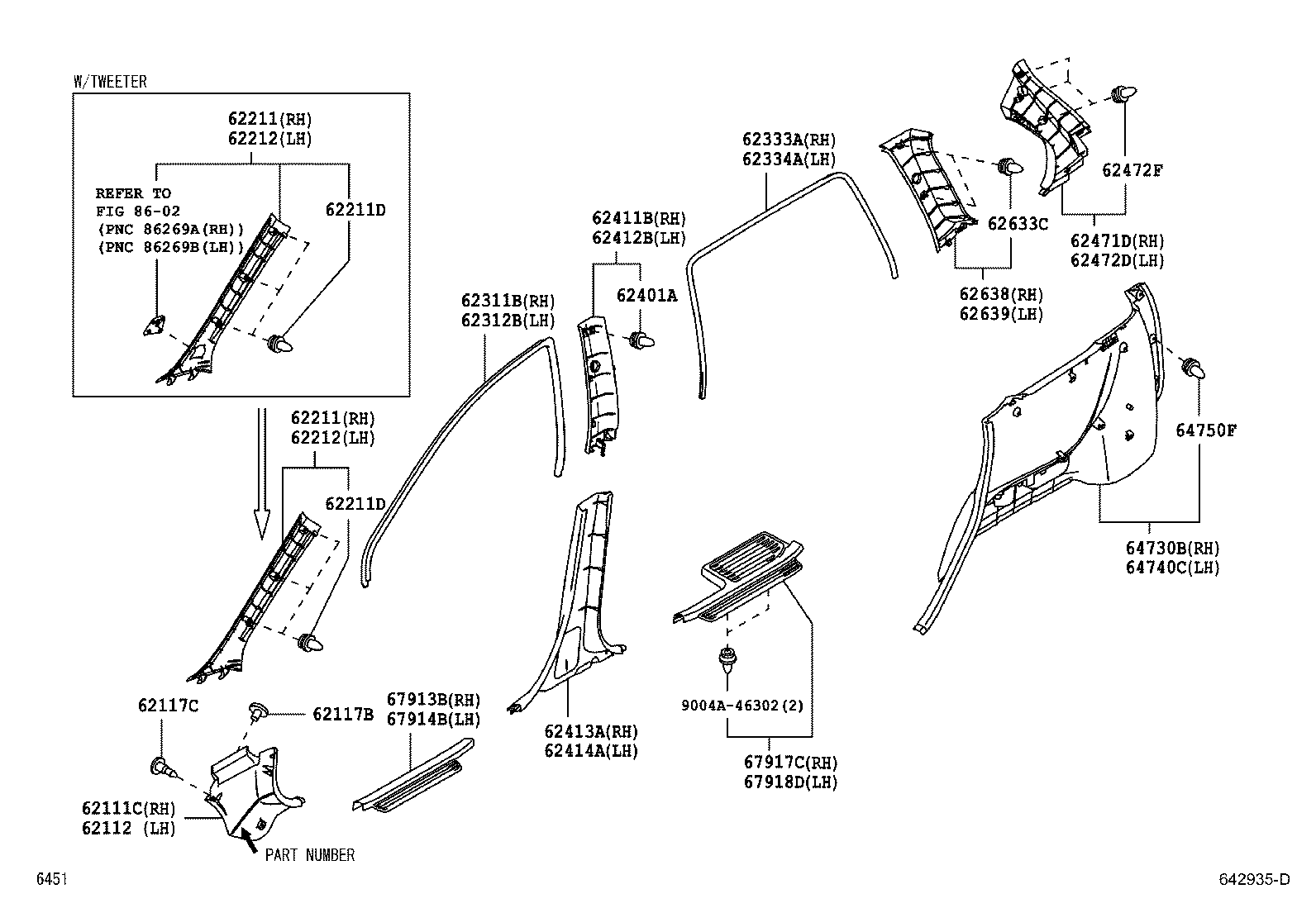

FULL TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 9004A-46132B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ060B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ160B0 |
F652..(MID,SPO)..(MXC,SA,TH);F651,652..(LO,STD,VB)..(GEN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62311-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62311-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62312-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62312-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62333-BZ060 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 9004A-46275 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62412-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62412-BZ160B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ130B0 |
F652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ131B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62471-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62471-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62472-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62472-BZ250B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
6 | ||
| 62633C - CLIP (FOR QUARTER TRIM GARNISH) | ||||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 62638 - GARNISH, REAR QUARTER TRIM, FRONT RH | ||||
| 62638-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62638-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62638-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62639 - GARNISH, REAR QUARTER TRIM, FRONT LH | ||||
| 62639-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62639-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62639-BZ020B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64730-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64730-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64740-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64740-BZ120B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
16 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
16 | ||
| 9004A-46275 |
F651..STD..PHL;F651..MID..GEN;F651..(LO,STD)..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH |
16 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67913-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67913-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67914-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67914-BZ110B0 |
F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ110B0 |
F651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MXC,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 9004A-46302 | ||||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
