F652LM-GMMFX (2011)

Toyota Avanza

Production Dec 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )LO,MID,STD,VB

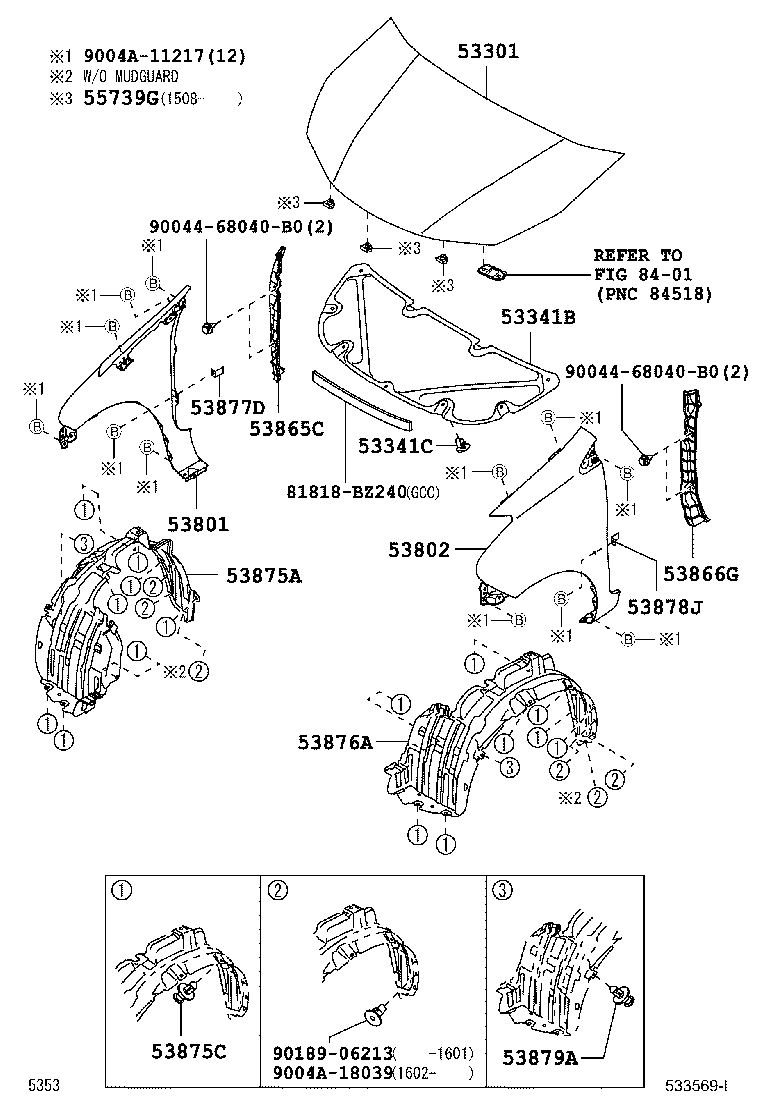

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53801 53802 53865C 53866G 53875A 53875C 53876A 53877D 53878J 53879A 55739G 81818BZ240 8401 9004468040B0 9004468040B0 9004A11217 9004A18039 9018906213
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-BZ220

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53341B - INSULATOR, HOOD
53341-BZ040

F651..MA;F652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

F651..MA;F652..GCC,GEN,MA,MXC,PHL,SA,TH

 7
53801 - FENDER SUB-ASSY, FRONT RH
53811-BZ230

F652..(MID,STD)..(MXC,TH)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-BZ230

F652..(MID,STD)..(MXC,TH)

 1
53865C - PLATE, FRONT FENDER EXTENSION, RH
53865-BZ020

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53866G - PLATE, FRONT FENDER EXTENSION, LH
53866-BZ050

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53875A - LINER, FRONT FENDER, RH
53875-BZ190

F651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
53875C - CLIP, FRONT FENDER LINER
9004A-46323

F651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)

 16
90044-68320

F65#..LO,MID,STD,VB

 16
53876A - LINER, FRONT FENDER, LH
53876-BZ190

F651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)

 1
53877D - BRACKET, FRONT FENDER LINER, RH
58139-BZ060

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53878J - BRACKET, FRONT FENDER LINER, LH
58139-BZ060

F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
53879A - RETAINER, FRONT FENDER LINER
90044-68320

F65#..LO,MID,STD,VB

 2
9004A-46323

F65#..LO,MID,STD,VB

 2
9004A-46352

F651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)

 2
Common parts
81818-BZ240
90044-68040B0
9004A-11217
9004A-18039
90189-06213
Linked diagrams
8401
