F652LM-GMMFX (2011)
Toyota Avanza

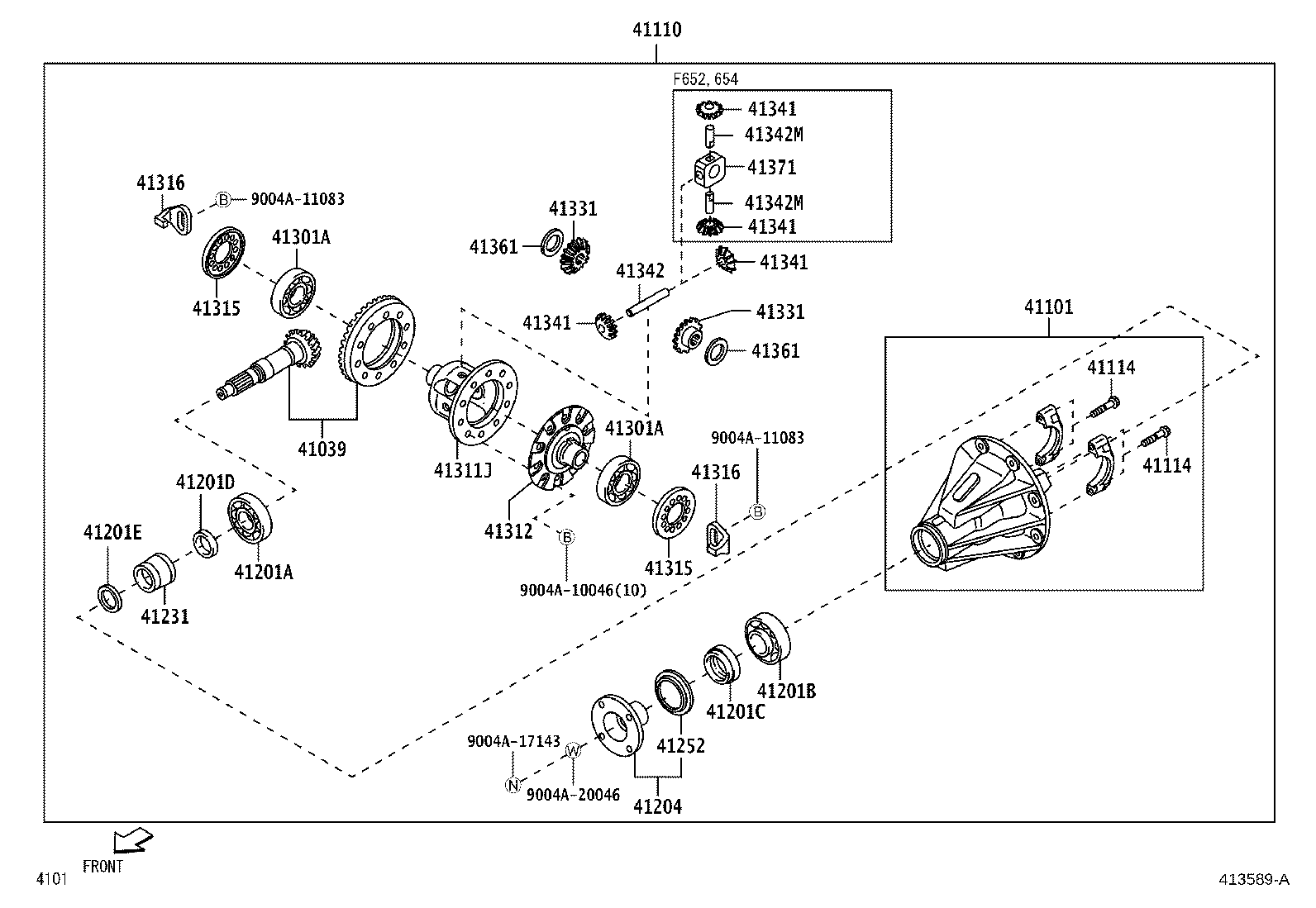

ILLUST NO. 1 OF 2(1111- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-BZ050 |
F651,652..5F..(GEN,MXC);F652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-BZ240 |
F652..5F..MXC |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 9004A-36085 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 9004A-36089 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 9004A-31043 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 9004A-56053 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.35 |
1 | ||
| 9004A-56051 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.29 |
1 | ||
| 9004A-56054 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.38 |
1 | ||
| 9004A-56056 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.44 |
1 | ||
| 9004A-56055 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.41 |
1 | ||
| 9004A-56052 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.32 |
1 | ||
| 9004A-56059 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.53 |
1 | ||
| 9004A-56061 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.59 |
1 | ||
| 9004A-56060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.56 |
1 | ||
| 9004A-56063 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.65 |
1 | ||
| 9004A-56062 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.62 |
1 | ||
| 9004A-56057 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.47 |
1 | ||
| 9004A-56058 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=0.50 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 9004A-56067 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.80 |
1 | ||
| 9004A-56069 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.90 |
1 | ||
| 9004A-56075 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.20 |
1 | ||
| 9004A-56065 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.70 |
1 | ||
| 9004A-56070 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.95 |
1 | ||
| 9004A-56066 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.75 |
1 | ||
| 9004A-56077 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.30 |
1 | ||
| 9004A-56064 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.65 |
1 | ||
| 9004A-56073 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.10 |
1 | ||
| 9004A-56074 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.15 |
1 | ||
| 9004A-56071 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.00 |
1 | ||
| 9004A-56079 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.40 |
1 | ||
| 9004A-56076 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.25 |
1 | ||
| 9004A-56080 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.45 |
1 | ||
| 9004A-56078 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.35 |
1 | ||
| 9004A-56072 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=2.05 |
1 | ||
| 9004A-56068 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.85 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-BZ030 |
F652..5F..(GCC,MXC,PHL,SA,TH) |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 9004A-36029 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 9004A-36029 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-BZ020 |
F65# |
1 | ||
| 41311-BZ021 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41312 - COVER, DIFFERENTIAL CASE | ||||
| 41312-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-BZ010 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-BZ010 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-BZ010 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-BZ010 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-BZ030 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-BZ030 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.15 |
2 | ||
| 41361-BZ050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.3 |
2 | ||
| 41361-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.25 |
2 | ||
| 41361-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.2 |
2 | ||
| 41361-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.35 |
2 | ||
| 41361-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.1 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-BZ010 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.15 |
2 | ||
| 41361-BZ050 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.3 |
2 | ||
| 41361-BZ020 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.25 |
2 | ||
| 41361-BZ060 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.2 |
2 | ||
| 41361-BZ030 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.35 |
2 | ||
| 41361-BZ040 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH T=1.1 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-BZ010 |
F652 |
1 | ||
| 41371-BZ011 |
F652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 9004A-10046 | ||||
| 9004A-11083 | ||||
| 9004A-17143 | ||||
| 9004A-20046 | ||||

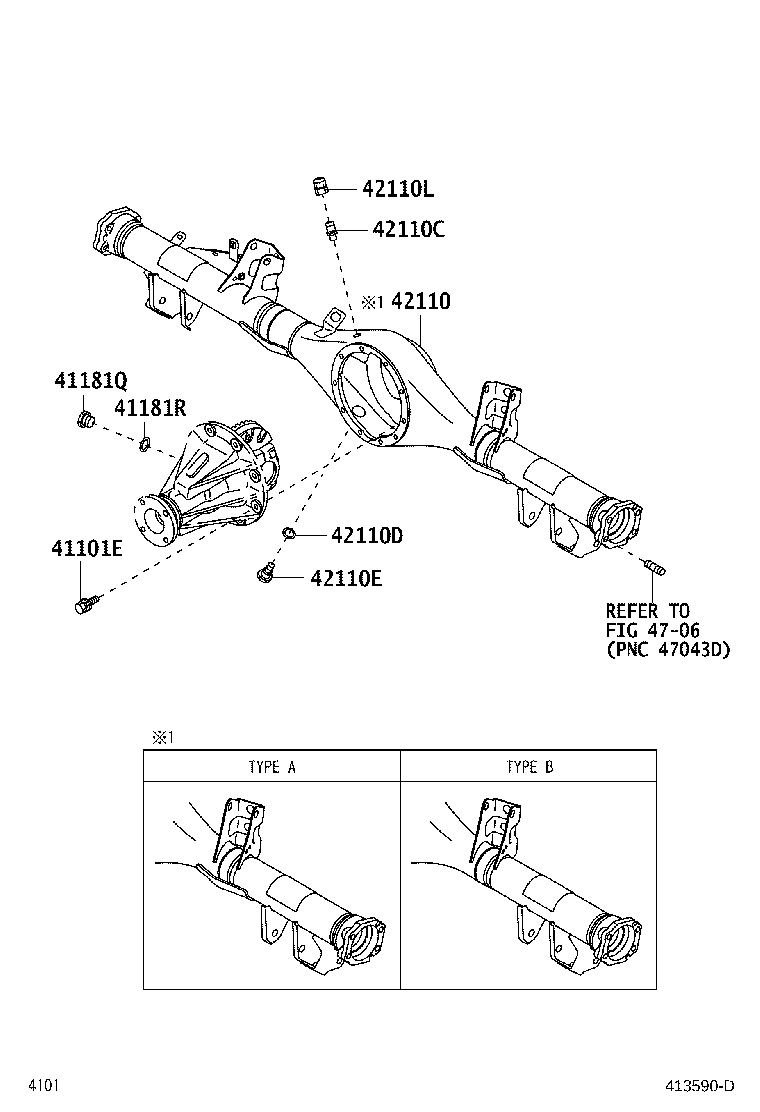

ILLUST NO. 2 OF 2(1111- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90041-19291 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
10 | ||
| 41181Q - PLUG(FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90043-41046 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 41181R - GASKET(FOR REAR DIFFERENTIAL CARRIER PLUG) | ||||
| 90044-30237 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-BZ240 |
F652..MXC;F652..STD..(MA,TH) TYPE B |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90049-15026 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90044-30237 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90043-41068 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| 42110L - PLUG BREATHER, NO.2 | ||||
| 9004A-93004 |
F651,652..GCC,GEN,MA,MXC,PHL,SA,TH |
1 | ||
| Linked diagrams | ||||
| 4706 | ||||
