F652LM-GMMFX (2011)

Toyota Avanza

Production Dec 2011 - Aug 2015
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1311)3SZVE..MXC,TH ; (1111-1508)3SZVE..GEN,IDN,MA,PHL,SA ; (1404-1508)3SZVE..

Click highlighted areas on diagram

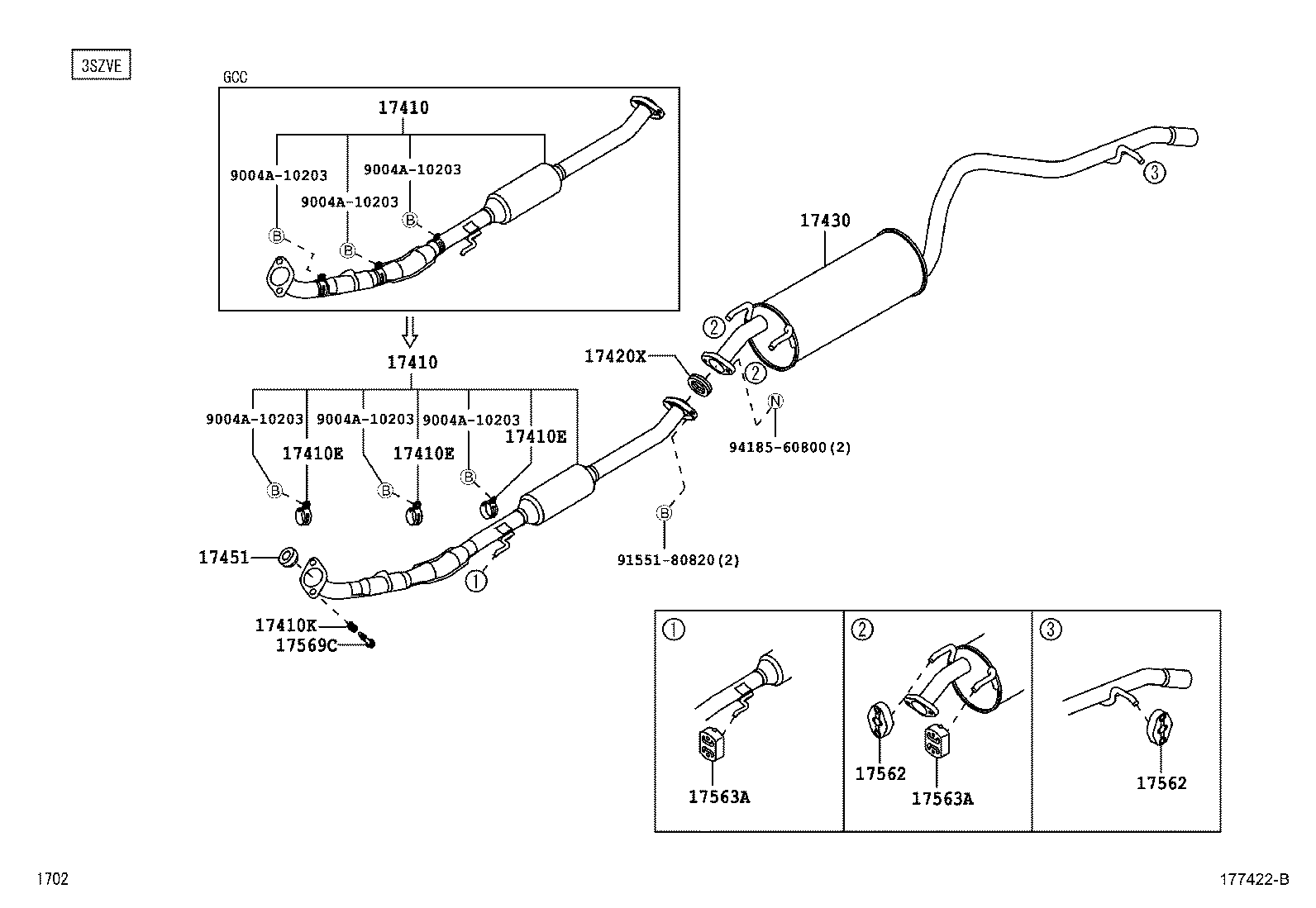

diagram 17410 17410 17410E 17410E 17410E 17410K 17420X 17430 17451 17562 17562 17563A 17563A 17569C 9004A10203 9004A10203 9004A10203 9004A10203 9004A10203 9004A10203 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ470

3SZVE..F652..MXC,TH

 1
17410-BZ610

3SZVE..F652..MXC,TH

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ470

3SZVE..F652..MXC,TH

 1
17410-BZ610

3SZVE..F652..MXC,TH

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410K - SPRING, EXHAUST PIPE
17152-BZ010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-BZ010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ290

K3VE,3SZVE..F651,652..GEN,MA,MXC,PHL,SA,TH

 1
17451 - GASKET, EXHAUST PIPE
17451-B0010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ030

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ030

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17569C - BOLT, EXHAUST PIPE SUPPORT
90901-05026

K3VE,3SZVE..F65#

 2
Common parts
9004A-10203
91551-80820
94185-60800

(1312-1508)3SZVE..MXC,TH

Click highlighted areas on diagram

diagram 17410 17410E 17410E 17410E 17410K 17420X 17430 17451 17452 17452 17562 17562 17563A 17563A 17569C 9004A10126 9004A10126 9004A10126 9004A10126 9004A10203 9004A10203 9004A10203 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ470

3SZVE..F652..MXC,TH

 1
17410-BZ610

3SZVE..F652..MXC,TH

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

3SZVE..F652..GEN,MA,MXC,PHL,SA,TH

 3
17410K - SPRING, EXHAUST PIPE
17152-BZ010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-BZ010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ290

K3VE,3SZVE..F651,652..GEN,MA,MXC,PHL,SA,TH

 1
17451 - GASKET, EXHAUST PIPE
17451-B0010

K3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH

 1
17452 - CLAMP, EXHAUST PIPE
17452-BZ010

3SZVE..F652..MXC,TH

 2
17452 - CLAMP, EXHAUST PIPE
17452-BZ010

3SZVE..F652..MXC,TH

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ030

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ030

K3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH

 2
17569C - BOLT, EXHAUST PIPE SUPPORT
90901-05026

K3VE,3SZVE..F65#

 2
Common parts
9004A-10126
9004A-10203
91551-80820
94185-60800
