F651RM-GQMFJ (2011)
Toyota Avanza
Production
Nov 2011
-
Jul 2015
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1111-1508)F651,652..4AT

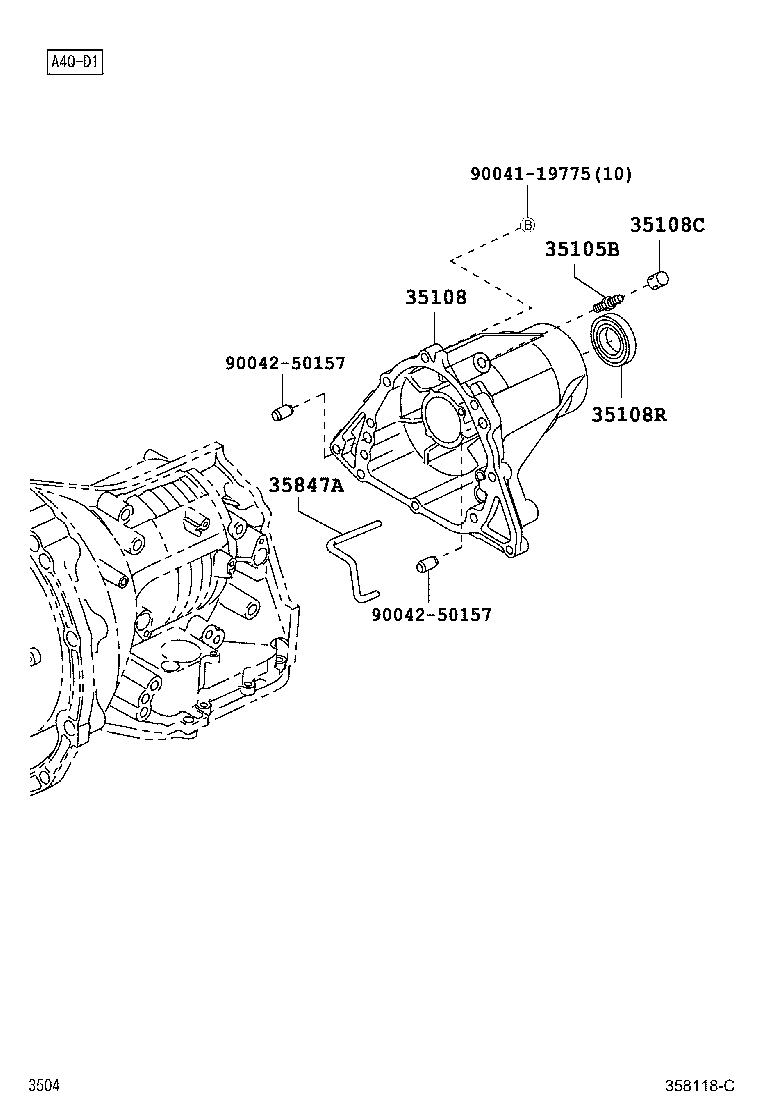

Click highlighted areas on diagram
A4Q-D1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35105B - PLUG, BREATHER | ||||
| 90049-15048 |
F65#..4AT..IDN |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-B0011 |
F65#..4AT..IDN |
1 | ||
| 35108C - PLUG (FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 90049-15050 |
F65#..4AT..IDN |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90043-11285 |
F65#..4AT..IDN |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-97501 |
F65#..4AT..IDN |
1 | ||
| Common parts | ||||
| 90041-19775 | ||||
| 90042-50157 | ||||
