F651RM-GQMFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)F651,652..4AT

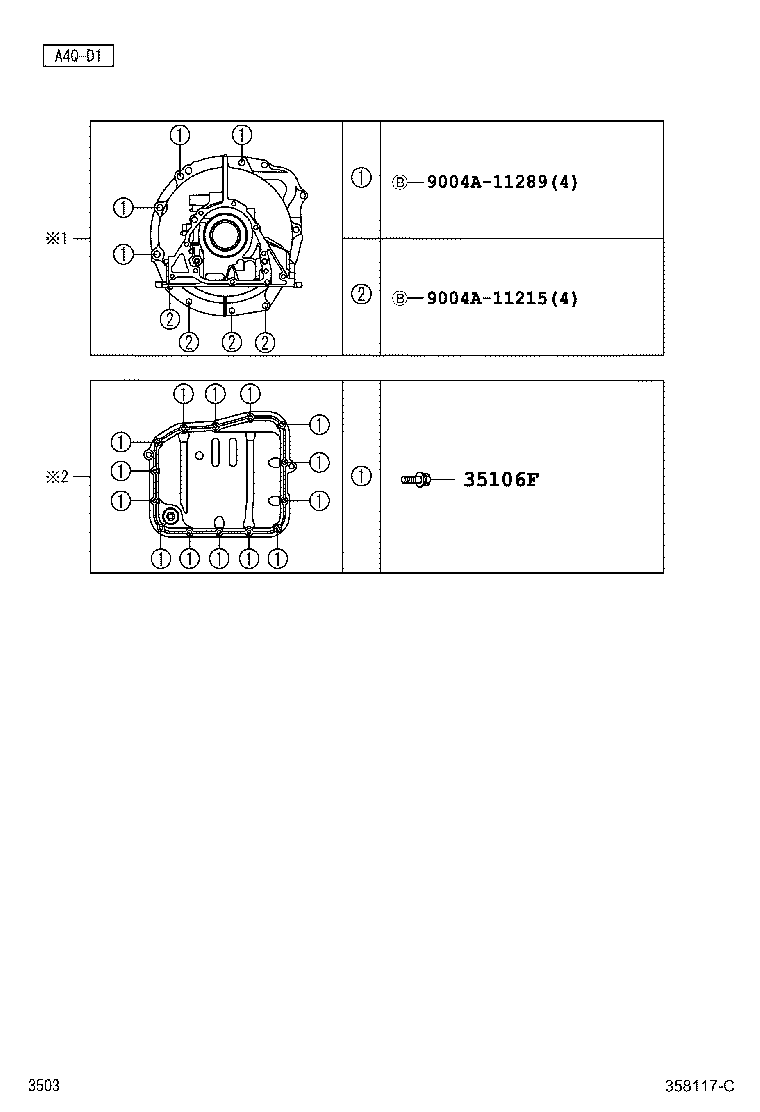

Click highlighted areas on diagram

A4Q-D1

diagram 35106F 9004A11215 9004A11289
Part # Description Qty Price
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90041-20203

F65#..4AT..IDN

 14
Common parts
9004A-11215
9004A-11289

(1111-1508)F651,652..4AT..GCC,GEN,IDN,MXC,PHL,SA,TH

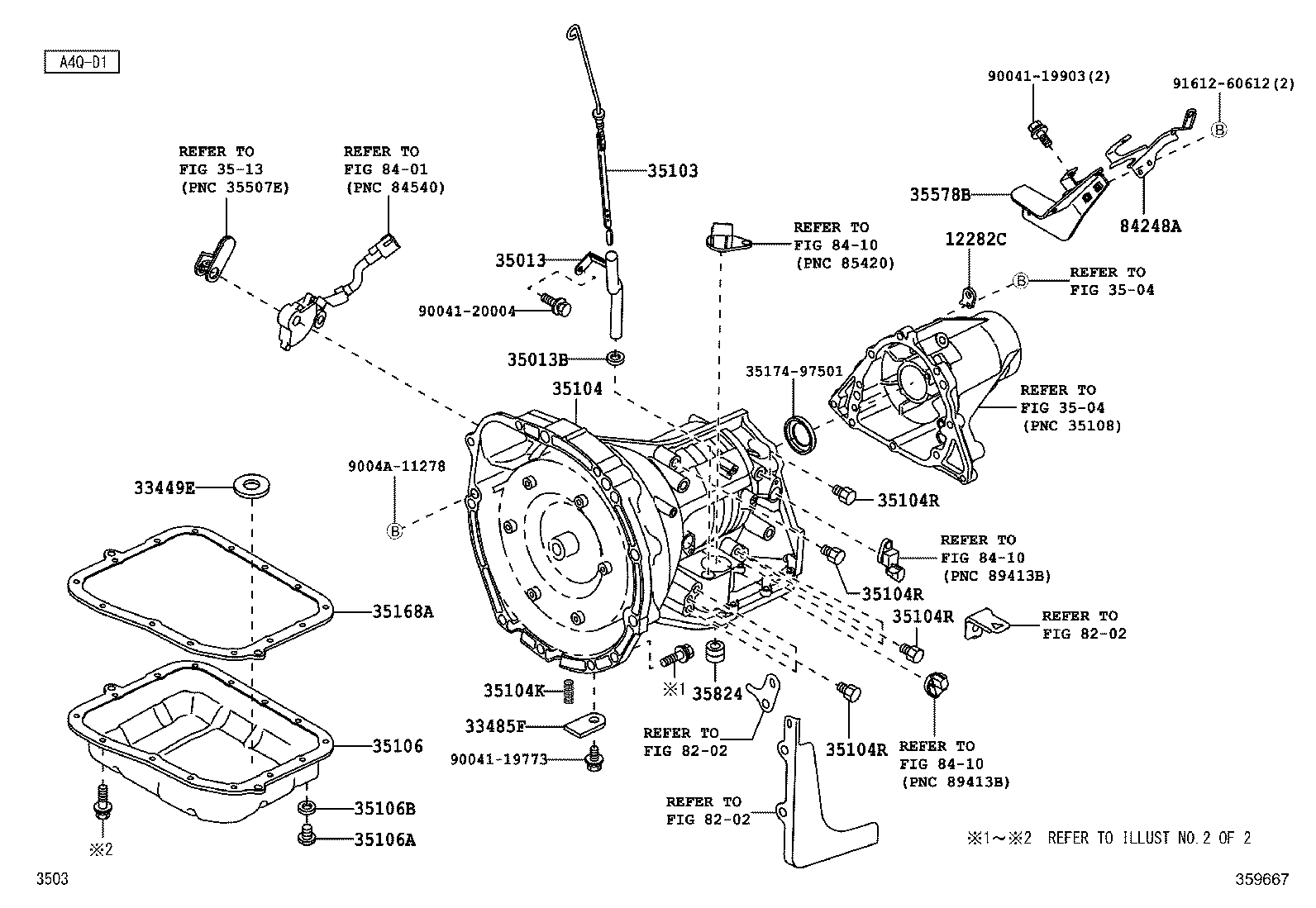

Click highlighted areas on diagram

diagram 12282C 33449E 33485F 35013 35013B 3504 3504 35103 35104 35104K 35104R 35104R 35104R 35104R 35106 35106A 35106B 3513 35168A 3517497501 35578B 35824 8202 8202 8202 8401 8410 8410 8410 84248A 9004119773 9004119903 9004120004 9004A11278 9161260612
Part # Description Qty Price
12282C - HANGER, ENGINE, NO.2
12282-B5030

K3VE,3SZVE..F65#..4AT..IDN

 1
33449E - MAGNET, TRANSAXLE
33449-B2010

F65#..4AT..IDN

 1
33485F - PLATE, SPEEDMETER LOCK
33485-87201

F65#..4AT..IDN

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-87402

F65#..4AT..IDN

 1
35013B - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90043-01193

F65#..4AT..IDN

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-B0010

F65#..4AT..IDN

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35141-B0011

F65#..4AT..(GCC,GEN,IDN,MXC,PHL,SA,TH)

 1
35141-B0012

F65#..4AT..(GCC,GEN,IDN,MXC,PHL,SA,TH)

 1
35104K - COMPRESSION SPRING, TRANSAXLE CASE
90045-01801

F65#..4AT..IDN

 1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90043-45040

F65#..4AT..IDN

 8
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90043-45040

F65#..4AT..IDN

 8
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90043-45040

F65#..4AT..IDN

 8
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90043-45040

F65#..4AT..IDN

 8
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-B1020

F65#..4AT..IDN

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90043-41041

F65#..4AT..IDN

 1
35106B - GASKET, DRAIN PLUG (ATM)
90044-30281

F65#..4AT..IDN

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-B1020

F65#..4AT..IDN

 1
35578B - BRACKET, TRANSMISSION CONTROL CABLE
33524-B0010

F65#..4AT..IDN

 1
35824 - SEAL, BRAKE CYLINDER
35824-97501

F65#..4AT..IDN

 1
84248A - CLAMP, SWITCH HARNESS
84248-BZ020

F65#..4AT..IDN

 1
Common parts
35174-97501
90041-19773
90041-19903
90041-20004
9004A-11278
91612-60612
Linked diagrams
3504
3513
8202
8401
8410
