F651RM-GQMFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1507)4AT..IDN ; (1111-1508)4AT..GCC,GEN,MA,MXC,PHL,SA,TH

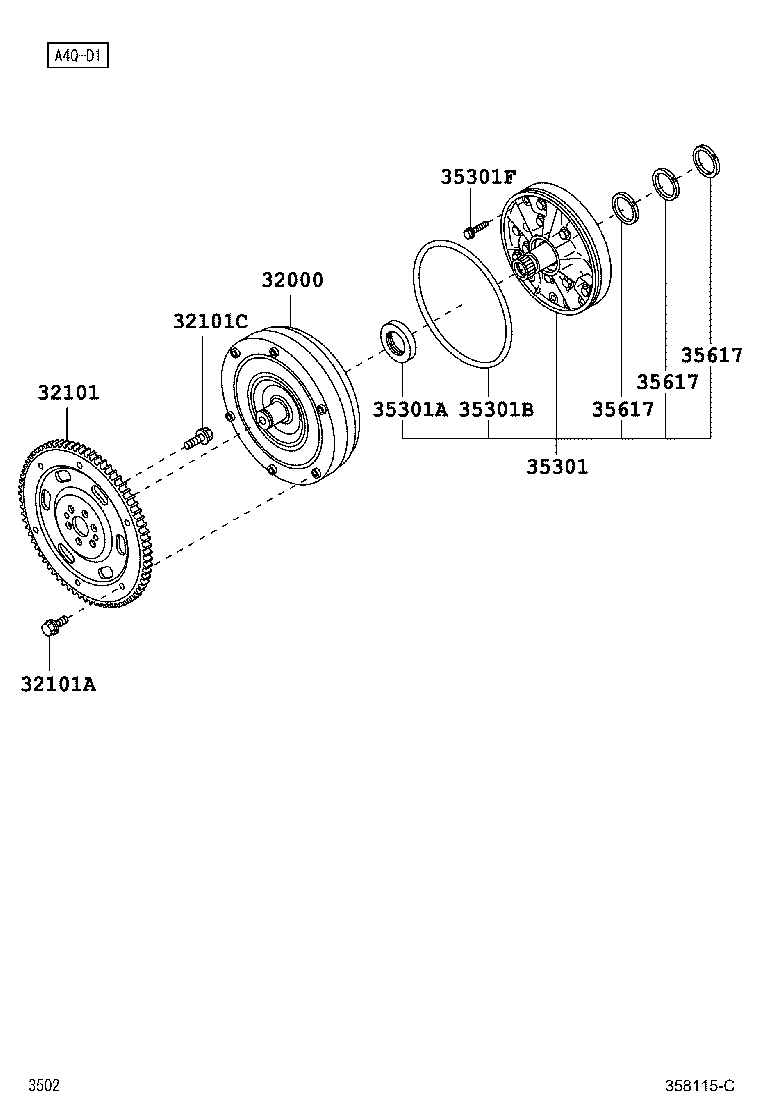

Click highlighted areas on diagram

A4Q-D1

diagram 32000 32101 32101A 32101C 35301 35301A 35301B 35301F 35617 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-B1020

F651..4AT..IDN

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-B1020

F65#..4AT..IDN

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05273

F651,652..4AT

M8,L=9.5,SILVER

 1
90041-05281

F651,652..4AT

M8,L=9.5,BLACK

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

F65#..4AT..IDN

 6
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35310-97203

F65#..4AT..IDN

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90043-11336

F65#..4AT..IDN

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90043-01161

F65#..4AT..IDN

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90041-05122

F65#..4AT..IDN

 7
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

F65#..4AT..IDN

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

F65#..4AT..IDN

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35653-97201

F65#..4AT..IDN

 3
