F651RM-GQMFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )4AT

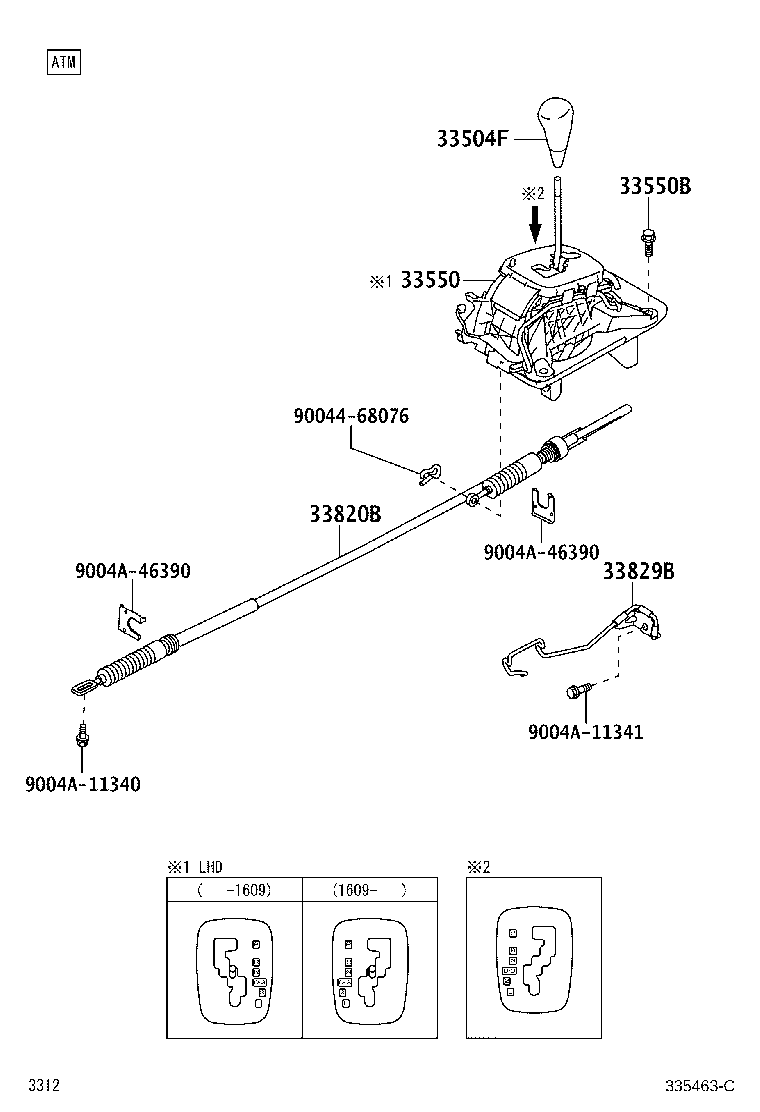

Click highlighted areas on diagram

ATM

diagram 33504F 33550 33550B 33820B 33829B 9004468076 9004A11340 9004A11341 9004A46390 9004A46390
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-BZ110C0

F651..4AT..IDN

BLACK,TRIM4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-BZ180C0

F651..4AT..IDN

BLACK,TRIM4#

 1
33550B - BOLT, W/WASHER (FOR FLOOR SHIFT)
91551-80828

F65#..4AT..IDN

 4
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-BZ020

F65#..4AT..IDN

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-BZ080

F65#..4AT..IDN

 1
Common parts
90044-68076
9004A-11340
9004A-11341
9004A-46390
