F651RM-GQMFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)K3VE

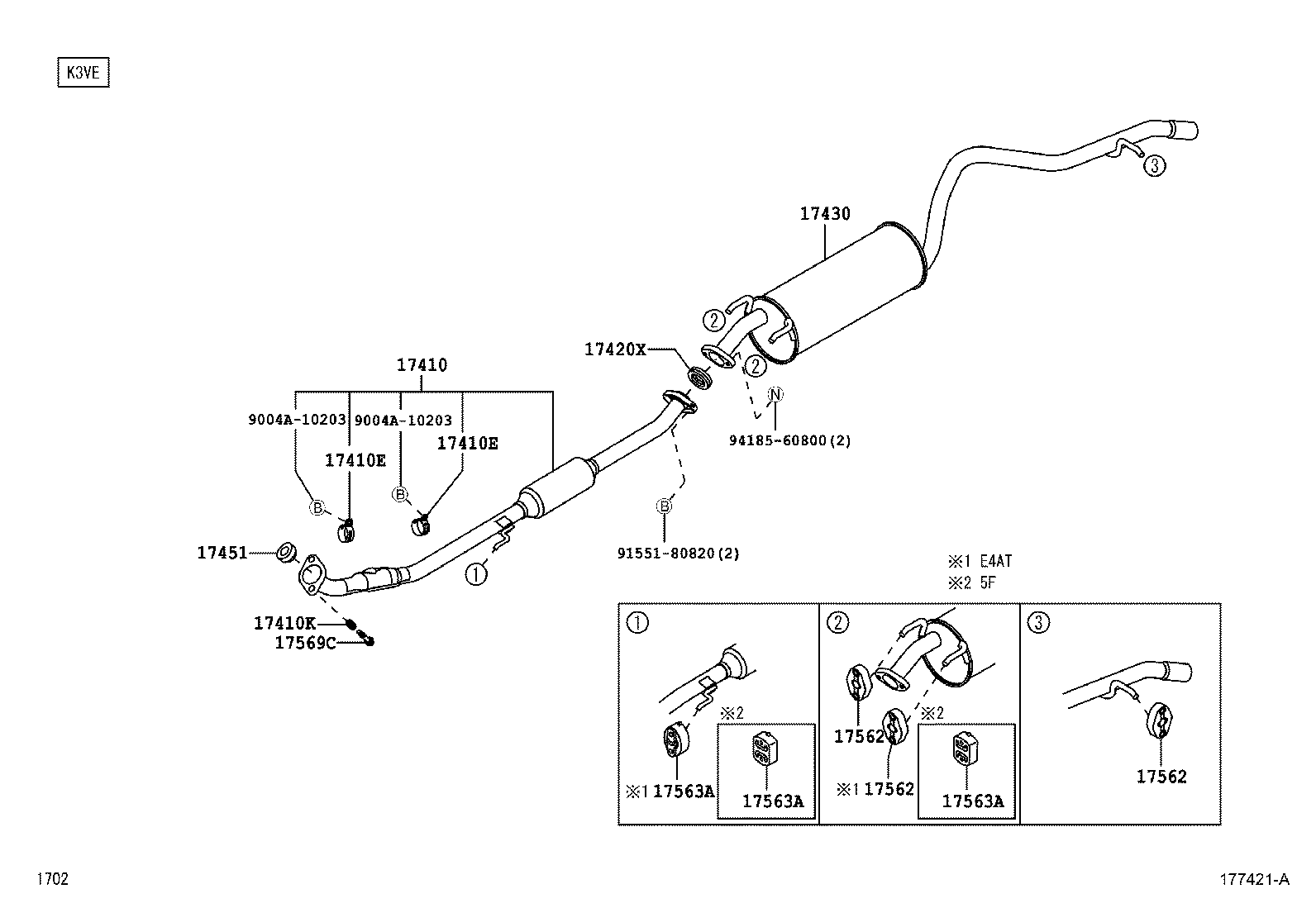

Click highlighted areas on diagram

diagram 17410 17410E 17410E 17410K 17420X 17430 17451 17562 17562 17562 17563A 17563A 17563A 17569C 9004A10203 9004A10203 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ420

K3VE..F651..IDN

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

K3VE..F651..IDN

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90461-12418

K3VE..F651..IDN

 2
17410K - SPRING, EXHAUST PIPE
17152-BZ010

K3VE,3SZVE..F65#..IDN

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-BZ010

K3VE,3SZVE..F65#..IDN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ290

K3VE,3SZVE..F65#..IDN

 1
17451 - GASKET, EXHAUST PIPE
17451-B0010

K3VE,3SZVE..F65#..IDN

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..4AT..IDN

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..4AT..IDN

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

K3VE..F651..4AT..IDN

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ040

K3VE..F651..4AT..IDN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ040

K3VE..F651..4AT..IDN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ040

K3VE..F651..4AT..IDN

 1
17569C - BOLT, EXHAUST PIPE SUPPORT
90901-05026

K3VE,3SZVE..F65#

 2
Common parts
9004A-10203
91551-80820
94185-60800
