F651RM-GQMFJ (2011)
Toyota Avanza
(1111-1508)K3VE,3SZVE

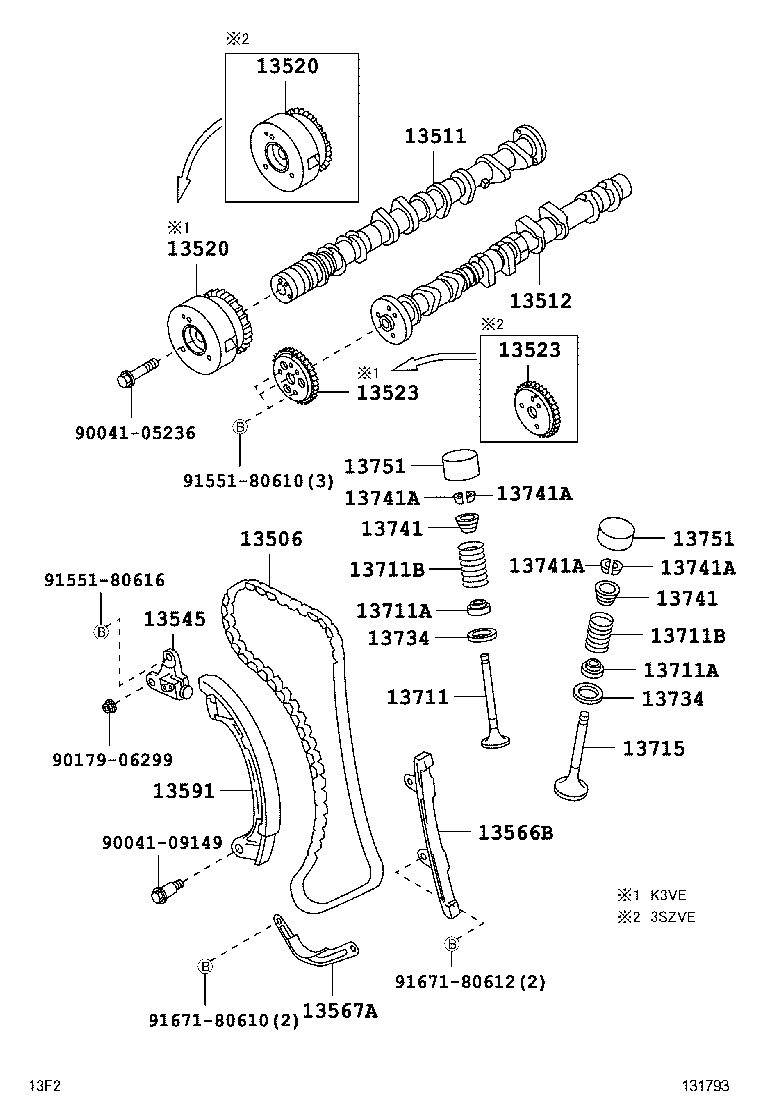

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-97401 |
K3VE..F651..IDN |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-BZ010 |
K3VE..F651..IDN LOCAL SOURCED PARTS |
1 | ||
| 13501-97401 |
K3VE..F651..IDN JAPAN SOURCED PARTS |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-BZ010 |
K3VE,3SZVE..F65#..IDN LOCAL SOURCED PARTS |
1 | ||
| 13502-97401 |
K3VE,3SZVE..F65#..IDN JAPAN SOURCED PARTS |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-BZ050 |
K3VE..F651..IDN |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-BZ050 |
K3VE..F651..IDN |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-97401 |
K3VE..F651..IDN |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-97401 |
K3VE..F651..IDN |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-97401 |
K3VE..F651 |
1 | ||
| 13545-BZ040 |
K3VE..F651..IDN |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-BZ060 |
K3VE..F651..IDN |
1 | ||
| 13566-97401 |
K3VE..F651 |
1 | ||
| 13567A - GUIDE, TIMING CHAIN, NO.2 | ||||
| 13567-BZ010 |
K3VE..F651..IDN |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-BZ060 |
K3VE..F651..IDN |
1 | ||
| 13591-97401 |
K3VE..F651 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-BZ060 |
K3VE,3SZVE..F65#..IDN |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 9004A-31023 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 9004A-31023 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 9004A-50087 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 9004A-50087 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-BZ060 |
K3VE,3SZVE..F65#..IDN |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
K3VE,3SZVE..F65#..IDN |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE,3SZVE..F65#..IDN |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE,3SZVE..F65#..IDN |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE,3SZVE..F65#..IDN |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE,3SZVE..F65#..IDN |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-BZ030 |
K3VE,3SZVE..F65#..IDN T=5.12 |
16 | ||
| 13751-BZ050 |
K3VE,3SZVE..F65#..IDN T=5.16 |
16 | ||
| 13751-BZ040 |
K3VE,3SZVE..F65#..IDN T=5.14 |
16 | ||
| 13751-BZ060 |
K3VE,3SZVE..F65#..IDN T=5.18 |
16 | ||
| 13751-BZ110 |
K3VE,3SZVE..F65#..IDN T=5.28 |
16 | ||
| 13751-BZ180 |
K3VE,3SZVE..F65#..IDN T=5.42 |
16 | ||
| 13751-BZ100 |
K3VE,3SZVE..F65#..IDN T=5.26 |
16 | ||
| 13751-BZ150 |
K3VE,3SZVE..F65#..IDN T=5.36 |
16 | ||
| 13751-BZ070 |
K3VE,3SZVE..F65#..IDN T=5.20 |
16 | ||
| 13751-BZ130 |
K3VE,3SZVE..F65#..IDN T=5.32 |
16 | ||
| 13751-BZ090 |
K3VE,3SZVE..F65#..IDN T=5.24 |
16 | ||
| 13751-BZ210 |
K3VE,3SZVE..F65#..IDN T=5.48 |
16 | ||
| 13751-BZ160 |
K3VE,3SZVE..F65#..IDN T=5.38 |
16 | ||
| 13751-BZ220 |
K3VE,3SZVE..F65#..IDN T=5.50 |
16 | ||
| 13751-BZ190 |
K3VE,3SZVE..F65#..IDN T=5.44 |
16 | ||
| 13751-BZ230 |
K3VE,3SZVE..F65#..IDN T=5.52 |
16 | ||
| 13751-BZ080 |
K3VE,3SZVE..F65#..IDN T=5.22 |
16 | ||
| 13751-BZ140 |
K3VE,3SZVE..F65#..IDN T=5.34 |
16 | ||
| 13751-BZ200 |
K3VE,3SZVE..F65#..IDN T=5.46 |
16 | ||
| 13751-BZ250 |
K3VE,3SZVE..F65#..IDN T=5.56 |
16 | ||
| 13751-BZ170 |
K3VE,3SZVE..F65#..IDN T=5.40 |
16 | ||
| 13751-BZ280 |
K3VE,3SZVE..F65#..IDN T=5.62 |
16 | ||
| 13751-BZ120 |
K3VE,3SZVE..F65#..IDN T=5.30 |
16 | ||
| 13751-BZ270 |
K3VE,3SZVE..F65#..IDN T=5.60 |
16 | ||
| 13751-BZ290 |
K3VE,3SZVE..F65#..IDN T=5.64 |
16 | ||
| 13751-BZ300 |
K3VE,3SZVE..F65#..IDN T=5.66 |
16 | ||
| 13751-BZ240 |
K3VE,3SZVE..F65#..IDN T=5.54 |
16 | ||
| 13751-BZ260 |
K3VE,3SZVE..F65#..IDN T=5.58 |
16 | ||
| 13751-BZ310 |
K3VE,3SZVE..F65#..IDN T=5.68 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-BZ030 |
K3VE,3SZVE..F65#..IDN T=5.12 |
16 | ||
| 13751-BZ050 |
K3VE,3SZVE..F65#..IDN T=5.16 |
16 | ||
| 13751-BZ040 |
K3VE,3SZVE..F65#..IDN T=5.14 |
16 | ||
| 13751-BZ060 |
K3VE,3SZVE..F65#..IDN T=5.18 |
16 | ||
| 13751-BZ110 |
K3VE,3SZVE..F65#..IDN T=5.28 |
16 | ||
| 13751-BZ180 |
K3VE,3SZVE..F65#..IDN T=5.42 |
16 | ||
| 13751-BZ100 |
K3VE,3SZVE..F65#..IDN T=5.26 |
16 | ||
| 13751-BZ150 |
K3VE,3SZVE..F65#..IDN T=5.36 |
16 | ||
| 13751-BZ070 |
K3VE,3SZVE..F65#..IDN T=5.20 |
16 | ||
| 13751-BZ130 |
K3VE,3SZVE..F65#..IDN T=5.32 |
16 | ||
| 13751-BZ090 |
K3VE,3SZVE..F65#..IDN T=5.24 |
16 | ||
| 13751-BZ210 |
K3VE,3SZVE..F65#..IDN T=5.48 |
16 | ||
| 13751-BZ160 |
K3VE,3SZVE..F65#..IDN T=5.38 |
16 | ||
| 13751-BZ220 |
K3VE,3SZVE..F65#..IDN T=5.50 |
16 | ||
| 13751-BZ190 |
K3VE,3SZVE..F65#..IDN T=5.44 |
16 | ||
| 13751-BZ230 |
K3VE,3SZVE..F65#..IDN T=5.52 |
16 | ||
| 13751-BZ080 |
K3VE,3SZVE..F65#..IDN T=5.22 |
16 | ||
| 13751-BZ140 |
K3VE,3SZVE..F65#..IDN T=5.34 |
16 | ||
| 13751-BZ200 |
K3VE,3SZVE..F65#..IDN T=5.46 |
16 | ||
| 13751-BZ250 |
K3VE,3SZVE..F65#..IDN T=5.56 |
16 | ||
| 13751-BZ170 |
K3VE,3SZVE..F65#..IDN T=5.40 |
16 | ||
| 13751-BZ280 |
K3VE,3SZVE..F65#..IDN T=5.62 |
16 | ||
| 13751-BZ120 |
K3VE,3SZVE..F65#..IDN T=5.30 |
16 | ||
| 13751-BZ270 |
K3VE,3SZVE..F65#..IDN T=5.60 |
16 | ||
| 13751-BZ290 |
K3VE,3SZVE..F65#..IDN T=5.64 |
16 | ||
| 13751-BZ300 |
K3VE,3SZVE..F65#..IDN T=5.66 |
16 | ||
| 13751-BZ240 |
K3VE,3SZVE..F65#..IDN T=5.54 |
16 | ||
| 13751-BZ260 |
K3VE,3SZVE..F65#..IDN T=5.58 |
16 | ||
| 13751-BZ310 |
K3VE,3SZVE..F65#..IDN T=5.68 |
16 | ||
| Common parts | ||||
| 90041-05236 | ||||
| 90041-09149 | ||||
| 90179-06299 | ||||
| 91551-80610 | ||||
| 91551-80616 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
