F651RM-GQDFJ (2011)
Toyota Avanza
Production
Nov 2011
-
Jul 2015
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1111-1508)F651,652

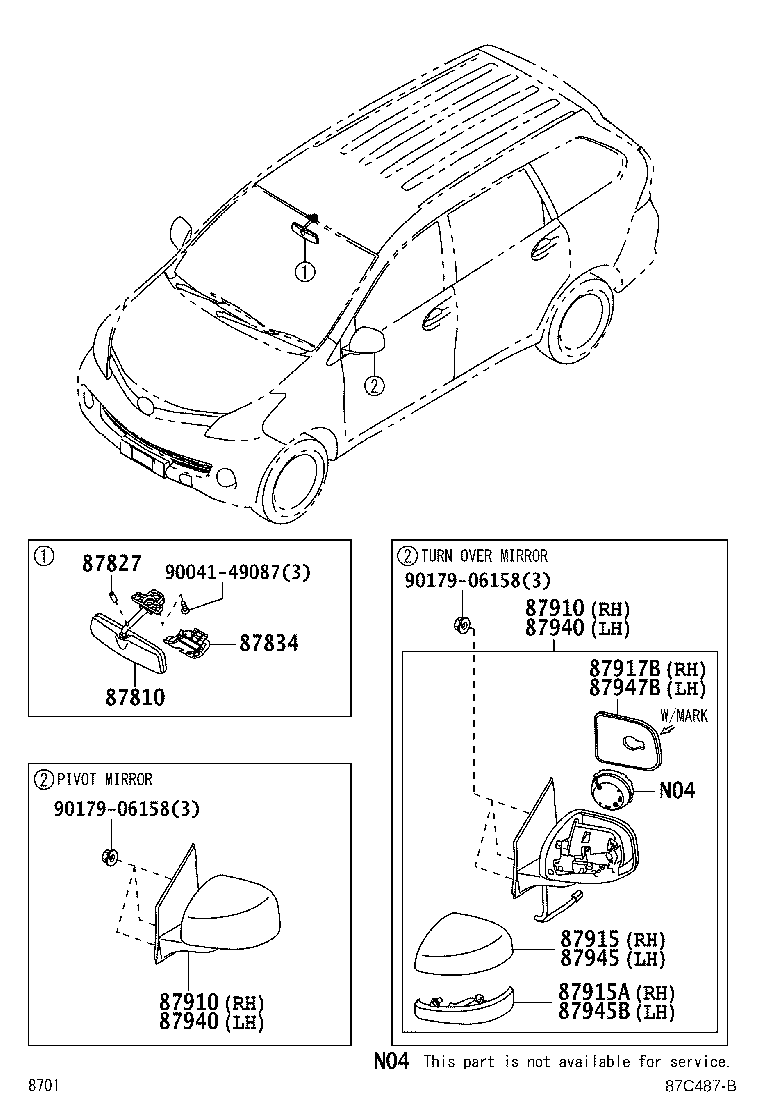

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-BZ070 |
F65#..IDN |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-BZ010 |
F65#..IDN |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-BZ051B1 |
F65#..(MID,STD)..IDN LT.GRAY,TRIM4# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ600 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87910-BZ601 |
F65#..IDN |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ600 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87910-BZ601 |
F65#..IDN |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ310 |
F65#..IDN |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ290 |
F65#..IDN |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-BZ110 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87917-BZ110 |
F65#..IDN |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ600 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87940-BZ601 |
F65#..IDN |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ600 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87940-BZ601 |
F65#..IDN |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ310 |
F65#..IDN |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ290 |
F65#..IDN |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-BZ110 |
F65#..IDN;F652..(MID,STD)..TH MARK:TAPE=BLUE |
1 | ||
| 87947-BZ110 |
F65#..IDN |
1 | ||
| Common parts | ||||
| 90041-49087 | ||||
| 90179-06158 | ||||
