F651RM-GQDFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

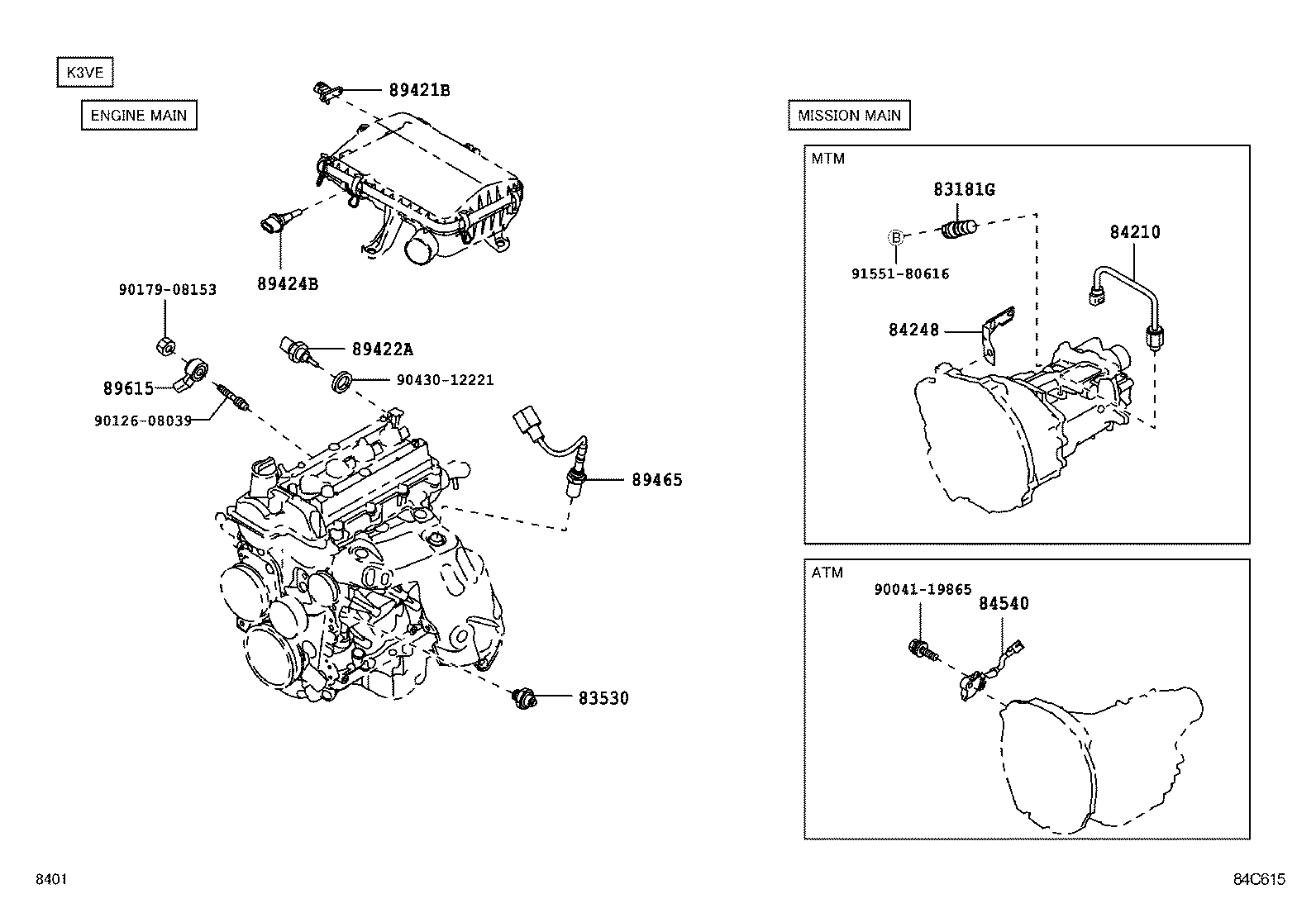

ILLUST NO. 1 OF 6(1111-1508)F651

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 83181G 83530 84210 84248 84540 89421B 89422A 89424B 89465 89615 9004119865 9012608039 9017908153 9043012221 9155180616
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-97401

F65#..IDN

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-B0010

F65#..4AT..IDN

 1
89421B - SENSOR, VACUUM
89421-BZ010

F65#..IDN

 1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ010

F65#..IDN

 1
89424B - SWITCH, INLET AIR TEMPERATURE
89424-87703

F65#..IDN

 1
89465 - SENSOR, OXYGEN
89465-BZ280

F65#..IDN

 1
89615 - SENSOR, KNOCK CONTROL
89615-BZ040

F65#..IDN

 1
89615-BZ030

F65#

 1
Common parts
90041-19865
90126-08039
90179-08153
90430-12221
91551-80616

ILLUST NO. 2 OF 6(1111-1508)F651,652

Click highlighted areas on diagram

ENGINE ROOM

diagram 82661 84243 85916P 85925 85928B 85934 86530 9004940047 9004940048 9004940049 9004940055 9004940056 9004940057 9004A11296 9004A11296 9155180610
Part # Description Qty Price
82661 - COVER, RELAY BLOCK, NO.1
82661-BZ070

F65#

 1
82661-BZ071

F65#..IDN

 1
85916P - RELAY, HEADLAMP
9004A-98011

F65#..IDN

 1
85925 - RELAY, RADIATOR FAN
9004A-98006

F65#..IDN

 1
85934 - RELAY, MAGNET-CLUTCH
90049-88004

F65#..IDN

 1
86530 - RELAY ASSY, HORN
9004A-98006

F65#..IDN

 1
Common parts
90049-40047
90049-40048
90049-40049
90049-40055
90049-40056
90049-40057
9004A-11296
91551-80610

ILLUST NO. 3 OF 6(1111-1508)F651,652..RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 28300 28371 81980 82600 84340 84345 84380 85912E 85913C 85916D 85918A 85933 85935 89530C 9004940049 9004940055 9004940056 9004940057 9004940058 9004A13001 9004A15058 9015960546 9155180612 9155180614 9155180614 9155180620
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
9004A-98006

K3VE,3SZVE..F65#..4AT..IDN

 1
28371 - RELAY, IGNITION, NO.1
9004A-98010

K3VE,3SZVE..F65#..IDN

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-BZ030

F65#..IDN

 1
82600 - BLOCK ASSY, FUSE
82660-BZ120

F65#..IDN

 1
84340 - SWITCH ASSY, STOP LAMP
84340-BZ010

F65#..IDN

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

F65#..IDN

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#..IDN

 1
85912E - RELAY, COMPUTER(FOR EFI)
9004A-98006

F65#..IDN

 1
85913C - RELAY, HEATER, NO.1
9004A-98006

F65#..IDN

 1
85918A - RELAY, DOOR CONTROL
85918-BZ060

F652..IDN;F651..(MID,STD)..(IDN,PHL)

 1
85918-BZ061

F65#..IDN

 1
85933 - COMPUTER, SHIFT LOCK CONTROL
85933-B0010

F65#..4AT..IDN

 1
85935 - RELAY, FUEL PUMP
9004A-98006

F65#..IDN

 1
89530C - COMPUTER ASSY, TRANSMISSION CONTROL
89530-B0121

F651..4AT..IDN

 1
89530-B0120

F651..4AT

 1
Common parts
90049-40049
90049-40055
90049-40056
90049-40057
90049-40058
9004A-13001
9004A-15058
90159-60546
91551-80612
91551-80614
91551-80620

ILLUST NO. 4 OF 6(1111- )

Click highlighted areas on diagram

BODY

diagram 83320 84231A 84231A 84231A 84231A 84234D 84234D 84810 84810 84810 84810 84820 84820 84931C 84947B 89279A 89760 9004A16032 9004A16032 9004A16032 9004A16032 9004A16075 9011906915 9016670001 9016670001 9016670001 9016670001
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83301-BZ150

F65#..IDN

 1
84231A - SWITCH, COURTESY LAMP
84231-BZ010

F65#..IDN

 4
84231A - SWITCH, COURTESY LAMP
84231-BZ010

F65#..IDN

 4
84231A - SWITCH, COURTESY LAMP
84231-BZ010

F65#..IDN

 4
84231A - SWITCH, COURTESY LAMP
84231-BZ010

F65#..IDN

 4
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-BZ090

F65#..IDN

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-BZ090

F65#..IDN

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-BZ090

F65#..IDN

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-BZ090

F65#..IDN

 3
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-BZ060

F65#..IDN

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-BZ060

F65#..IDN

 1
Common parts
9004A-16032
9004A-16075
90119-06915
90166-70001

ILLUST NO. 5 OF 6(1111-1901)IDN ; (1111-1904)MA,SA,TH

Click highlighted areas on diagram

SWITCH

diagram 84330 84330 84790 84870A 84986 85500 85530 85533 85535E 88660C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-BZ110

F65#..IDN

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-BZ110

F65#..IDN

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ070

F652;F651..MID..GEN;F651..RHD..(MID,STD)

 1
84870-BZ071

F65#..IDN

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-33020

F65#..IDN

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-47020

F65#..IDN

 1

ILLUST NO. 6 OF 6(1111-1508)F651,652..RHD

Click highlighted areas on diagram

STEERING

diagram 4501 84140 84250A 84306 84312 84450 84650 89650 9155180612 9155180612
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-BZ011

F651..STD..IDN

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-BZ060

F65#..(MID,STD)..IDN

 1
84306-B1010

F651..IDN;F651..LHD..LO;F652..5F..(MID,STD)..(IDN,TH)

 1
84312 - PLATE, HORN CONTACT
84312-BZ010

F651..IDN;F651..LHD..LO;F652..5F..(MID,STD)..(IDN,TH)

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-BZ040

F65#..IDN

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-BZ020

F65#..IDN

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-BZ020

F65#..IDN

 1
Common parts
91551-80612
Linked diagrams
4501
