F651RM-GQDFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1111-1508)F651,652

Click highlighted areas on diagram

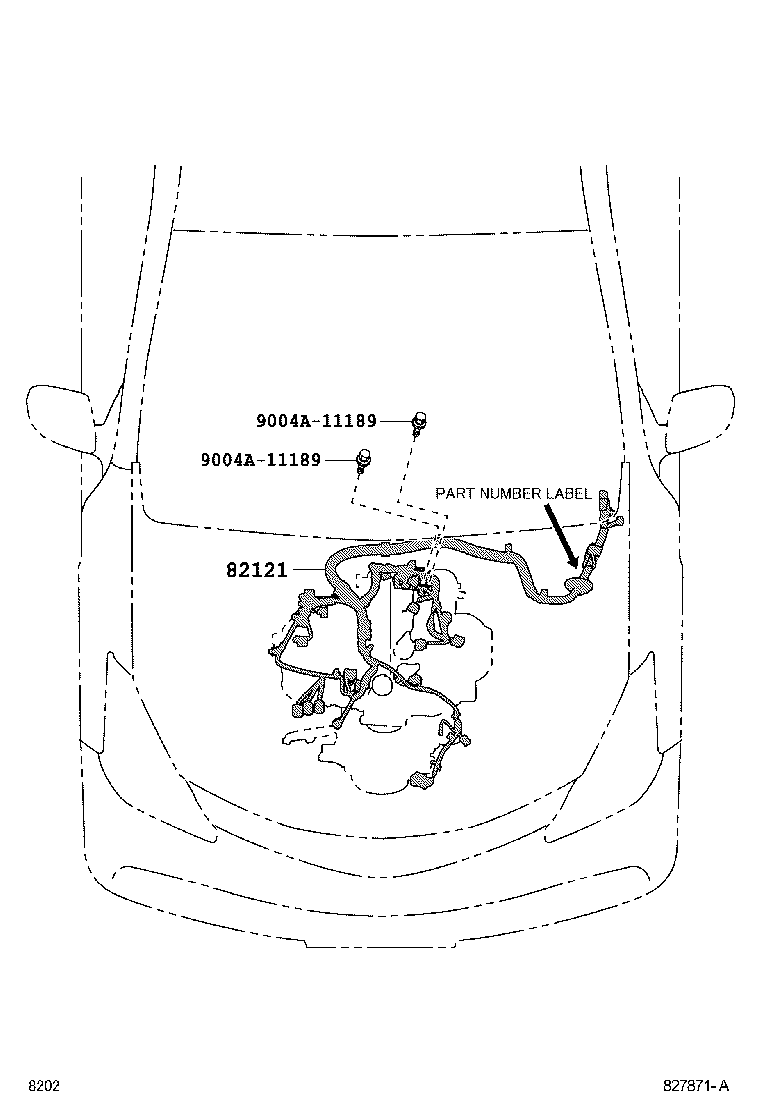

ENGINE

diagram 82121 9004A11189 9004A11189
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-BZ700

F651..IDN

 1
Common parts
9004A-11189

ILLUST NO. 2 OF 8(1111-1508)F651,652

Click highlighted areas on diagram

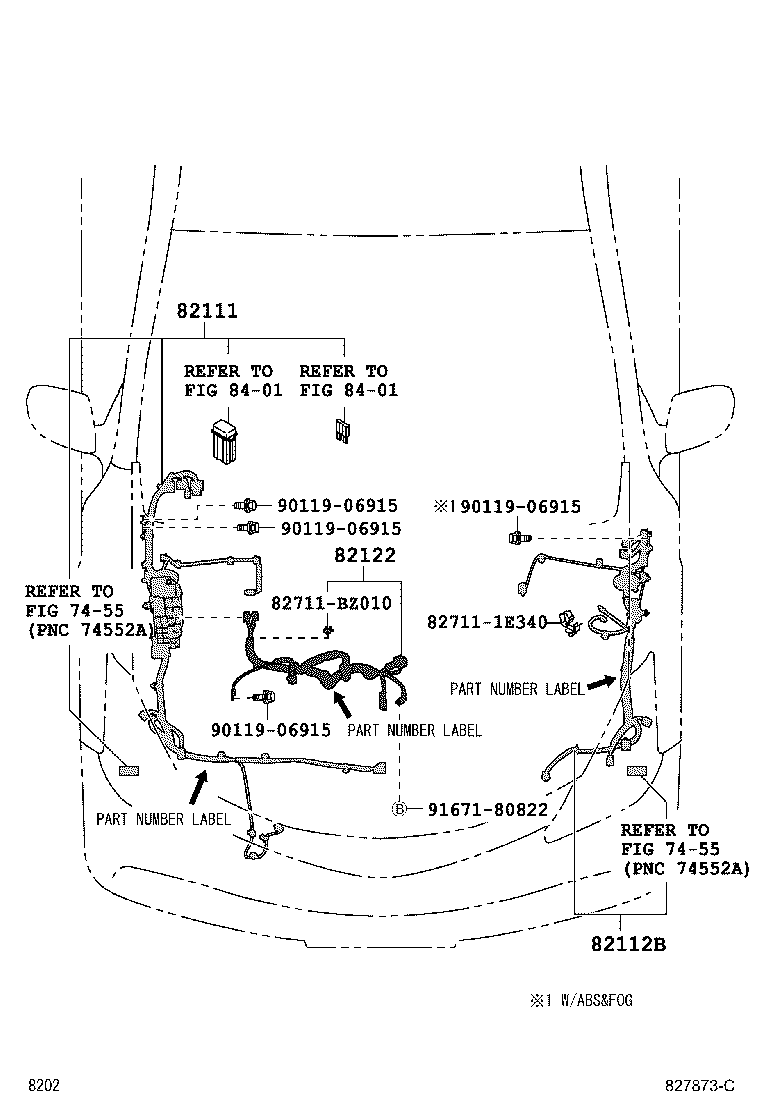

ENGINE ROOM

diagram 7455 7455 82111 82112B 82122 827111E340 82711BZ010 8401 8401 9011906915 9011906915 9011906915 9011906915 9167180822
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-BZB80

F65#..STD..(IDN,TH)

W/PART NUMBER LABEL

 1
82111-BZM30

F651..STD..IDN

W/PART NUMBER LABEL

 1
82112B - WIRE, ENGINE ROOM, NO.2
82112-BZ110

F651..STD..IDN

W/PART NUMBER LABEL

 1
82112-BZ111

F651..STD..IDN

W/PART NUMBER LABEL

 1
82112-BZ450

F651..STD..IDN

W/PART NUMBER LABEL

 1
82122 - WIRE, ENGINE, NO.2
82122-BZ260

F65#..IDN

 1
Common parts
82711-1E340
82711-BZ010
90119-06915
91671-80822
Linked diagrams
7455
8401

ILLUST NO. 3 OF 8(1111-1508)F651,652..RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 8401 8401 8601 9011906923 9011906923 9011906923 9011906923
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-BZV40

F651..4AT..STD..IDN

W/PART NUMBER LABEL

 1
82141-BZV41

F651..4AT..STD..IDN

W/PART NUMBER LABEL

 1
82141-BZS10

F651..4AT..STD..IDN

W/PART NUMBER LABEL

 1
82141-BZS11

F651..4AT..STD..IDN

W/PART NUMBER LABEL

 1
Common parts
90119-06923
Linked diagrams
8401
8601

ILLUST NO. 4 OF 8(1111- )

Click highlighted areas on diagram

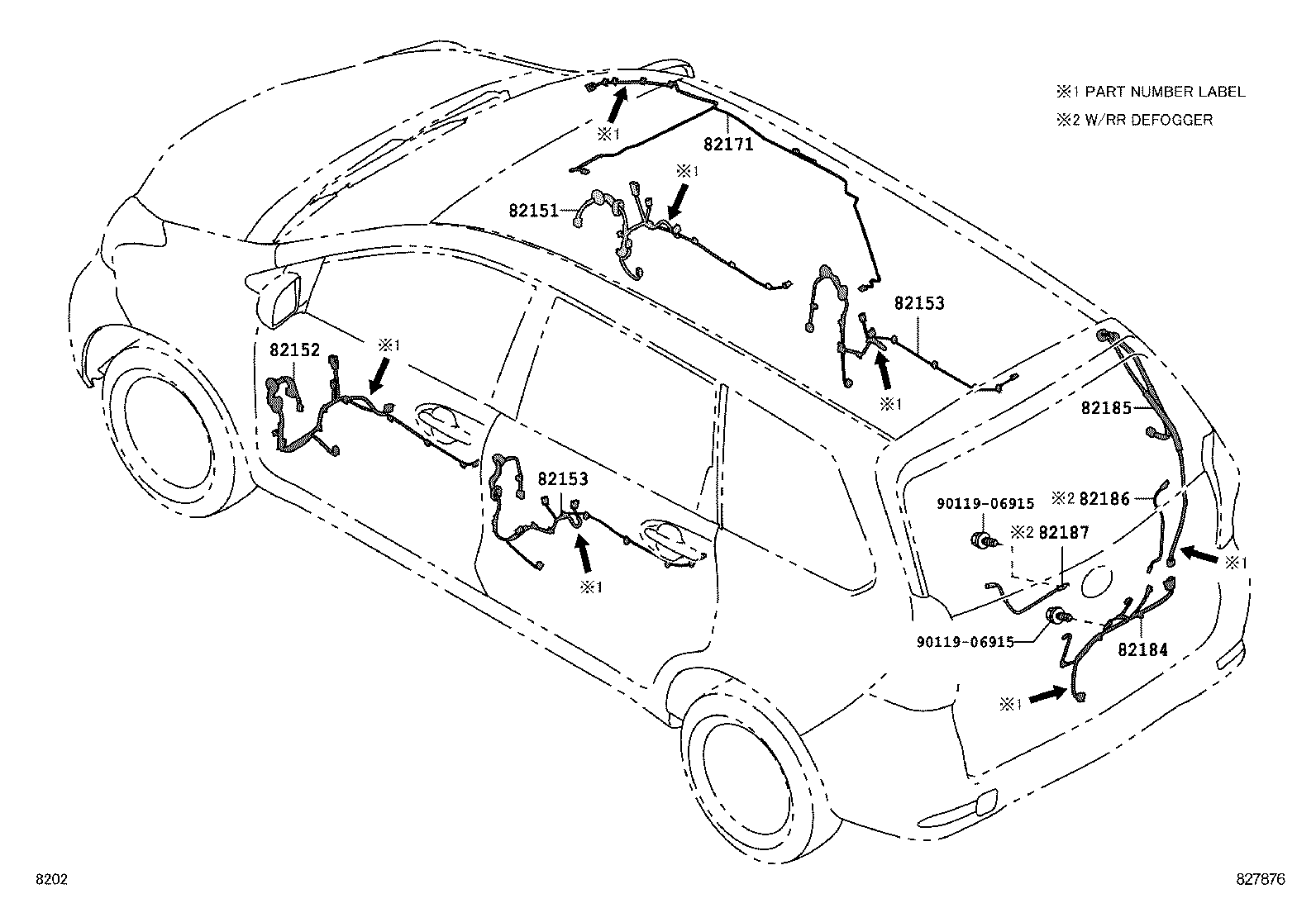

DOOR & ROOF

diagram 82151 82152 82153 82153 82171 82184 82185 82186 82187 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-BZ530

F65#..IDN

 1
82152 - WIRE, FRONT DOOR, LH
82152-BZ540

F65#..IDN

 1
82153 - WIRE, REAR DOOR, NO.1
82153-BZ250

F65#..IDN

W/PART NUMBER LABEL

 2
82153 - WIRE, REAR DOOR, NO.1
82153-BZ250

F65#..IDN

W/PART NUMBER LABEL

 2
82171 - WIRE, ROOF, NO.1
82171-BZ390

F65#..IDN

 1
82184 - WIRE, BACK DOOR, NO.1
82184-BZ390

F651..STD..IDN

W/PART NUMBER LABEL

 1
82185 - WIRE, BACK DOOR, NO.2
82185-BZ230

F651..STD..IDN

W/PART NUMBER LABEL

 1
Common parts
90119-06915

ILLUST NO. 5 OF 8(1111-1508)F651,652

Click highlighted areas on diagram

FLOOR

diagram 82161 82162 82817 82817 82817A 9011906915 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-BZF70

F65#..(MID,STD)..IDN

W/PART NUMBER LABEL

 1
82161-BZQ20

F65#..(MID,STD)..IDN

W/PART NUMBER LABEL

 1
82161-BZF71

F65#..(MID,STD)..IDN

W/PART NUMBER LABEL

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-BZ050

F65#..IDN

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-BZ050

F65#..IDN

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-BZ020

F65#..IDN

 1
Common parts
90119-06915

ILLUST NO. 6 OF 8(1111- )

Click highlighted areas on diagram

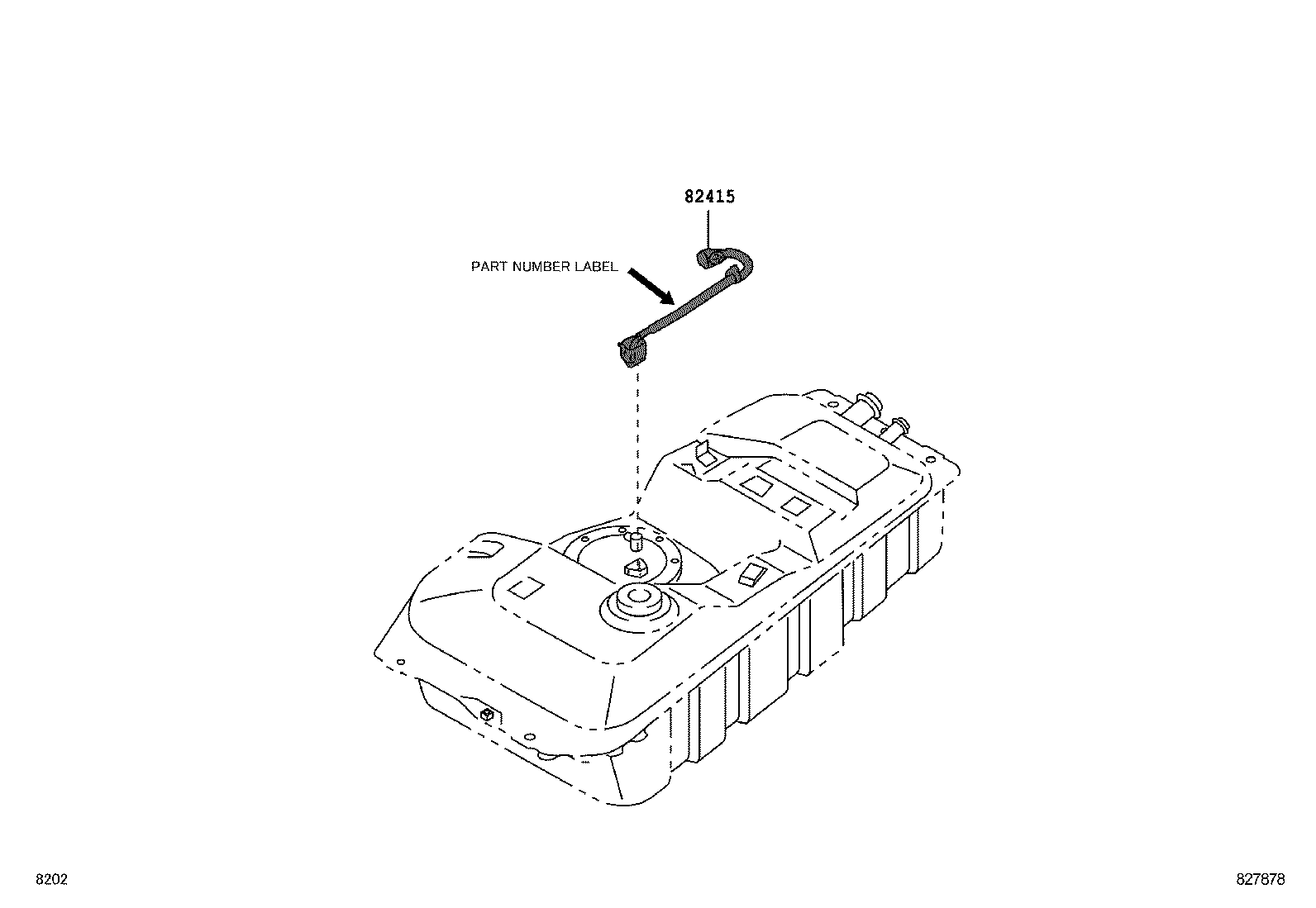

FUEL

diagram 82415
Part # Description Qty Price
82415 - WIRE, FUEL PUMP
82415-BZ140

F65#

W/PART NUMBER LABEL

 1
82415-BZ160

F65#..IDN

W/PART NUMBER LABEL

 1

ILLUST NO. 7 OF 8(1111-1508)F651,652

Click highlighted areas on diagram

CABLE BOND

diagram 82046D 82675BZ020 9004A11210
Part # Description Qty Price
82046D - WIRE, BODY GROUND
82046-BZ090

F65#..IDN

 1
Common parts
82675-BZ020
9004A-11210

ILLUST NO. 8 OF 8(1111-1508)F651,652

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 82715BZ050 82715BZ070 82715BZ080 82715BZ090 82715BZ100 82715BZ110 82715BZ130 82715BZ140 82715BZ160 82715BZ170 82715BZ180 82715BZ200 82715BZ210 82715BZ220 82715BZ290 82715BZ300 82715BZ440 82715BZ450 82715BZ460 82715BZ670 82715BZ730 82715BZ750 82715BZ760 82715BZ770 9004A11188 9004A11188 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9004A11189 9155180820 9155281012
Part # Description Qty Price
Common parts
82715-BZ050
82715-BZ070
82715-BZ080
82715-BZ090
82715-BZ100
82715-BZ110
82715-BZ130
82715-BZ140
82715-BZ160
82715-BZ170
82715-BZ180
82715-BZ200
82715-BZ210
82715-BZ220
82715-BZ290
82715-BZ300
82715-BZ440
82715-BZ450
82715-BZ460
82715-BZ670
82715-BZ730
82715-BZ750
82715-BZ760
82715-BZ770
9004A-11188
9004A-11189
91551-80820
91552-81012
