F651RM-GQDFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1507)IDN ; (1111-1508)MID..SA ; (1111-1508)F651..MA,PHL ; (1111-1508)F652..GC

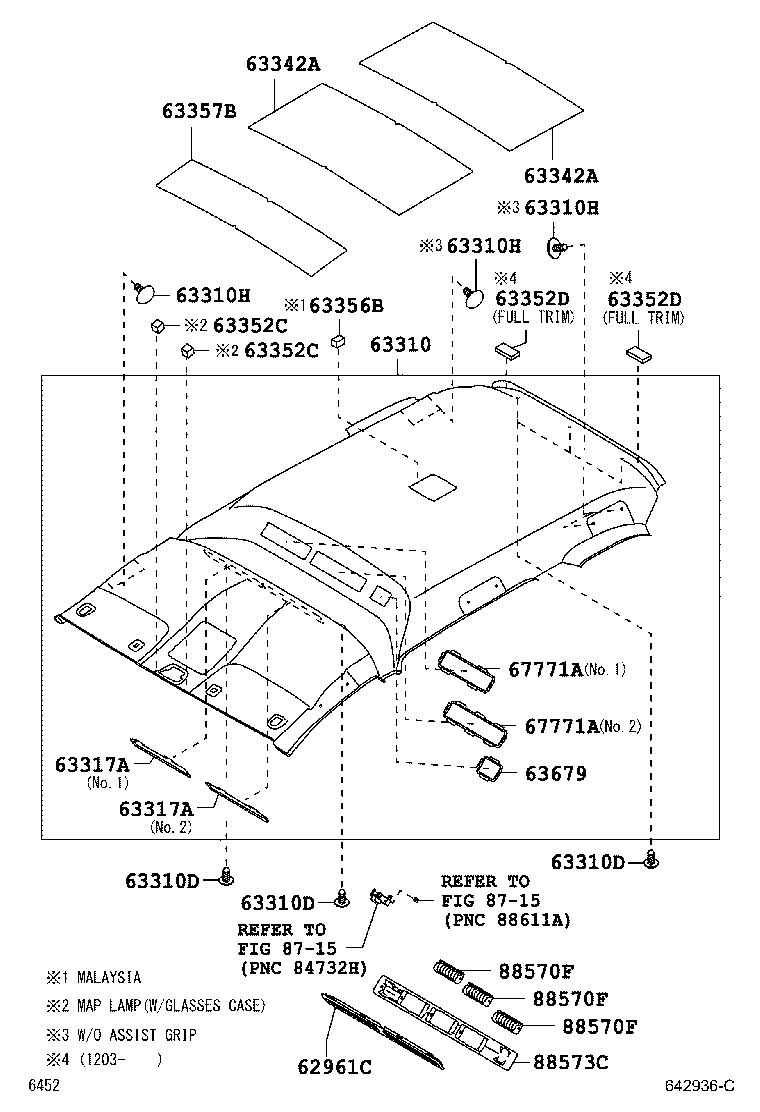

Click highlighted areas on diagram

W/AC

diagram 62961C 63310 63310D 63310D 63310D 63310H 63310H 63310H 63317A 63317A 63342A 63342A 63352C 63352C 63352D 63352D 63356B 63357B 63679 67771A 67771A 8715 8715 88570F 88570F 88570F 88573C
Part # Description Qty Price
62961C - GRILLE, ROOM VENT
62961-BZ010B1

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-BZ370B0

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 5
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 5
63310D - CLIP, ROOF HEADLINING
90467-05164P5

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F651..STD..IDN

LT.GRAY,TRIM4#

 6
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F651..STD..IDN

LT.GRAY,TRIM4#

 6
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B6

F651..STD..IDN

LT.GRAY,TRIM4#

 6
63317A - RETAINER, ROOF HEADLINING
63317-BZ020

F65#..IDN

NO.2

 1
63317-BZ010

F65#..IDN

NO.1

 1
63317A - RETAINER, ROOF HEADLINING
63317-BZ020

F65#..IDN

NO.2

 1
63317-BZ010

F65#..IDN

NO.1

 1
63342A - SILENCER, ROOF, NO.2
63342-BZ070

F65#..IDN

 2
63342A - SILENCER, ROOF, NO.2
63342-BZ070

F65#..IDN

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F65#..IDN

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-BZ040

F65#..IDN

 2
63357B - SILENCER, ROOF
63357-BZ040

F65#..IDN

 1
63679 - RETAINER, ROOF HEADLINING
63317-BZ050

F65#..IDN

 1
67771A - RETAINER, ROOF HEADLINING
63317-BZ040

F65#..IDN

NO.2

 1
63317-BZ030

F65#..IDN

NO.1

 1
67771A - RETAINER, ROOF HEADLINING
63317-BZ040

F65#..IDN

NO.2

 1
63317-BZ030

F65#..IDN

NO.1

 1
88570F - GRILLE ASSY, AIR OUTLET
87125-BZ030B1

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 3
88570F - GRILLE ASSY, AIR OUTLET
87125-BZ030B1

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 3
88570F - GRILLE ASSY, AIR OUTLET
87125-BZ030B1

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 3
88573C - BASE, GRILLE
88573-BZ010B1

F65#..(MID,STD)..IDN

LT.GRAY,TRIM4#

 1
Linked diagrams
8715
