F651RM-GQDFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1901)MID,STD..IDN ; (1111-1904)LO,MID,STD,VB..GCC,GEN,MA,MXC,PHL,SA,TH ; (190

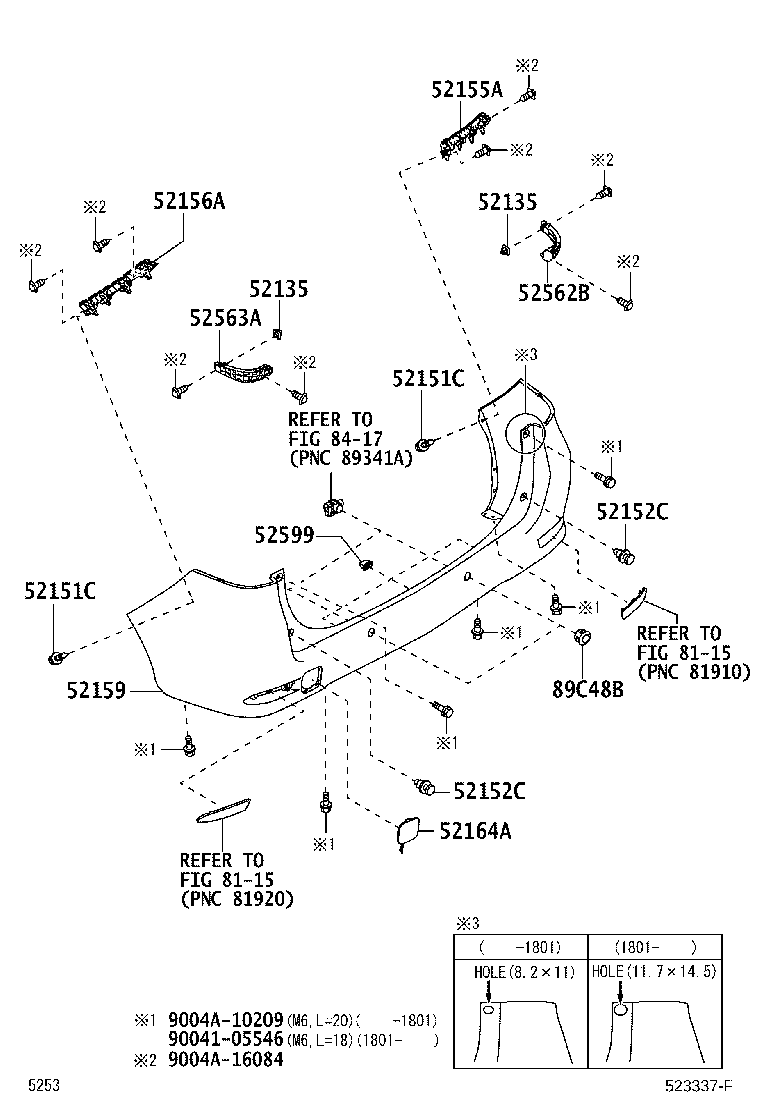

Click highlighted areas on diagram

diagram 52135 52135 52151C 52151C 52152C 52152C 52155A 52156A 52159 52164A 52562B 52563A 52599 8115 8115 8417 89C48B 9004105546 9004A10209 9004A16084
Part # Description Qty Price
52135 - GROMMET, REAR BUMPER STAY
9004A-18034

F65#..IDN

 2
9004A-18034

F65#..IDN

 2
52135 - GROMMET, REAR BUMPER STAY
9004A-18034

F65#..IDN

 2
9004A-18034

F65#..IDN

 2
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
55394-60050

F65#..IDN

 2
55394-60050

F65#..IDN

 2
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
55394-60050

F65#..IDN

 2
55394-60050

F65#..IDN

 2
52152C - CLIP, REAR BUMPER SIDE
90044-67567

F65#..IDN

 2
90044-67567

F65#..IDN

 2
52152C - CLIP, REAR BUMPER SIDE
90044-67567

F65#..IDN

 2
90044-67567

F65#..IDN

 2
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-BZ120

F65#..IDN

 1
52155-BZ120

F65#..IDN

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-BZ120

F65#..IDN

 1
52156-BZ120

F65#..IDN

 1
52159 - COVER, REAR BUMPER
52159-BZ140

F65#..(MID,STD)..IDN

 1
52159-BZ140

F65#..(MID,STD)..IDN

 1
52164A - PLATE, REAR BUMPER, LH
52164-BZ130

F65#..(MID,STD)..IDN

 1
52164-BZ130

F65#..(MID,STD)..IDN

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-BZ010

F65#..IDN

 1
52562-BZ010

F65#..IDN

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-BZ010

F65#..IDN

 1
52563-BZ010

F65#..IDN

 1
52599 - STOPPER, REAR BUMPER, UPPER
90044-67499

F65#..IDN

 3
90044-67499

F65#..IDN

 3
Common parts
90041-05546
9004A-10209
9004A-16084
Linked diagrams
8115
8417
