F651RM-GQDFJ (2011)
Toyota Avanza
(1111-1508)K3VE,3SZVE

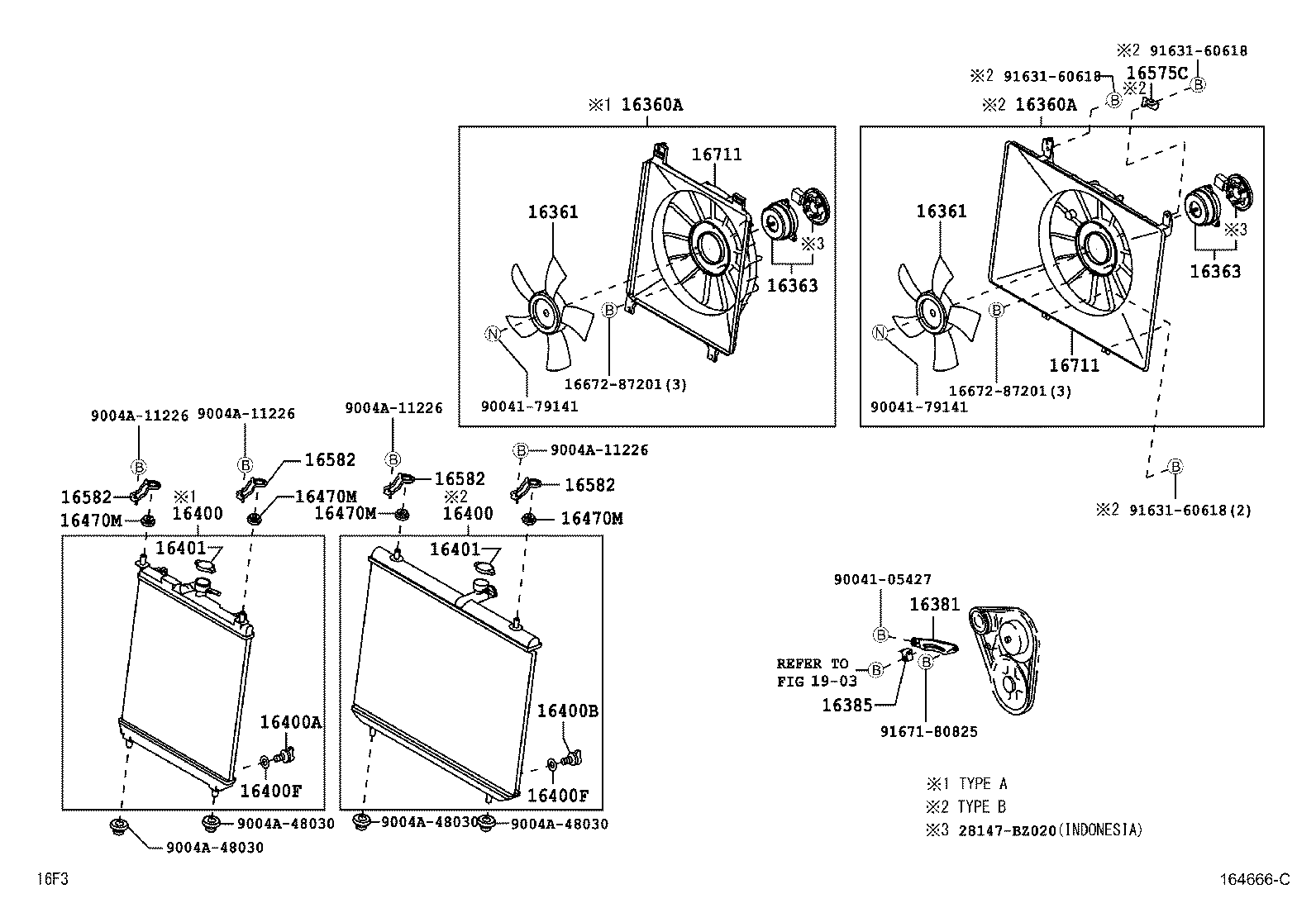

RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ210 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN TYPE B |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ210 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN TYPE B |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ090 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ090 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ100 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ100 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-BZ050 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZ460 |
K3VE,3SZVE..F65#..4AT..IDN TYPE B |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZ460 |
K3VE,3SZVE..F65#..4AT..IDN TYPE B |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-BZ010 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ070 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ070 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ070 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ070 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-BZ050 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-BZ050 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 28147-BZ020 | ||||
| 90041-05427 | ||||
| 90041-79141 | ||||
| 9004A-11226 | ||||
| 9004A-48030 | ||||
| 91631-60618 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||
(1111-1508)K3VE,3SZVE

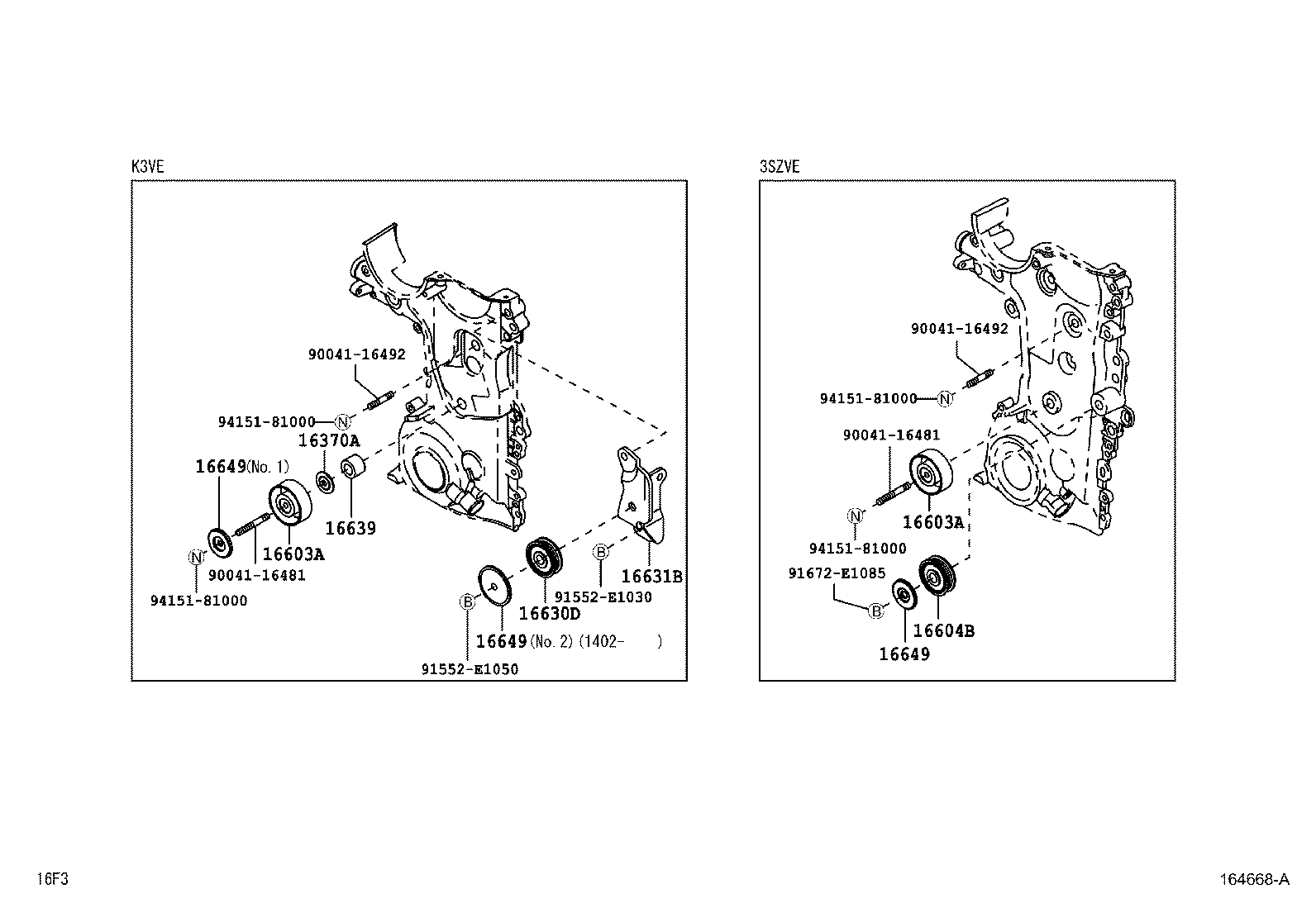

IDLER PULLEY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16370A - PLATE COVER | ||||
| 16659-B0010 |
K3VE..F651..IDN |
1 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-97401 |
K3VE..F651..IDN |
1 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-97401 |
K3VE..F651..IDN |
1 | ||
| 16630D - PULLEY ASSY, IDLER | ||||
| 16630-97402 |
K3VE..F651..IDN |
1 | ||
| 16631B - BRACKET, IDLER PULLEY | ||||
| 16631-BZ011 |
K3VE..F651..IDN |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-BZ022 |
K3VE..F651..IDN |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-BZ030 |
K3VE..F651..IDN NO.2 |
1 | ||
| 16649-B0020 |
K3VE..F651..IDN NO.1 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-BZ030 |
K3VE..F651..IDN NO.2 |
1 | ||
| 16649-B0020 |
K3VE..F651..IDN NO.1 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-BZ030 |
K3VE..F651..IDN NO.2 |
1 | ||
| 16649-B0020 |
K3VE..F651..IDN NO.1 |
1 | ||
| Common parts | ||||
| 90041-16481 | ||||
| 90041-16492 | ||||
| 91552-E1030 | ||||
| 91552-E1050 | ||||
| 91672-E1085 | ||||
| 94151-81000 | ||||

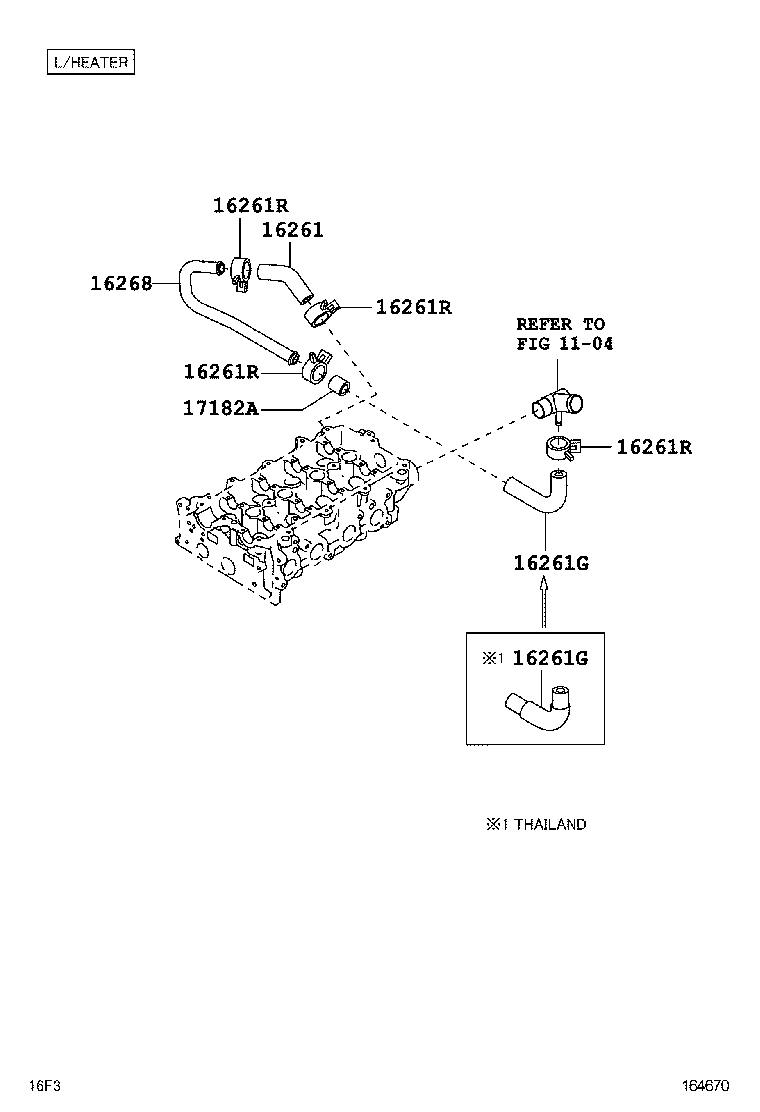

ILLUST NO. 2 OF 2(1111-1508)K3VE,3SZVE..GCC,IDN,MA,PHL,TH
WATER HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ020 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ030 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ030 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67485 |
K3VE,3SZVE..F65#..IDN |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67485 |
K3VE,3SZVE..F65#..IDN |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67485 |
K3VE,3SZVE..F65#..IDN |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67485 |
K3VE,3SZVE..F65#..IDN |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-BZ010 |
K3VE..F651..IDN |
1 | ||
| 17182A - ORIFICE, WATER | ||||
| 17182-BZ020 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||

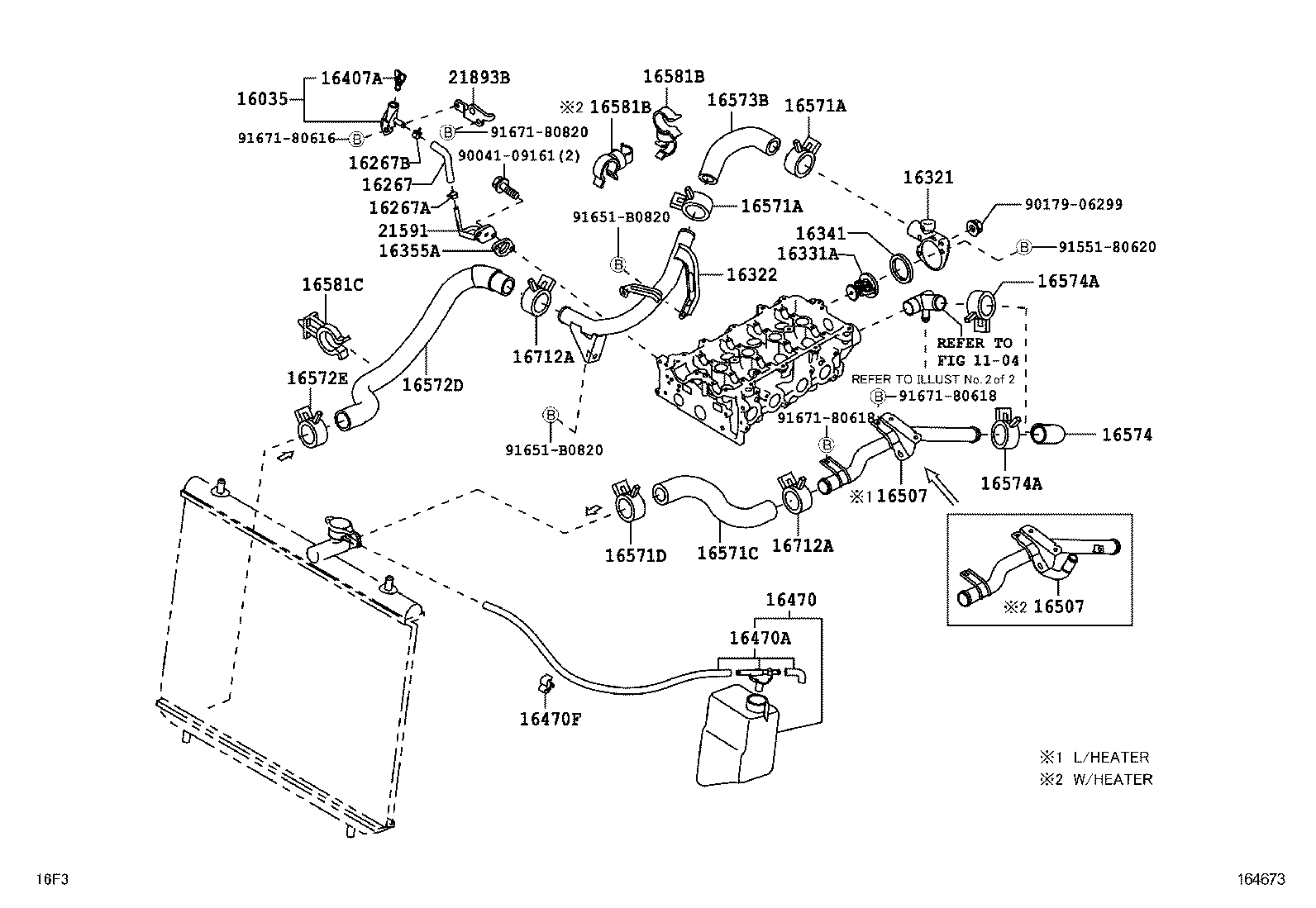

ILLUST NO. 1 OF 2(1111-1508)K3VE,3SZVE
WATER HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16035 - JOINT, WATER HOSE | ||||
| 16035-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90044-67029 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67400 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-BZ050 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33088 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16258-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-BZ020 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ130 |
K3VE,3SZVE..F65# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16503-BZ070 |
K3VE,3SZVE..F65# |
1 | ||
| 16470F - CLAMP, RADIATOR RESERVE TANK HOSE | ||||
| 90044-64563 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ050 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ050 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-BZ100 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-34004 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-BZ100 |
3SZVE..F652;K3VE..F651..4AT;K3VE..F651..5F..GEN |
1 | ||
| 16572-BZ260 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
3SZVE..F652..IDN;K3VE..F651..4AT..IDN |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90044-64881 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90044-64881 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 9004A-46292 |
K3VE,3SZVE..F65# |
1 | ||
| 16712A - CLIP | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 16712A - CLIP | ||||
| 90044-67473 |
K3VE,3SZVE..F65#..IDN |
2 | ||
| 21591 - PLATE, WATER BY-PASS | ||||
| 21591-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| 21893B - BRACKET | ||||
| 21893-BZ010 |
K3VE,3SZVE..F65#..IDN |
1 | ||
| Common parts | ||||
| 90041-09161 | ||||
| 90179-06299 | ||||
| 91551-80620 | ||||
| 91651-B0820 | ||||
| 91671-80616 | ||||
| 91671-80618 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
