F651RM-GQDFJ (2011)

Toyota Avanza

Production Nov 2011 - Jul 2015
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1901)

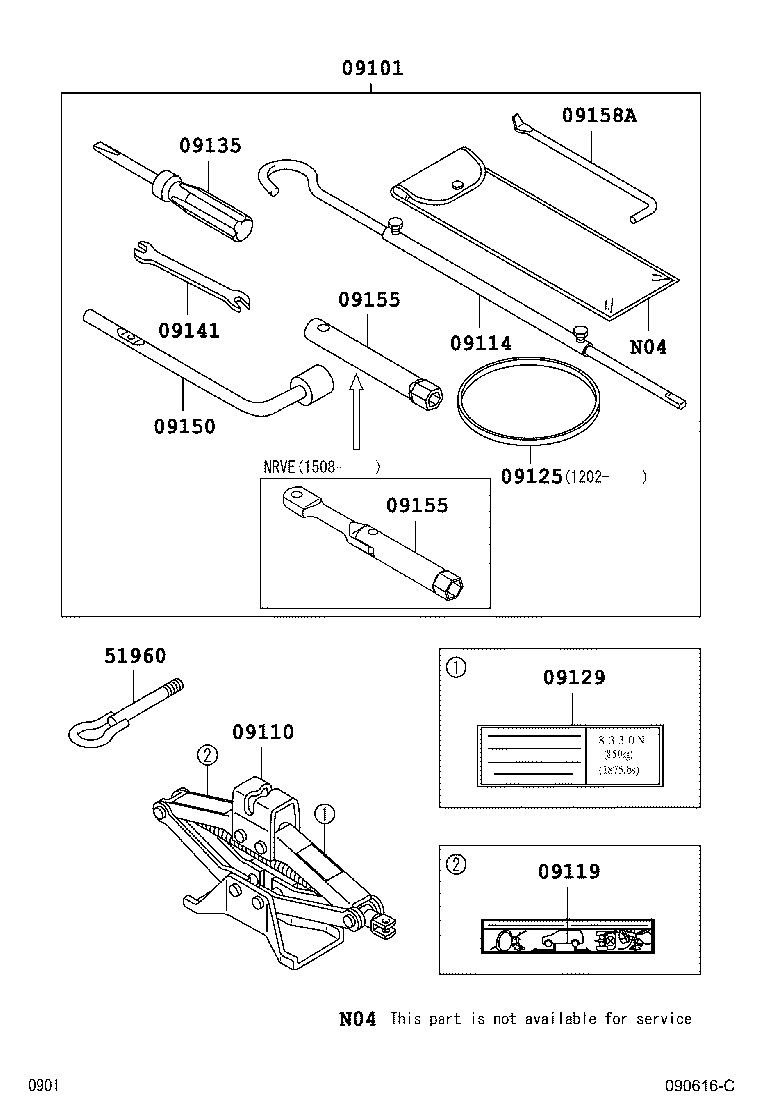

Click highlighted areas on diagram

diagram 09101 09110 09114 09119 09125 09129 09135 09141 09150 09155 09155 09158A 51960
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-BZ010

F65#..IDN

 1
09110 - JACK ASSY
09111-BZ200

F65#..IDN

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-87Z02

F65#..IDN

 1
09119 - LABEL, JACK CAUTION
09119-BZ100

F65#..IDN

 1
09125 - BAND, TOOL BAG
09125-BZ010

F65#..IDN

 2
09129 - LABEL, JACK CAUTION
09119-BZ020

F65#..IDN

 1
09135 - DRIVER, SCREW
09135-87Z10

F65#..IDN

 1
09141 - SPANNER
09141-87Z11

F65#..IDN

10 X 12

 1
09150 - WRENCH, HUB NUT BOX
09150-87Z01

F65#

 1
09150-BZ040

F65#..IDN

 1
09155 - WRENCH, SPARK PLUG
09155-BZ010

F65#..IDN

 1
09155 - WRENCH, SPARK PLUG
09155-BZ010

F65#..IDN

 1
09158A - HANDLE, SPARK PLUG WRENCH
09158-87Z04

F65#..IDN

 1
51960 - HOOK ASSY, FRONT
51960-BZ050

F65#..IDN

 1
