F602RM-GQMFMM (2006)

Toyota Avanza

Production Sep 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0810- )F602..4AT..E,GL,S ; (0810- )4AT..G,XI..GEN,IDN,PHL ; (0811- )G..MA

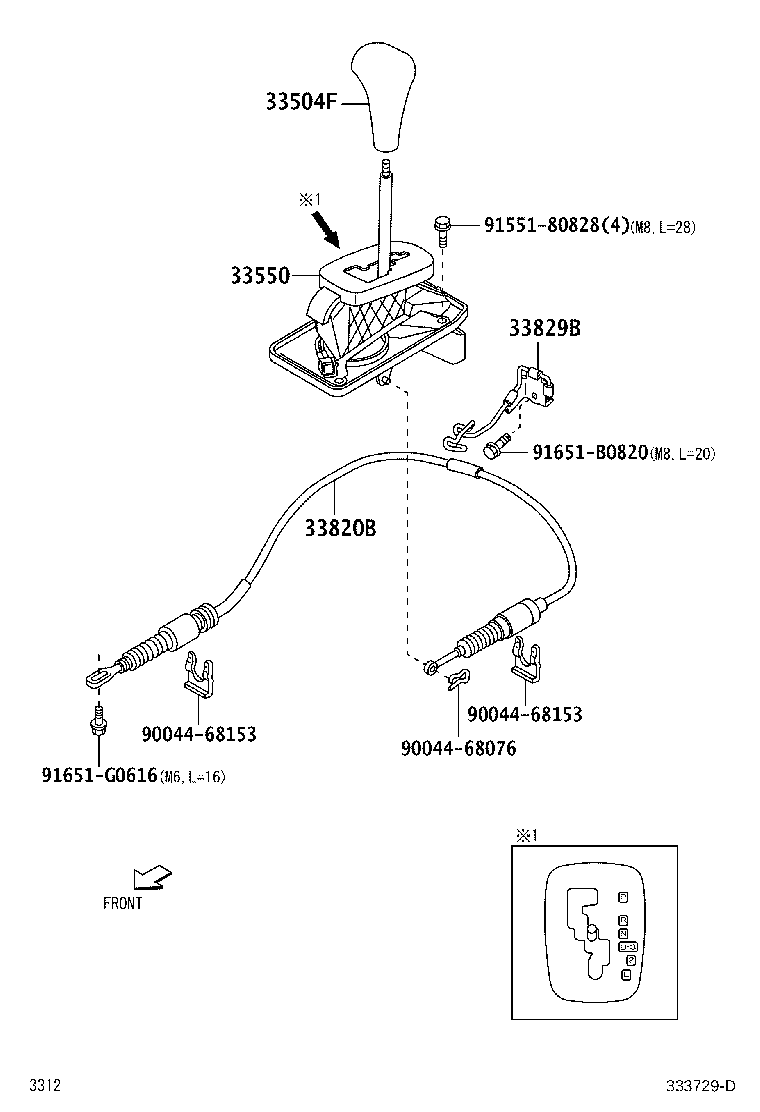

Click highlighted areas on diagram

diagram 33504F 33550 33820B 33829B 9004468076 9004468153 9004468153 9155180828 91651B0820 91651G0616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-BZ110E0

F602..4AT..(E,GL);F602..4AT..S..(GEN,IDN,MA);F60#..4AT..(G,XI)..(GEN,IDN,PHL)

ASH BROWN,TRIM4#

 1
33504-BZ110B0

F602..S..TH;F602..(E,S)..MA

DK.GRAY,TRIM1#

 1
33504-BZ110B0

F602..G..MA

DK.GRAY,TRIM1#

 1
33504-BZ110E0

F602..G..MA

ASH BROWN,TRIM4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-BZ040

F602..G..MA

W/O SHIFT LOCK

 1
33550-B0070E0

F602..MA

SANDAL WOOD,TRIM0#

 1
33550-BZ040

F602..4AT..(G,S)..(PHL,TH);F602..4AT..(E,GL,S)..(GEN,IDN,MA,MXC)

W/O SHIFT LOCK

 1
33550-BZ130

F602..RHD..4AT..(GEN,IDN,MA);F602..4AT..(G,GL,S)..(MXC,PHL,TH)

W/SHIFT LOCK

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-B0030

F602..MA

 1
Common parts
90044-68076
90044-68153
91551-80828
91651-B0820
91651-G0616
